LUBRICATING OIL PUMP AND PIPING

Запчасти Bobcat 100 LUBRICATING OIL PUMP AND PIPING LUBRICATING OIL SYSTEM

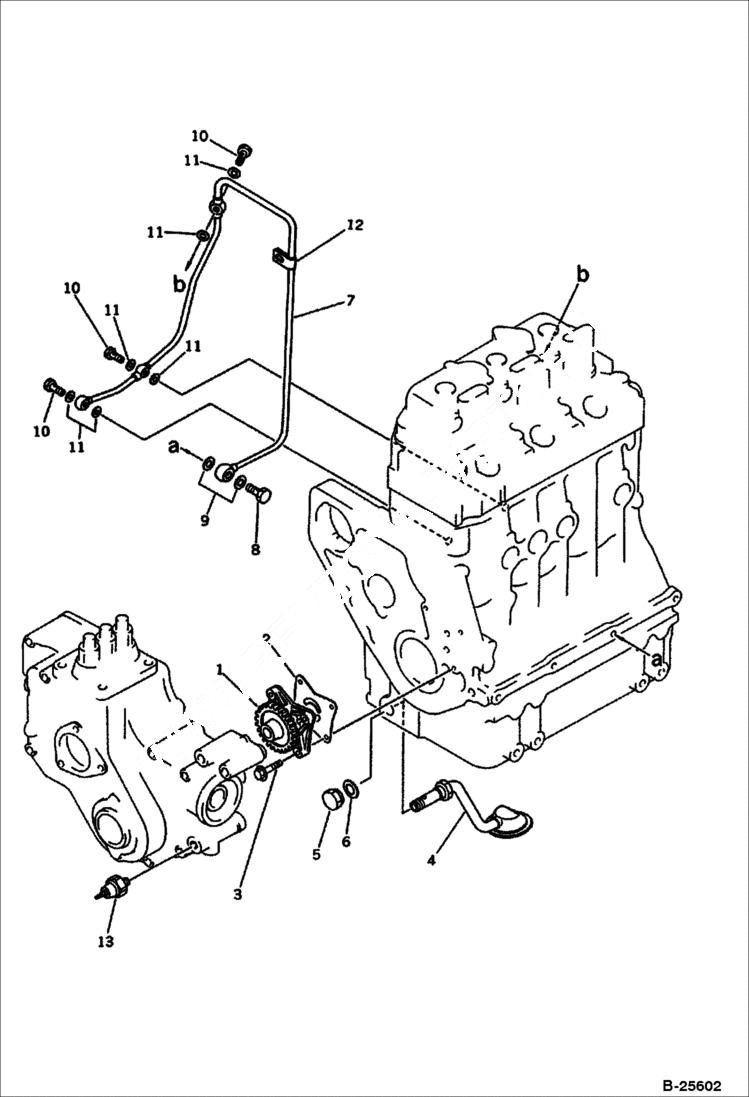

Схема запчастей Bobcat 100 - LUBRICATING OIL PUMP AND PIPING LUBRICATING OIL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6641004

PUMP ASY

2

6640943

PACKING

3

6641963

BOLT

4

PIPE inlet - Komatsu S/N 35226 & Abv. - Was YM129335-35090

4

6641923

PIPE inlet - Komatsu S/N 25919-35225

5

6640951

NUT

6

6640952

GASKET

7

6641924

TUBE

8

6636598

BOLT

9

6636809

PACKING

10

6636616

BOLT

11

6636807

PACKING

12

6636606

CLIP

13

6636599

SWITCH oil pressure
