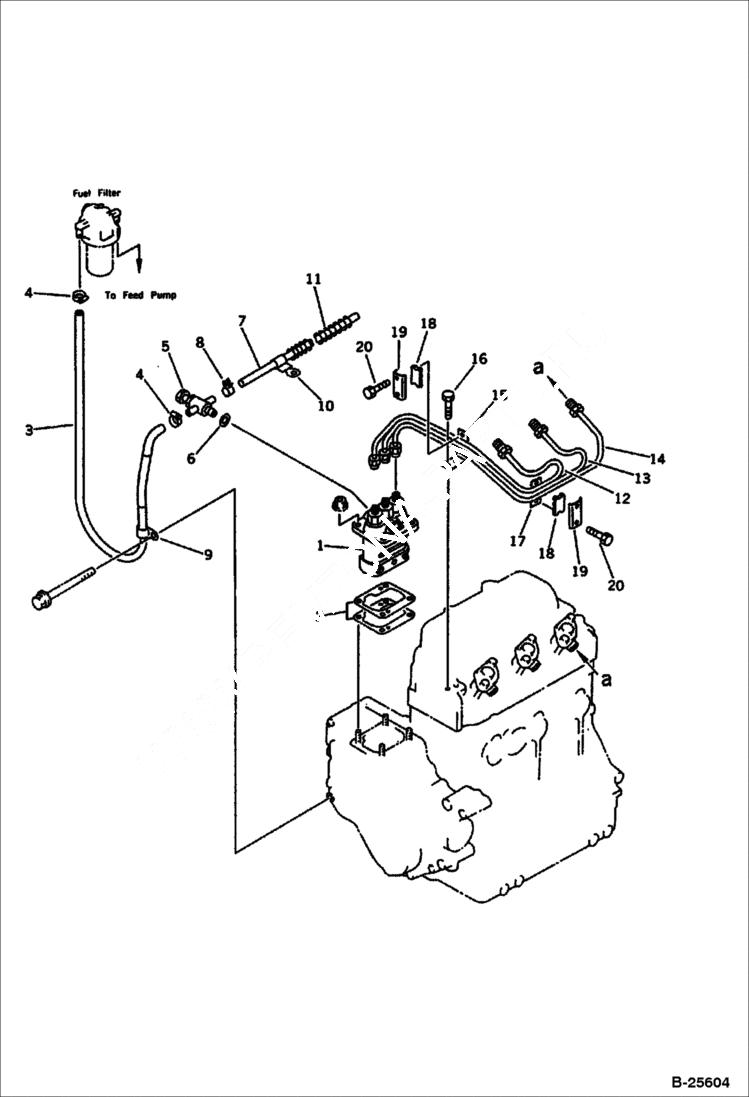

Запчасти Bobcat 100 FUEL INJECTION PUMP AND PIPING FUEL SYSTEM

1

6649230

FUEL PUMP See Illustration FUEL INJECTION PUMP/ B25609

2

6640940

SHIM ASSY

3

6641845

HOSE

4

6636803

CLAMP

5

6657061

BOLT

6

6636327

PACKING

7

TUBE Was YM23061-060500

8

6636590

CLIP

9

6636593

CLAMP

10

CLAMP Was YM105430-67110

11

SPRING Was YM124060-59101

12

6641908

PIPE injection - No. 1

13

6641907

PIPE injection - No. 2

14

6641906

PIPE injection - No. 3

15

6641837

BRACKET

16

6641976

BOLT

17

6636556

SHIELD

18

6636580

SHIELD spacer

19

6636581

COVER

20

6641848

BOLT
