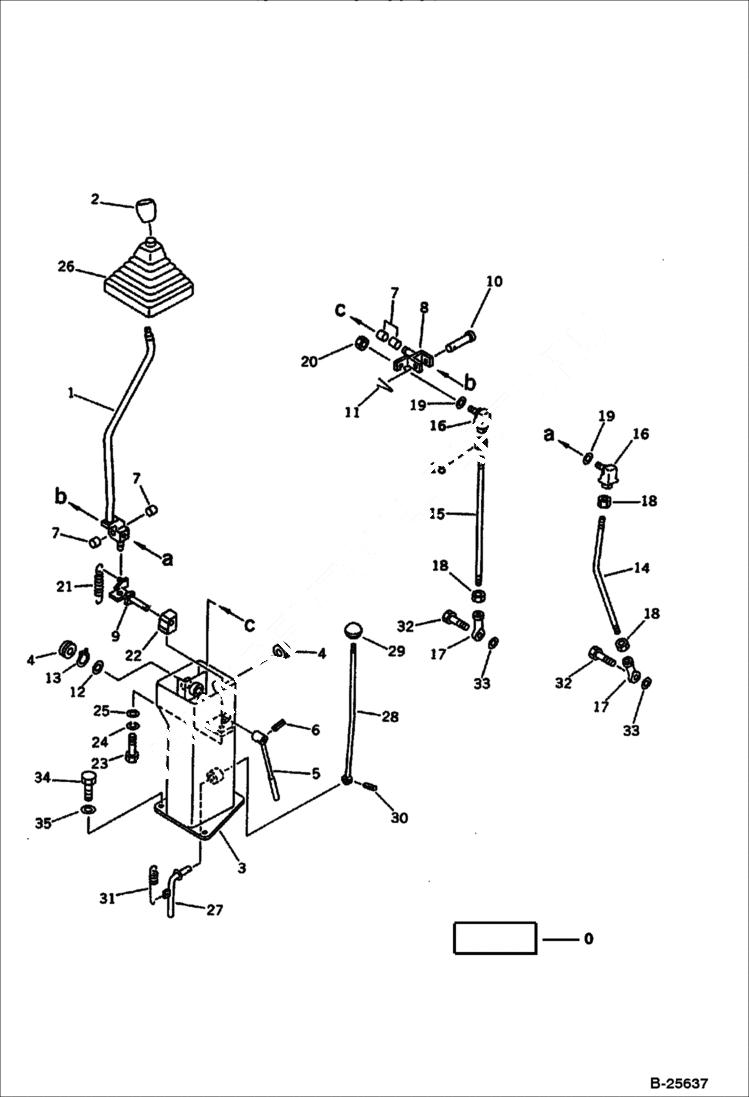

Запчасти Bobcat 100 WORK EQUIPMENT CONTROL LEVER (1/2) (FOR I.S.O. PATTERN) Komatsu S/N 13025 & Abv. CONTROL SYSTEM AND REVOLVING FRAME

0

STAND GROUP, L.H. Was 20S-43-X1100

1

6667816

LEVER L.H.

2

6649139

KNOB

3

STAND Was 20S-43-33110

4

6637758

CAP

5

6638740

LEVER

6

6637188

PIN, ROLL

7

6639170

BUSHING

8

YOKE Was 20S-43-33150

9

LEVER, L.H. Was 20S-43-33170

10

6637262

PIN

11

6637203

PIN, COTT

12

6637148

WASHER

13

6637217

SNAP RING

14

ROD Was 20S-43-33160

15

6637285

ROD

16

6639406

CONNECTOR

17

6637307

END rod

18

6637113

NUT

19

6637157

WASHER

20

6637113

NUT

21

6637849

SPRING

22

6638737

BLOCK

23

6636959

BOLT

24

6637134

WASHER

25

6637156

WASHER

26

6639733

BOOT

27

LEVER Was 20S-43-31191

28

LEVER Was 20S-43-33191

29

6638566

KNOB

30

6637188

PIN, ROLL

31

SPRING Was 10E-43-12650

32

6636969

BOLT

33

6637157

WASHER

34

6636980

BOLT

35

6637158

WASHER
