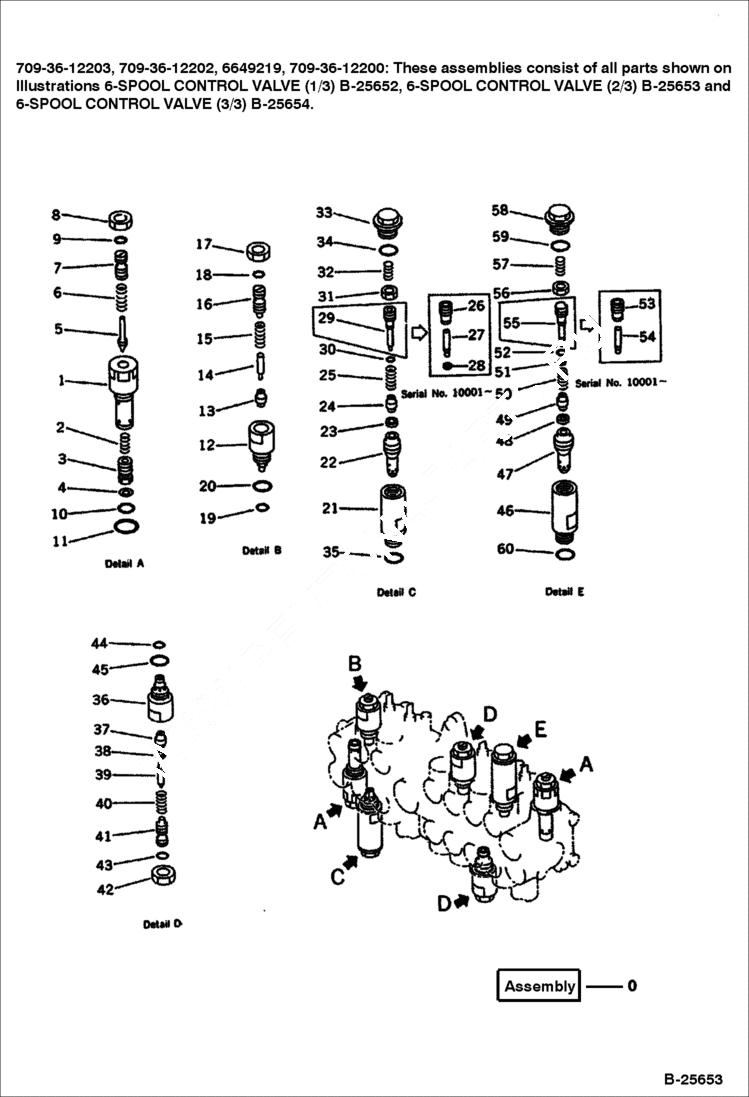

Запчасти Bobcat 100 6-SPOOL CONTROL VALVE (2/3) WORK EQUIPMENT CONTROL SYSTEM

0

VALVE ASS'Y Was 709-36-12203

0

VALVE ASS'Y Komatsu S/N 11655-12575 - Was 709-36-12202

0

6649219

VALVE ASY Komatsu S/N 10065-11654

0

VALVE ASS'Y Komatsu S/N 10001-10064 - Was 709-36-12200

1

6669709

REL VALVE main relief

2

6640220

SPRING

3

VALVE

4

6640217

RING

5

6640258

POPPET

6

6640219

SPRING

7

6640218

SCREW

8

6637115

NUT

9

6637335

O-RING

10

6640243

O-RING

11

6637411

O-RING

12

6640566

VALVE ASSY safety

13

POPPET

14

PISTON

15

SPRING

16

SCREW

17

NUT

18

O-RING

19

6640585

O-RING

20

6637410

O-RING

20

6654899

VALVE ASY suction and safety

20

VALVE ASS'Y suction and safety - Was 709-30-63201

20

6640562

VALVE ASY suction and safety

21

6640555

SLEEVE

22

VALVE

23

SEAL

24

POPPET

25

SPRING

26

SCREW

27

PISTON

28

SEAL

29

PISTON

30

O-RING

31

NUT

32

6640221

SPRING

33

6640556

PLUG

34

6637417

O-RING

35

6637410

O-RING

36

VALVE ASS'Y SAFETY Was 709-30-66200

37

POPPET

38

SEAL

39

PISTON

40

SPRING

41

SCREW

42

NUT

43

O-RING

44

6640585

O-RING

45

6637410

O-RING

45

6654899

VALVE ASY suction and safety

45

VALVE ASS'Y suction and safety - Komatsu S/N 11655-12575 - Was 709-30-63601

45

VALVE ASS'Y (suction and safety) - Komatsu S/N 10001-11654 - Was 709-30-63600

46

6640555

SLEEVE

47

VALVE

48

SEAL

49

POPPET

50

SPRING

51

SEAL

52

O-RING

53

SCREW

54

PISTON

55

PISTON

56

NUT

57

6640221

SPRING

58

6640556

PLUG

59

6637417

O-RING

60

6637410

O-RING
