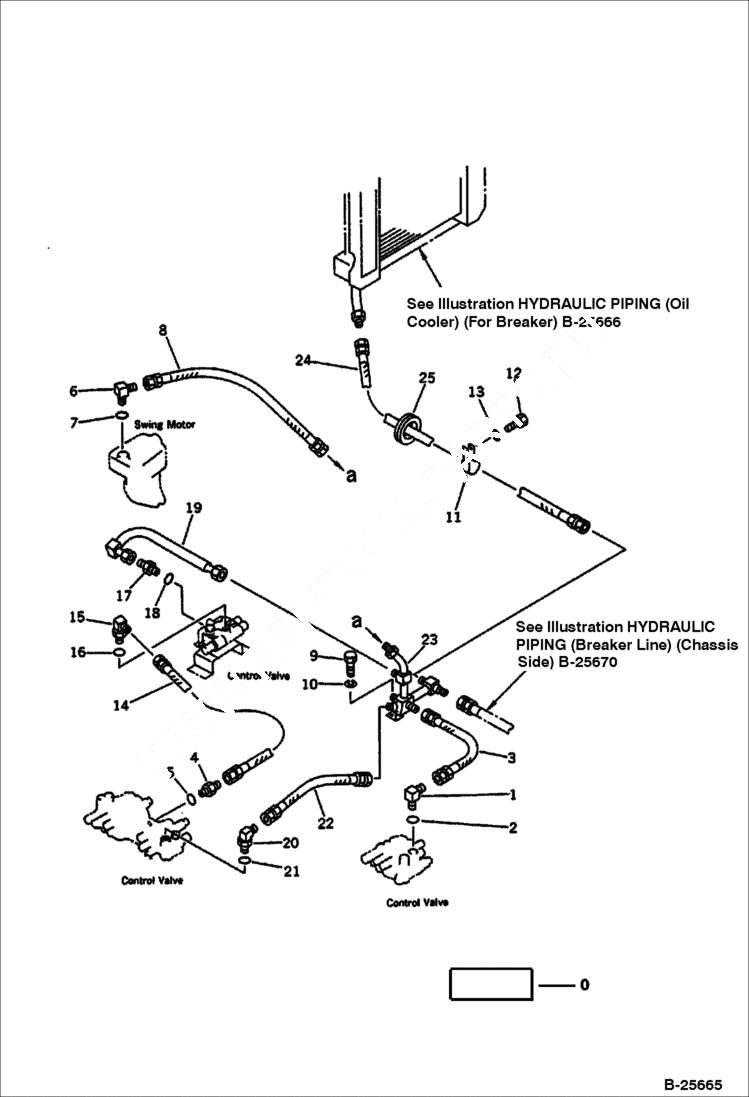

Запчасти Bobcat 100 HYDRAULIC PIPING (RETURN) (FOR BREAKER) WORK EQUIPMENT CONTROL SYSTEM

0

HYDRAULIC PIPING GROUP (for breaker) - Was 20S-970-X190

1

6639895

ELBOW

2

6637410

O-RING

3

HOSE Was 07102-20504

4

UNION Was 20S-62-31340

5

6637410

O-RING

6

ELBOW Was 201-62-21650

7

6637410

O-RING

8

HOSE Was 07102-20504

9

6636967

BOLT

10

6637135

WASHER

11

6639903

CLIP

12

6636966

BOLT

13

6637135

WASHER

14

6650232

HOSE

15

6637590

ELBOW

16

6637418

O-RING

17

6637583

NIPPLE union

18

6637411

O-RING

19

6650235

TUBE

20

6650233

ELBOW

21

6637417

O-RING

22

6637502

HOSE

23

6650234

TUBE

24

6654110

HOSE

25

6637706

GROMMET
