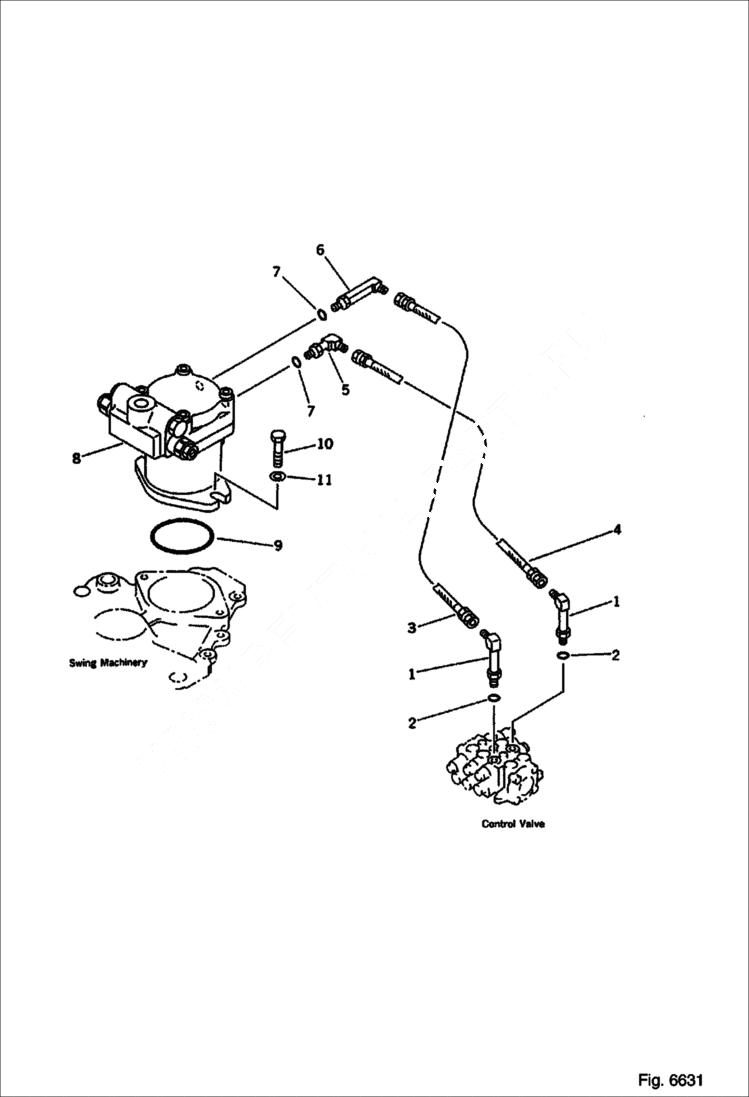

Запчасти Bobcat 100 HYDRAULIC PIPING (SWING MOTOR LINE) (FOR I.S.O. PATTERN) WORK EQUIPMENT CONTROL SYSTEM

1

6639571

ELBOW

2

6637415

O-RING

3

HOSE Komatsu S/N 12485 & Abv. - Was 20S-62-31630

3

6654097

HOSE Komatsu S/N 10001-12484

4

HOSE Komatsu S/N 12485 & Abv. - Was 20S-62-31640

4

HOSE Komatsu S/N 10001-12484 - Was 20T-62-31450

5

6638577

ELBOW

6

ELBOW Was 20B-62-12350

7

6637417

O-RING

8

MOTOR ASS'Y See Illustration SWING MOTOR (1/2)/ B25660 Komatsu S/N 11655 & Abv. - Was 708-7T-00032

8

6649379

SWING ASY See Illustration SWING MOTOR (1/2)/ B25660 Komatsu S/N 10001-11654

9

6637349

O-RING

10

6636981

BOLT

11

6637158

WASHER
