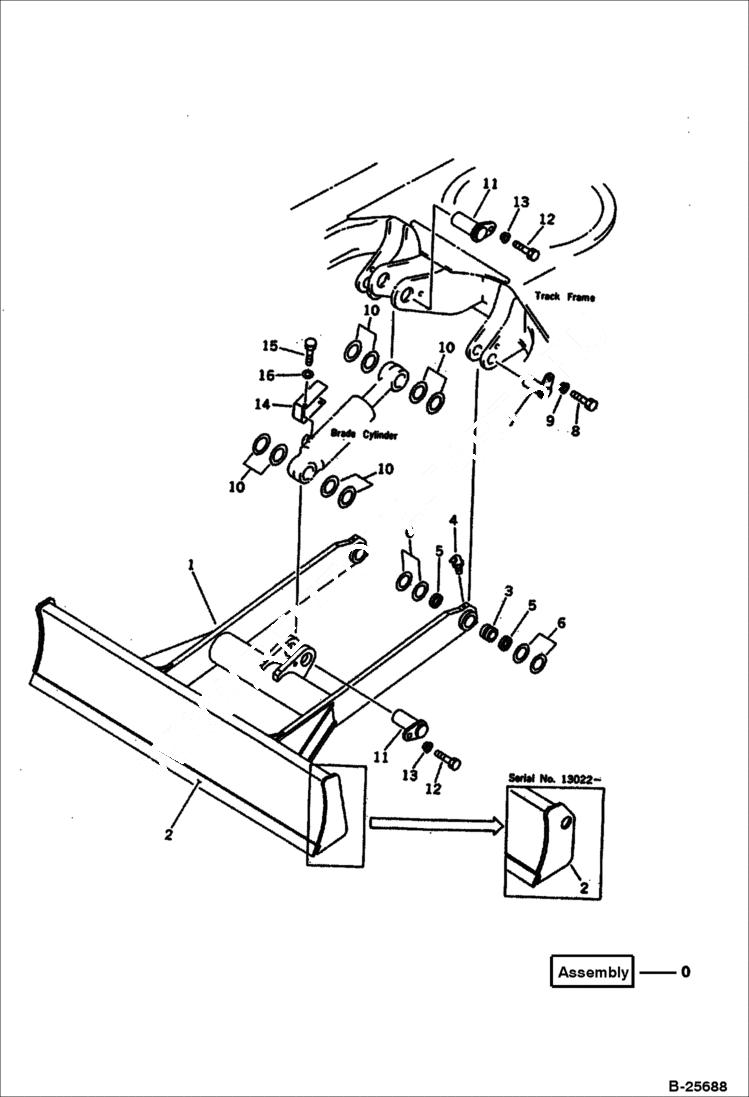

Запчасти Bobcat 100 BLADE WORK EQUIPMENT

0

BLADE ASS'Y Komatsu S/N 13025 & Abv. - Was 20S-71-00061

0

BLADE ASS'Y Komatsu S/N 10001-13024 - Was 20S-71-00060

1

BLADE ASS'Y

2

6638921

EDGE cutting - welded

3

6637526

BUSHING

4

6637431

FITTING

5

6637532

SEAL, DUST

6

6638598

SPACER 1.0mm

6

6638919

SHIM 2.3mm

7

PIN Was 20S-71-31221

8

6636979

BOLT

9

SPACER Was 20S-70-31180

10

6639121

SHIM 1.0mm

10

SPACER 2.3mm - Was 20S-70-31250

11

PIN Was 20S-71-31211

12

6636979

BOLT

13

SPACER Was 20S-70-31190

14

COVER Was 20S-71-31310

15

6636966

BOLT

16

6637157

WASHER
