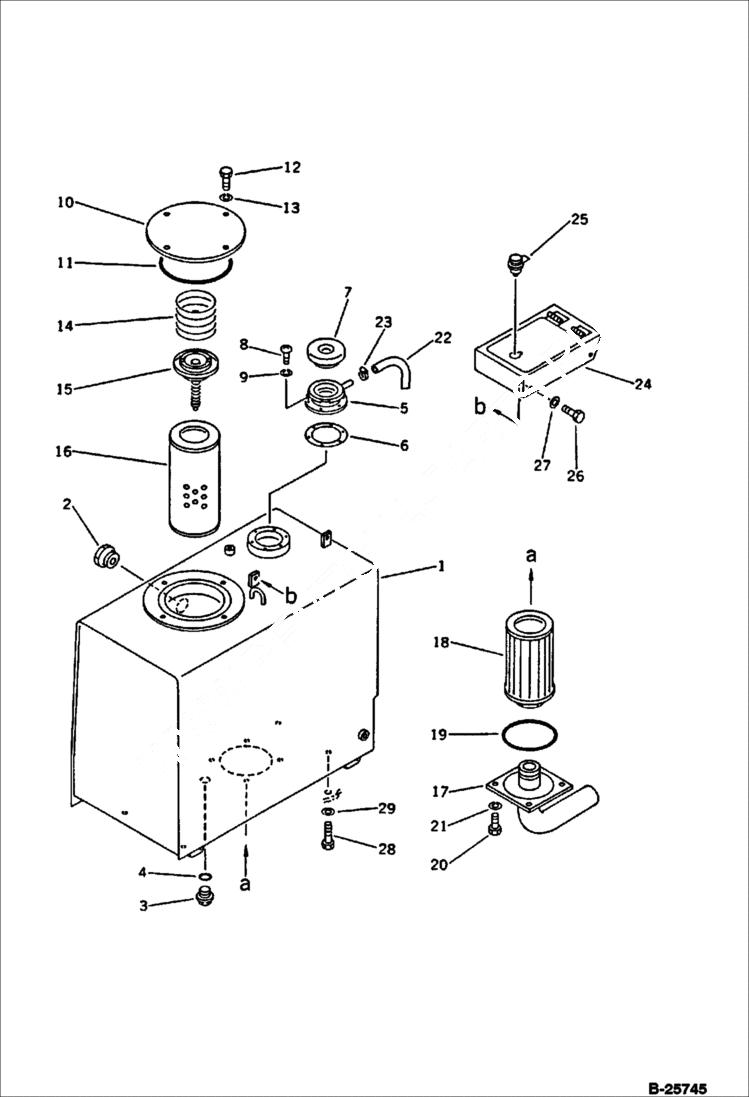

Запчасти Bobcat 116 HYDRAULIC TANK FOR VANDALISM PROTECTION WORK EQUIPMENT CONTROL SYSTEM

1

TANK ASS'Y Was 20T-60-00300

1

TANK Was 20T-60-33110

2

6638333

GAUGE, OIL

3

6637453

PLUG

4

6637411

O-RING

5

6639394

GASKET

6

6639082

INLET, NE filler - neck

7

CAP ASS'Y Was 201-60-12140

8

6637033

SCREW

9

6637126

WASHER

10

6638809

COVER

11

6637353

O-RING

12

6636967

BOLT

13

6637135

WASHER

14

6637859

SPRING

15

6637858

VALVE ASSY

16

6637477

FILTER

17

6639542

TUBE

18

6639870

STRAINER

19

6637351

O-RING

20

6636966

BOLT

21

6637135

WASHER

22

TUBE Was 07270-00835

23

6637616

CLAMP

24

6642943

COVER

25

6639396

LOCK ASSY

26

6636966

BOLT

27

6637157

WASHER

28

6636979

BOLT

29

6637158

WASHER
