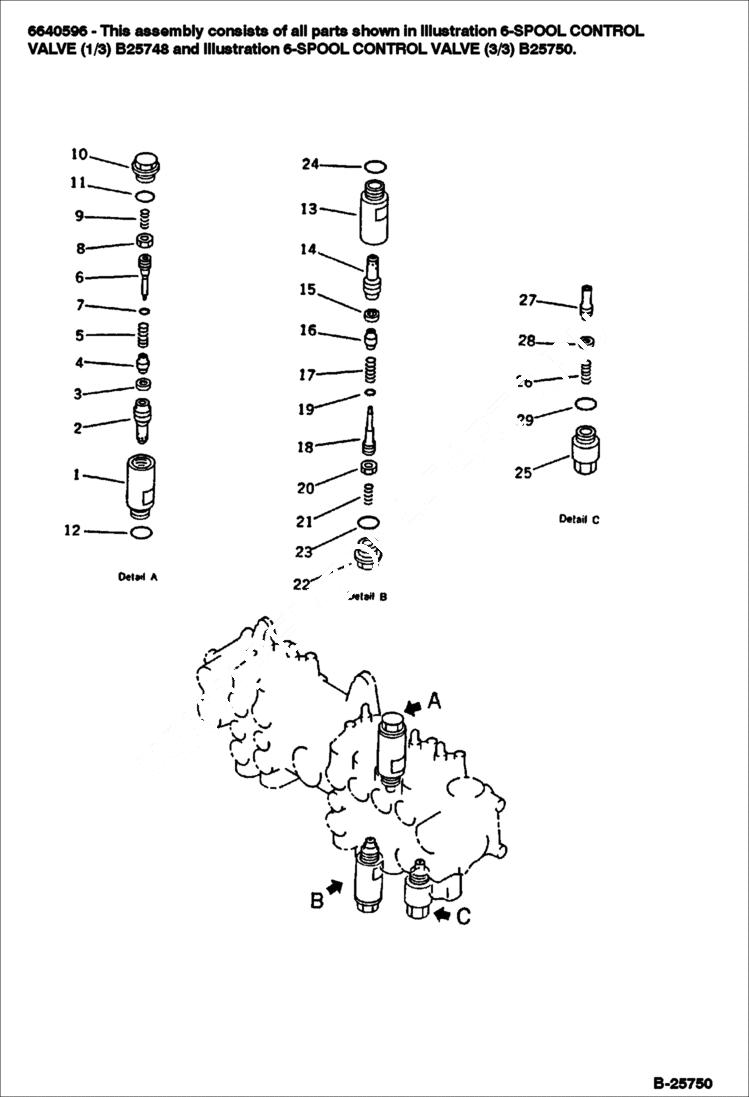

6-SPOOL CONTROL VALVE (3/3)

Запчасти Bobcat 116 6-SPOOL CONTROL VALVE (3/3) WORK EQUIPMENT CONTROL SYSTEM

Схема запчастей Bobcat 116 - 6-SPOOL CONTROL VALVE (3/3) WORK EQUIPMENT CONTROL SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6640596

VALVE ASSEMBLY See Illustration 6-SPOOL CONTROL VALVE (2/3)/ B25749 See Illustration 6-SPOOL CONTROL VALVE (1/3)/ B25748

1

6640563

VALVE ASSEMBLY suction & safety

1

6640555

SLEEVE suction & safety

2

6643224

VALVE suction & safety

3

6640226

SEAL suction & safety

4

6643225

POPPET suction & safety

5

6643227

SPRING suction & safety

6

6643226

SCREW suction & safety

7

6642082

O-RING suction & safety

8

6643194

NUT suction & safety

9

6640221

SPRING suction & safety

10

6640556

PLUG suction & safety

11

6637417

O-RING suction & safety

12

6637410

O-RING suction & safety

13

6640559

VALVE ASY suction & safety

13

6640555

SLEEVE suction & safety

14

6643224

VALVE suction & safety

15

6640226

SEAL suction & safety

16

6643225

POPPET suction & safety

17

6643227

SPRING suction & safety

18

6643226

SCREW suction & safety

19

6642082

O-RING suction & safety

20

6643194

NUT suction & safety

21

6640221

SPRING suction & safety

22

6640556

PLUG suction & safety

23

6637417

O-RING suction & safety

24

6637410

O-RING suction & safety

25

6640551

VALVE ASY suction

25

6640552

SLEEVE

26

6640221

SPRING

27

6640553

VALVE

28

6640554

SEAL

29

6637410

O-RING
