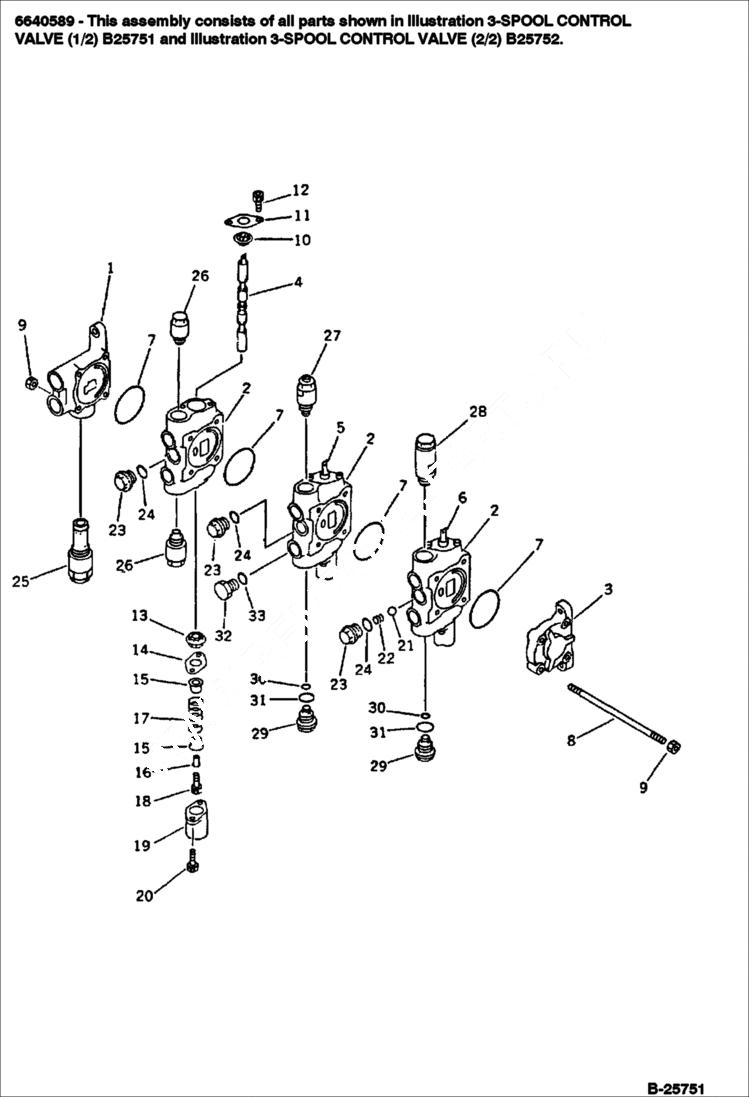

Запчасти Bobcat 116 3-SPOOL CONTROL VALVE (1/2 WORK EQUIPMENT CONTROL SYSTEM

1

6651246

VALVE See Illustration 3-SPOOL CONTROL VALVE (2/2/ B25752

1

6641931

BODY

1

6640571

BLOCK

2

6640572

BLOCK

3

COVER Was 709-32-11160

4

6641851

SPOOL swing

5

6641823

SPOOL travel speed

6

6640573

SPOOL blade

7

6637375

O-RING

8

6640590

STUD

9

6637107

NUT

10

6640575

SEAL dust

11

6640576

SHIELD

12

6637049

BOLT

13

6640575

SEAL dust

14

6640576

SHIELD

15

6640577

RETAINER

16

6640578

COLLAR

17

6640580

SPRING

18

6637051

BOLT

19

6640579

COVER

20

6637050

BOLT

21

6637318

BALL

22

6640583

SPRING

23

6640582

PLUG

24

6637415

O-RING

25

6643198

VALVE, RE main relief

26

6640551

VALVE ASY suction

27

6643235

VALVE ASY safety

28

6640562

VALVE ASY suction & safety

29

6640584

PLUG suction & safety

30

6640585

O-RING suction & safety

31

6637410

O-RING suction & safety

32

6637436

PLUG suction & safety

33

6637415

O-RING suction & safety
