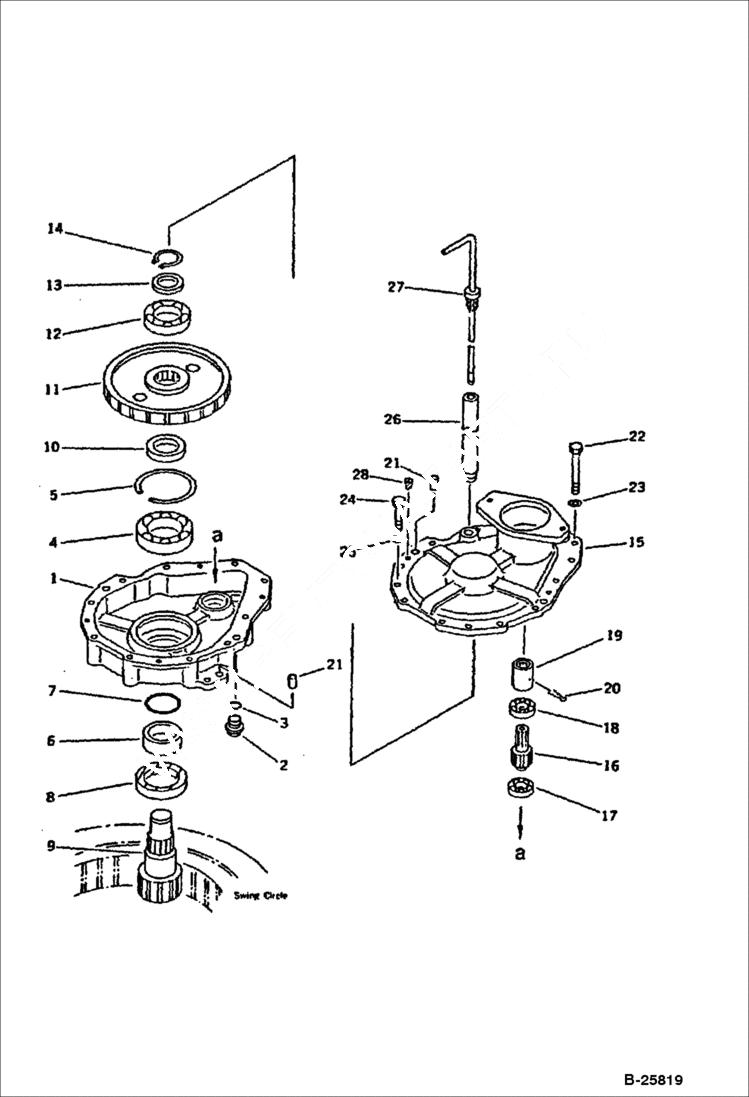

Запчасти Bobcat 116 SWING MACHINERY SWING AND FINAL DRIVE

1

6639411

HOUSING case - lower

2

6637453

PLUG

3

6637411

O-RING

4

6637323

BEARING

5

6637238

RING, SNA

6

6639414

COLLAR

7

6637344

O-RING

8

6637427

SEAL, OIL

9

6639412

SHAFT

10

6639413

COLLAR

11

6639415

GEAR

12

6637330

BEARING

13

6638549

COLLAR

14

6637224

RING, SNA

15

CASE, UPPER Was 20T-26-41110

16

SHAFT Was 20T-26-41220

17

6637326

BEARING

18

6637329

BEARING

19

COUPLING Was 20T-26-41210

20

6637209

PIN, COTT

21

6637178

PIN, DOWEL

22

6637005

BOLT

23

6637158

WASHER

24

6636969

BOLT

25

6637157

WASHER

26

6639005

INLET

27

6639006

OIL GAUGE

28

6637465

PLUG
