FLYWHEEL AND FLYWHEEL HOUSING

Запчасти Bobcat 116 FLYWHEEL AND FLYWHEEL HOUSING CYLINDER BLOCK

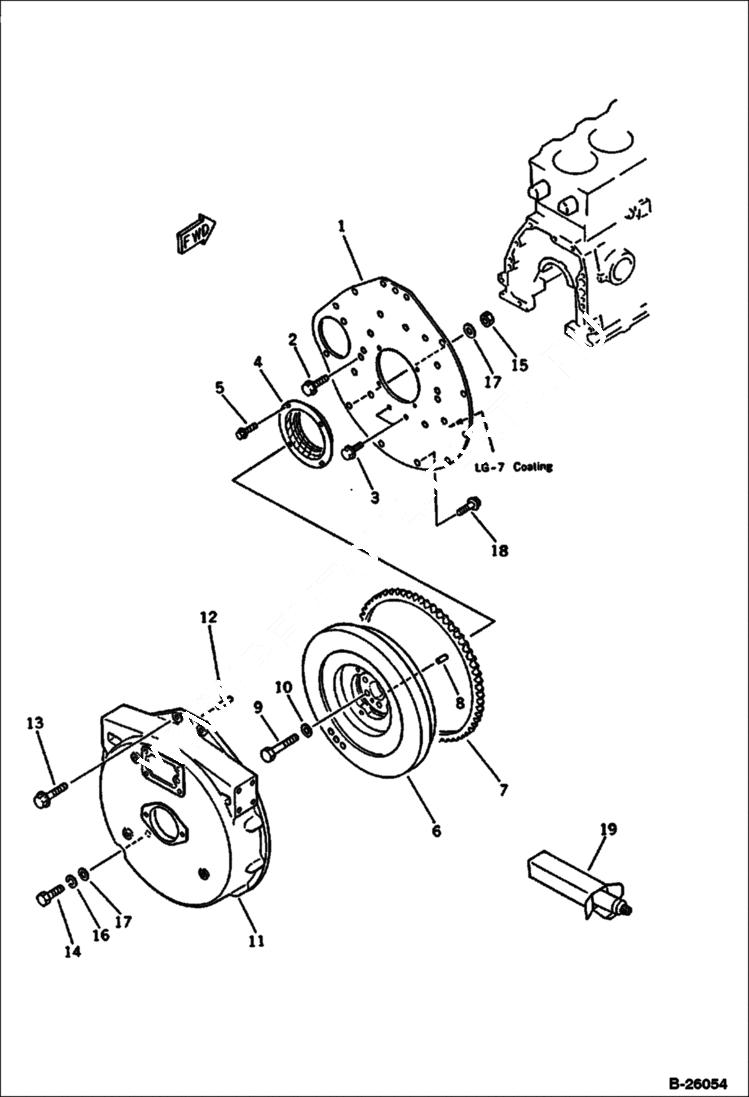

Схема запчастей Bobcat 116 - FLYWHEEL AND FLYWHEEL HOUSING CYLINDER BLOCK
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6639996

SHIELD

2

6637069

BOLT

3

6637066

BOLT

4

6639997

SEAL rear (K2)

5

6637074

BOLT

6

6644838

FLYWHEEL assembly

6

6646045

FLYWHEEL

7

6640028

GEAR

8

6637175

PIN, DOWEL

9

6637014

BOLT

10

6639944

SHIELD washer

11

6644836

HOUSING flywheel

12

6637176

PIN, DOWEL

13

6637071

BOLT

14

6637016

BOLT

15

6637112

NUT

16

6637129

WASHER

17

6637147

WASHER

18

6637069

BOLT

19

6642174

GASKET liquid - LG-7, 150G
