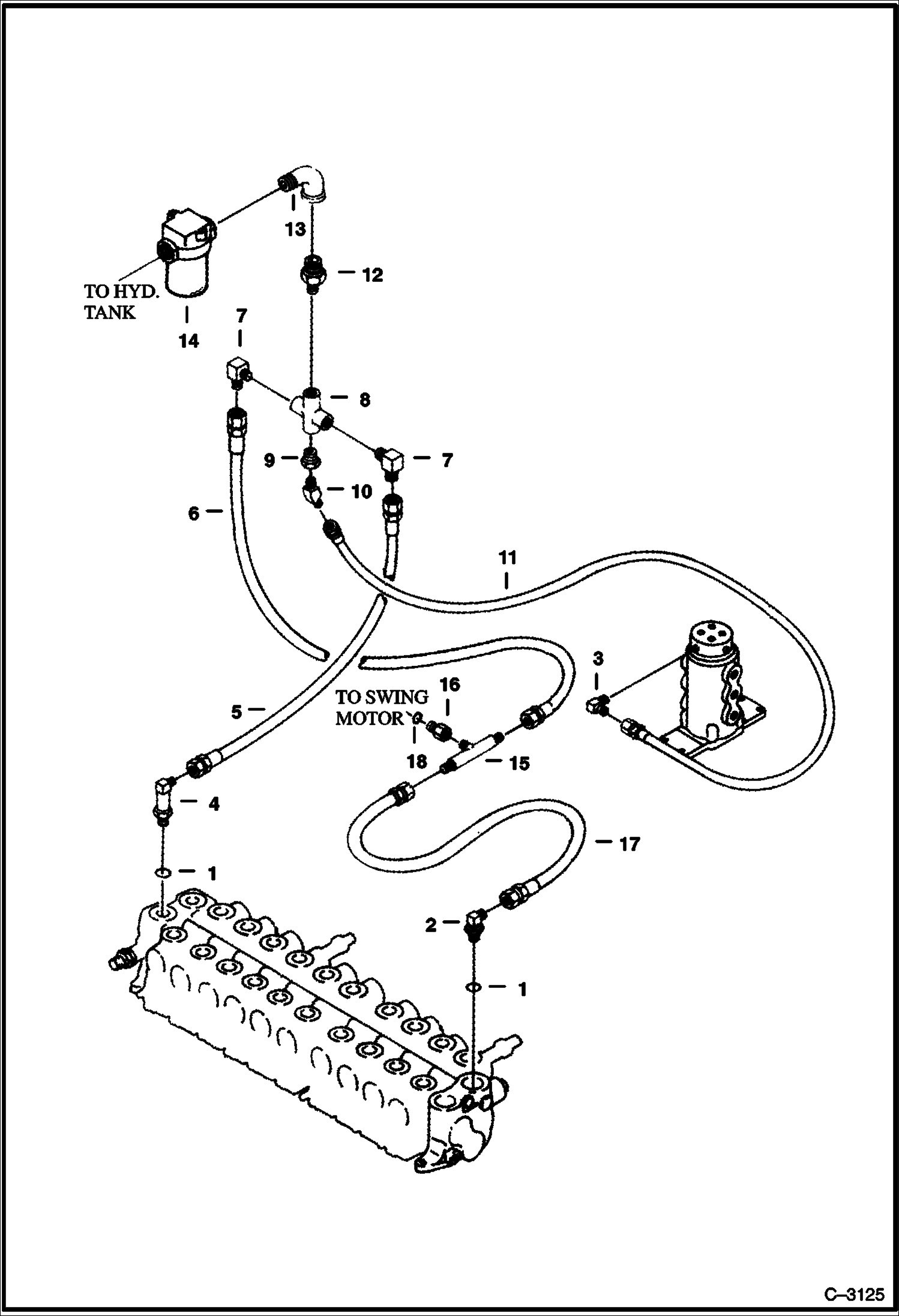

Запчасти Bobcat 220 HYDRAULIC CIRCUITRY (Valve to Tank) (S/N 508211001-11308) HYDRAULIC SYSTEM

1

79K8

O RING 10 Was 6535126 - A

2

ELBOW NLA - W/Ref. 1 - Was 6535127 - A

3

6535066

ELBOW See Ill. B14154 for fitting if swivel joint has been changed to P/N 6664409

4

6535128

ELBOW W/Ref. 1

5

6535129

HOSE

6

6535130

HOSE

7

6535131

ELBOW

8

6535132

CROSS

9

6535133

ADAPTER

10

6535134

ELBOW

11

6535135

HOSE

12

6535136

ADAPTER

13

6535137

ELBOW

14

FILTER See Illustration HYDRAULIC TANK & FILTER/ C3140 See Illustration HYDRAULIC CIRCUITRY, TANK & FILTER/ B18052

15

6535100

TEE

16

6534765

ADAPTER W/Ref. 18

17

6535139

HOSE

18

79K6

O RING 10
