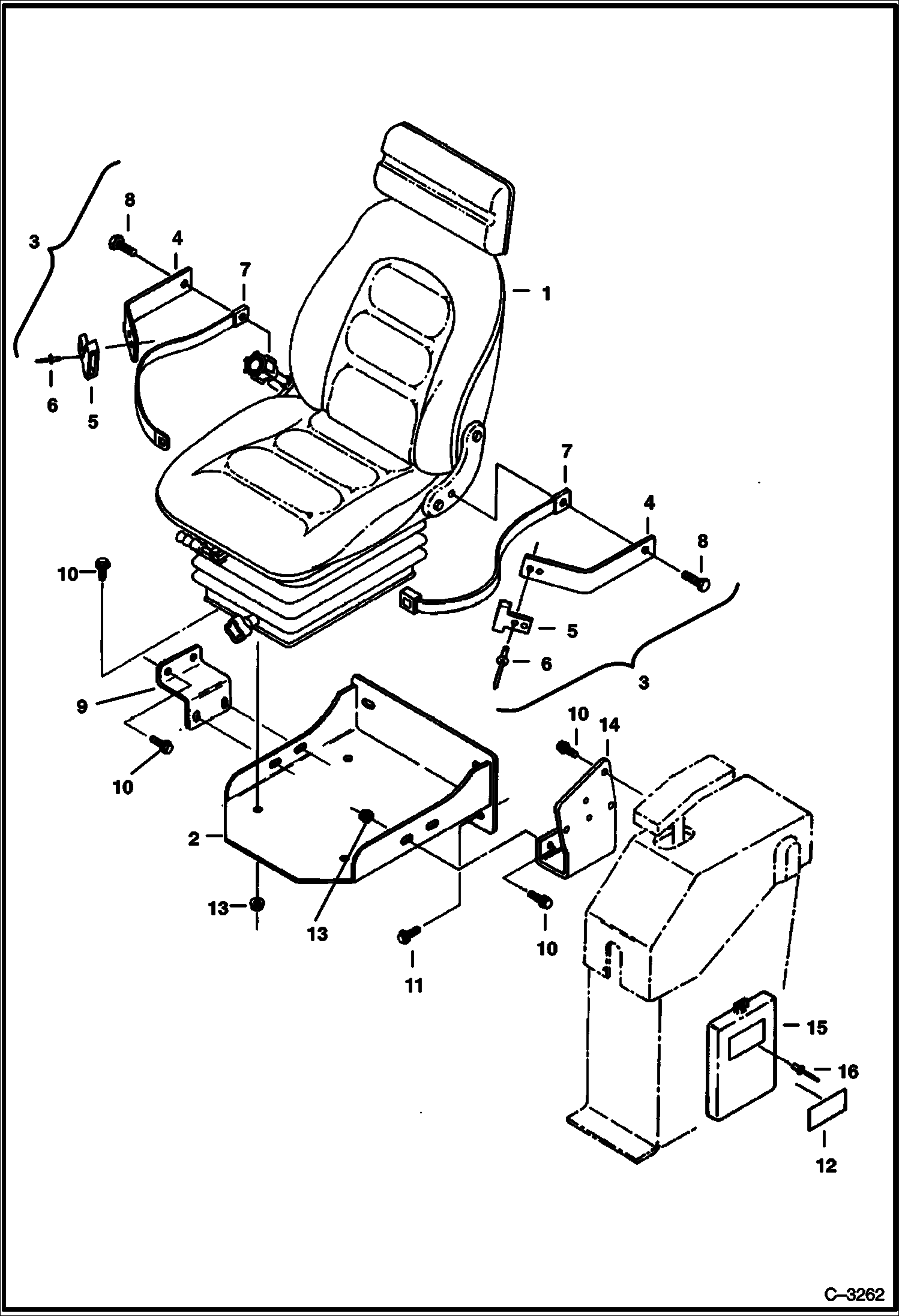

Запчасти Bobcat 225 SEAT AND MOUNTING For Excavators Sold in Scandinavian Countries ACCESSORIES & OPTIONS

1

SEAT See Illustration SEAT MOUNTING KIT/ B18554 - NLA - assy - W/Ref. 8 - Order 6685657, redrill mounting holes as required - Was 6672519 - A

2

6538710

MOUNT

3

GUIDE ASSY. NLA - Seat Belt - W/Ref. 4-6 - Order 6539095, (2) 6630207 & (2) 6565355 - Was 6539096 - A

4

STRAP NSS - Was 6539095 - A

5

GUIDE NLA - Order 6703703 - Was 6565355

6

6630207

RIVET 5

7

6564774

SEAT BELT

8

1CM820

BOLT

9

6539826

BRACKET

10

29CM816

SCREW

11

29CM1030

BOLT

12

6587762

DECAL Manual Container - Was 6575673 - A

14

6538739

BRACKET

15

6633394

CONTAINER Manuals

16

6633395

RIVET
