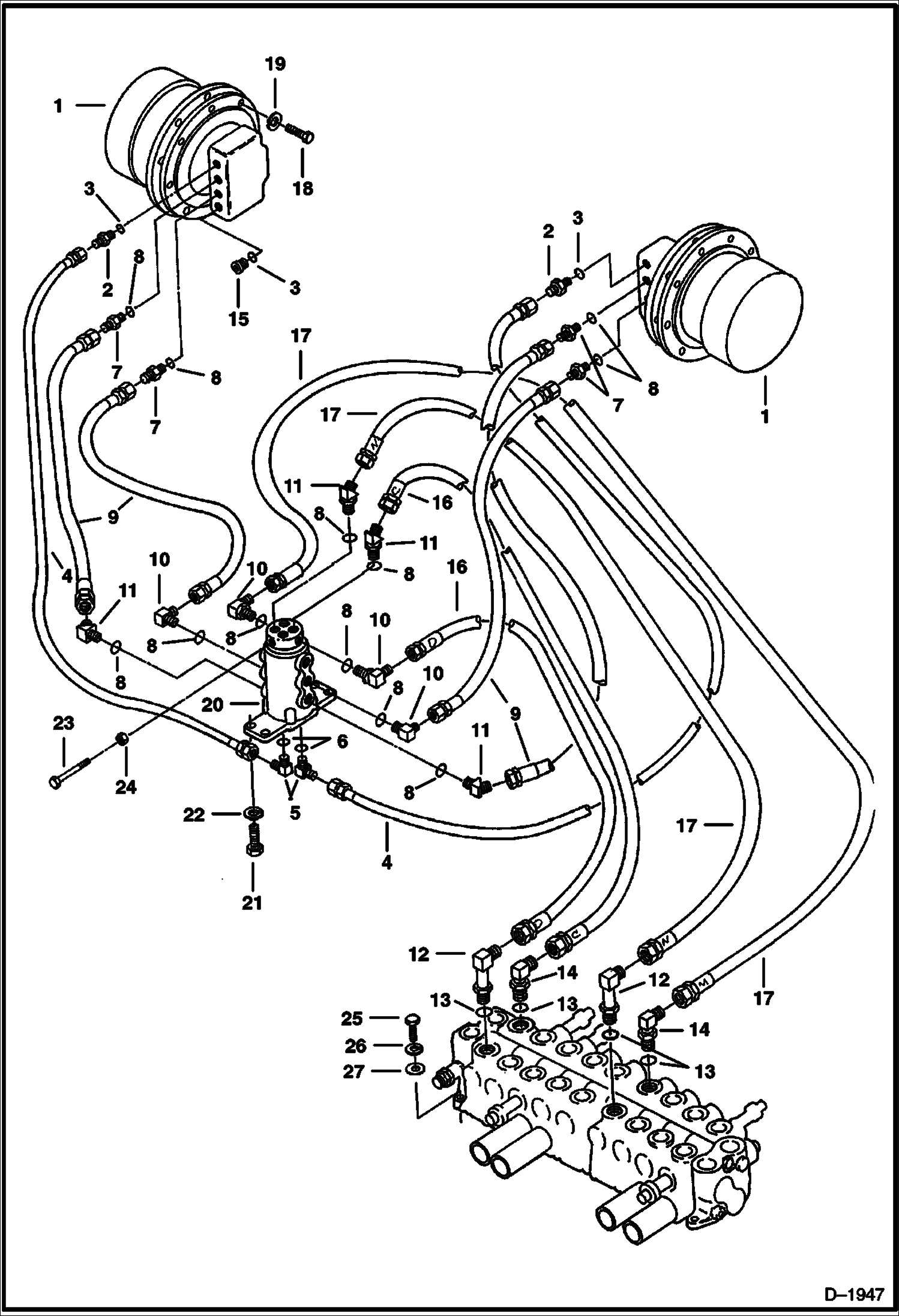

Запчасти Bobcat 225 HYDRAULIC CIRCUITRY (Valve to Travel Motor) HYDRAULIC SYSTEM

1

MOTOR See Illustration TRAVEL MOTOR/ D1974 See BTIE-050 NLA - travel - Was 6652841 - A

2

6535078

ADAPTER W/Ref. 3

3

6655244

O-RING

4

6534268

HOSE

5

6535567

ELBOW See Illustration SWIVEL JOINT FITTINGS/ B14114 W/Ref. 6 - for fittings if swivel joint has been changed to 6664413

6

6655250

O-RING

7

6535593

ADAPTER W/Ref. 8

8

79K6

O RING 10

9

6534266

HOSE

10

6535037

ELBOW See Illustration SWIVEL JOINT FITTINGS/ B14114 W/Ref. 8 - for fittings if swivel joint has been changed to 6664413

11

6535568

ELBOW See Illustration SWIVEL JOINT FITTINGS/ B14114 W/Ref. 8 - for fittings if swivel joint has been changed to 6664413

12

6535579

ELBOW W/Ref. 13

13

79K8

O RING 10

14

6535578

ELBOW W/Ref. 13

15

6653022

PLUG W/Ref. 3 - Was 6655071 - A

16

6587784

HOSE Was 6534270 - A

17

6587783

HOSE Was 6534269 - A

18

1CM1230

BOLT

19

6EM120

WASHER

20

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057 See Illustration SWIVEL JOINT/ C3160

21

1CM1230

BOLT

22

6EM120

WASHER

23

BOLT See Illustration SWIVEL JOINT/ PE3057 NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A

24

NUT Use W/NLA 6536147 screw - Was 6536748 - B

25

1CM1030

BOLT

26

6EM100

WASHER

27

15EM100

WASHER
