HYDRAULIC CIRCUITRY (Gear Pump Installation)

Запчасти Bobcat 319 HYDRAULIC CIRCUITRY (Gear Pump Installation) HYDRAULIC SYSTEM

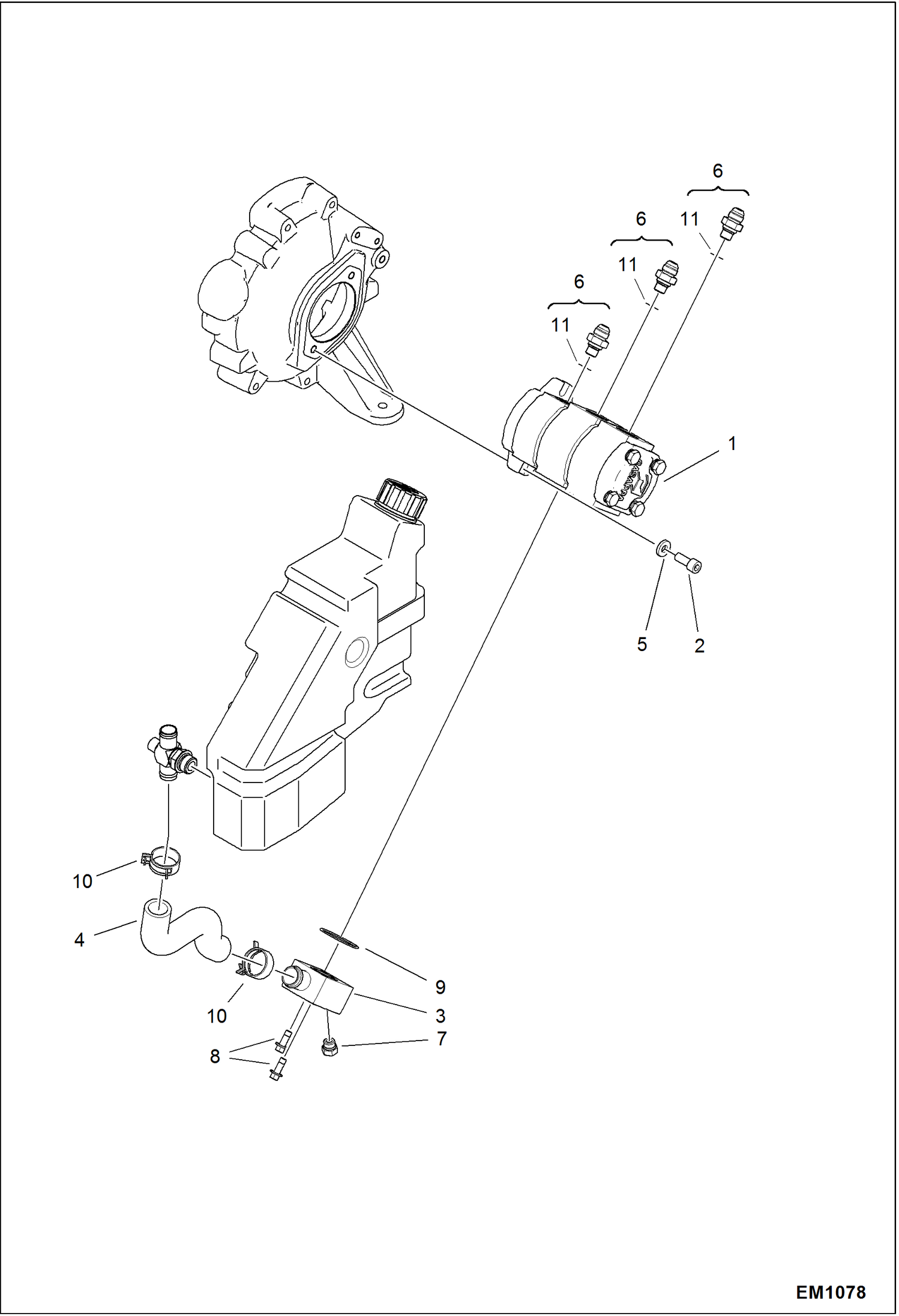

Схема запчастей Bobcat 319 - HYDRAULIC CIRCUITRY (Gear Pump Installation) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6685649

PUMP, GEAR See Illustration GEAR PUMP/ EM1685

2

6805750

SCREW

3

6810328

BLOCK

4

6810736

HOSE

5

15EM100

WASHER

6

15KB0608

FITTING, HYD CONNECTOR W/Ref. 11 Was 15KB608 - D

7

24K5

PLUG

8

29CM1050

BOLT

9

58K219

O RING 10

10

5HM35

HOSECLAMP

11

79K8

O RING 10
