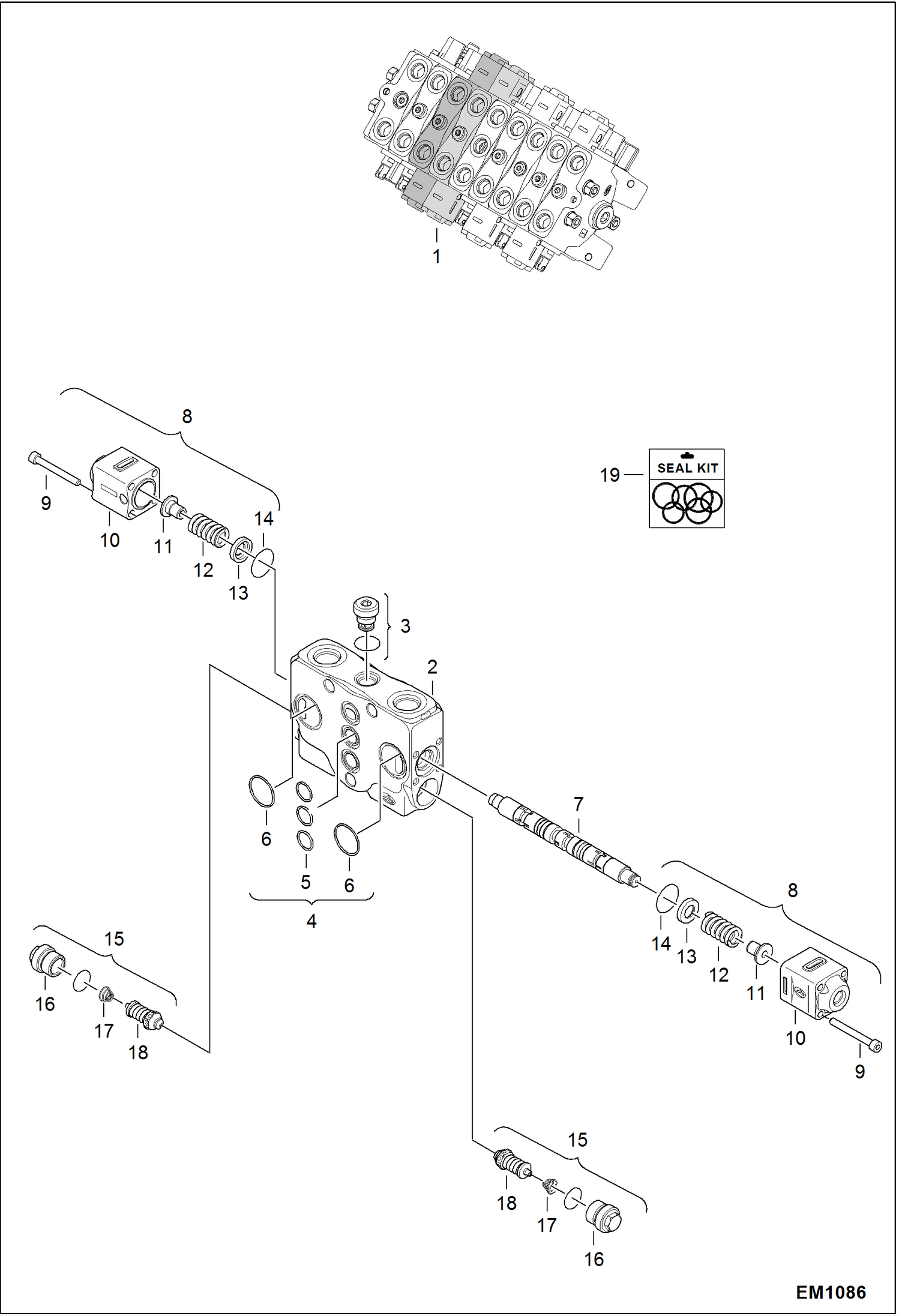

Запчасти Bobcat 319 VALVE SECTION (Arm/Bucket) HYDRAULIC SYSTEM

1

6979432

VALVE W/Ref. 2-20

2

6693128

KIT W/Ref. 3-7

3

BLOCK NLA - Order Ref. 2

4

6680092

VALVE, LOCK LOAD

5

6680066

KIT between sections - W/Ref. 6-7

6

O-RING NLA - Order Ref. 5

7

O-RING NLA - Order Ref. 5

8

6688427

KIT W/Ref. 9-14

9

6682248

SCREW

10

7015360

CAP

11

7015361

BUSHING

12

7015362

SPRING

13

7015363

BUSHING

14

O-RING NLA - Order Ref. 20

15

6693137

KIT W/Ref. 16-18

16

6686241

PLUG

17

7015357

SPRING

18

7015364

SPOOL

19

6693124

I122/SDS100 319 ARM BUCKET SPOOL

20

6979440

SEAL KIT
