SWIVEL JOINT (S/N 511720001-511720661)

Запчасти Bobcat 320 SWIVEL JOINT (S/N 511720001-511720661) HYDRAULIC SYSTEM

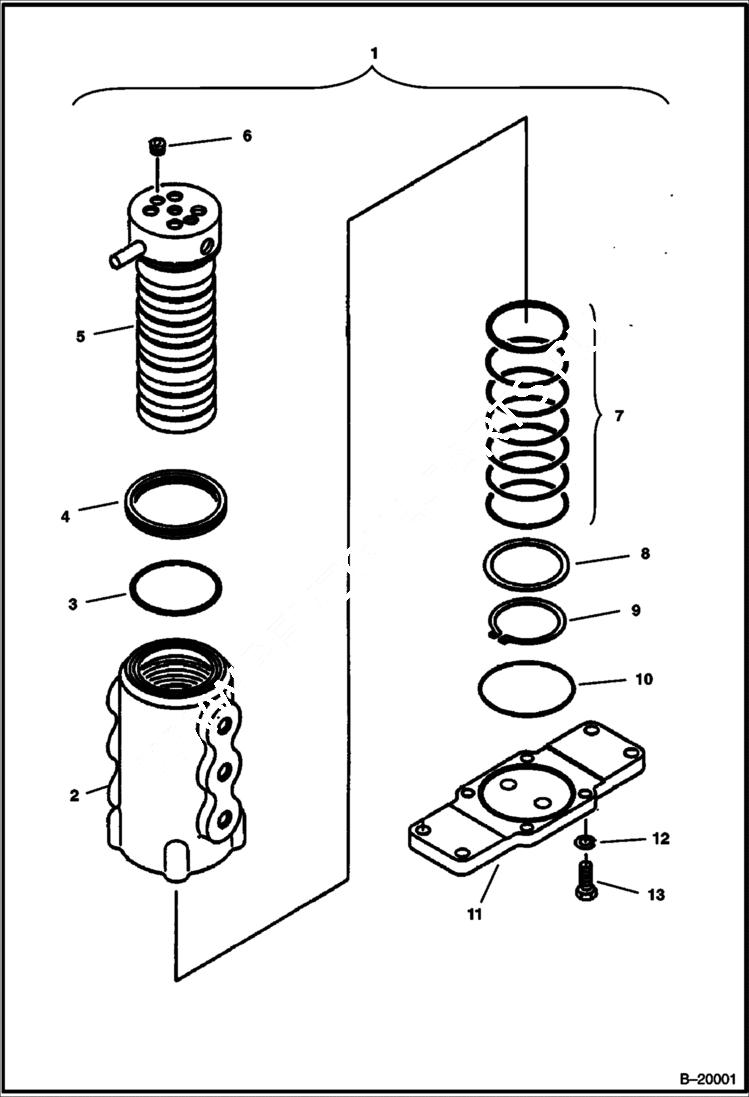

Схема запчастей Bobcat 320 - SWIVEL JOINT (S/N 511720001-511720661) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SWIVEL JOINT See BTIE-032 NLA - Ref. 2-13 - Was 6658956 - A

2

BODY See BTIE-032 NLA - Was 6533946 - A

3

6535153

O-RING

4

6535154

SEAL

5

6658955

ROTOR

6

6535156

PLUG

7

6655318

O-RING

8

6533949

WASHER thrust

9

6535158

SNAP RING

10

6535159

O-RING

11

6533948

FLANGE

12

6EM100

WASHER

13

1CM1025

BOLT
