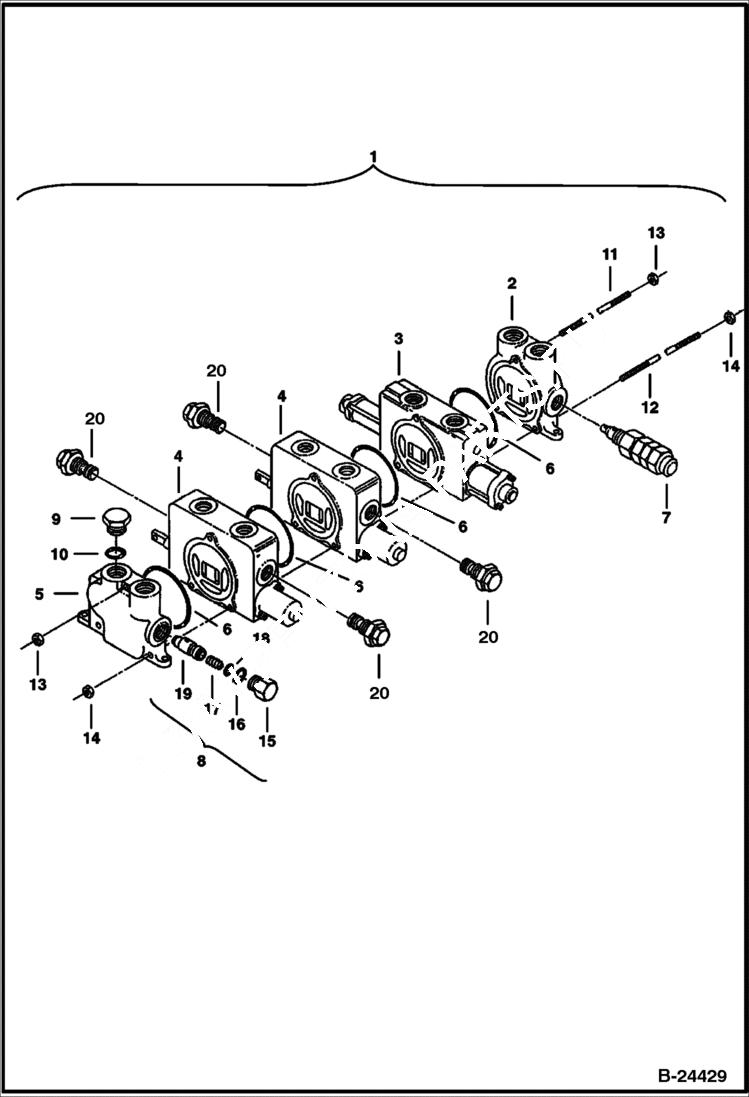

Запчасти Bobcat 320 CONTROL VALVE ASSEMBLY (3 Spool) (S/N 511722859 & Above) HYDRAULIC SYSTEM

1

6666878

VALVE 3 Spool - W/Ref. 3-15

2

6671683

INLET Was 6665449 - A

3

6665449

INLET

4

VALVE See Illustration VALVE SECTION/ C3363 Section - Swing Motor

5

6665468

VALVE See Illustration VALVE SECTION/ C3362 Section - Blade & Boom Swing

6

6665469

SECTION

7

6665438

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 Set at 2350 PSI - 16207 kpa @ 7GPM

8

6665438

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 Set at 2350 PSI - 16207 kpa @ 7 GPM

9

6665466

VALVE Pressure - Set at 200 PSI - 1379 kpa

10

24K7

PLUG W/Ref. 11

11

79K8

O RING 10

12

948188

TIE ROD

13

948187

TIE ROD

14

62D6

NUT 5

15

61D5

NUT

16

HOUSING NSS - Order Ref. 9

17

961240

O-RING

18

6665476

SPRING

19

6665475

O-RING

20

POPPET NSS - Order Ref. 9
