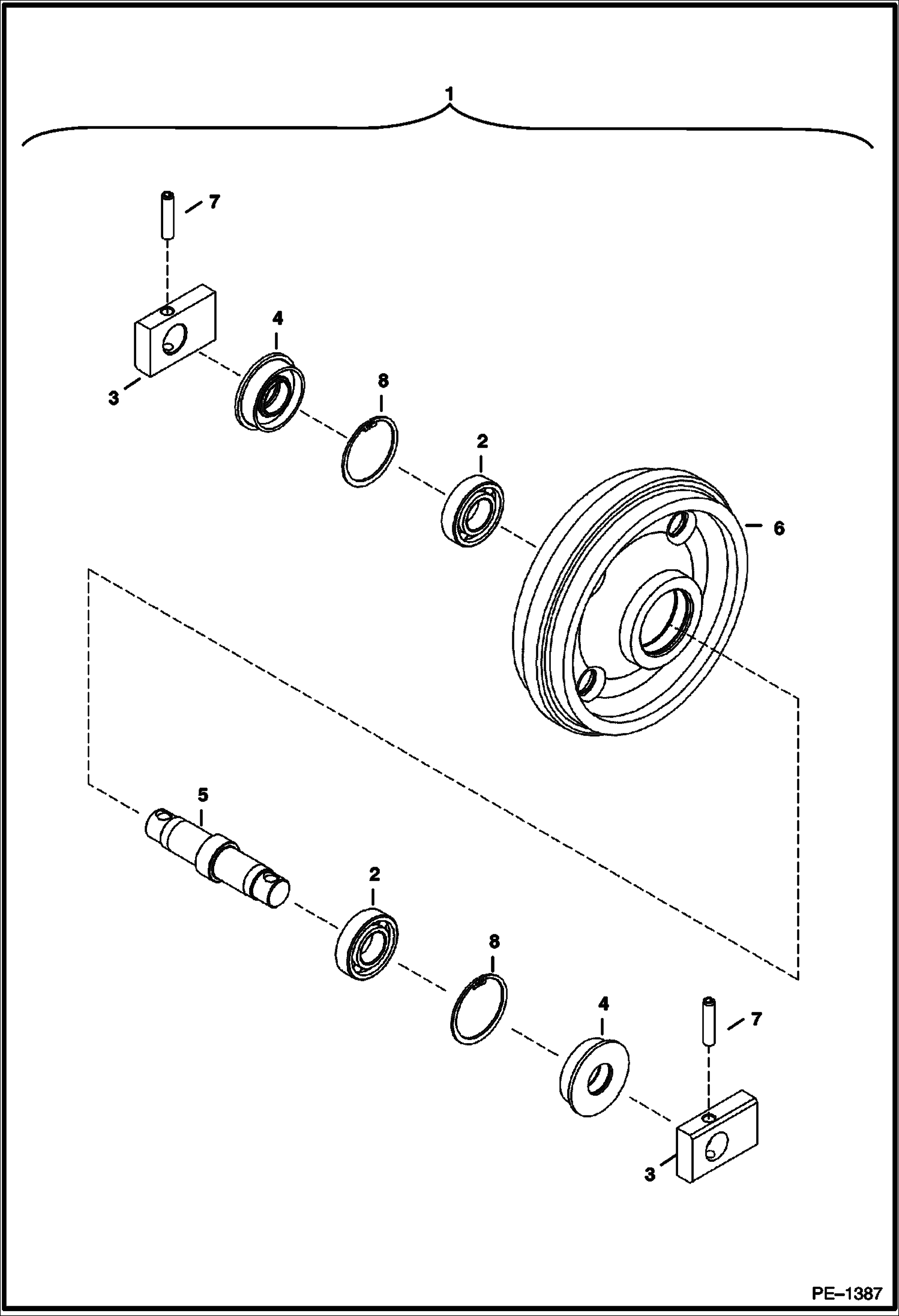

Запчасти Bobcat 320 FRONT IDLER (S/N 223811001 & Above, 223511001 & Above) UNDERCARRIAGE

1

IDLER NLA - assy - Ref. 2-8 - rubber track - order 6815109 Idler - Was 6814872 - A

1

IDLER NLA - assy - Ref. 2-8 - steel track - order 6815113 Idler - Was 6814876 - A

2

6680290

BEARING

3

7117043

GUIDE BLOCK Was 6589010 - A

4

6681720

SEAL

5

6807908

SHAFT

6

6814873

IDLER rubber track

6

6814877

IDLER

7

2JM1045

ROLL PIN

8

7JM62

SNAP RING
