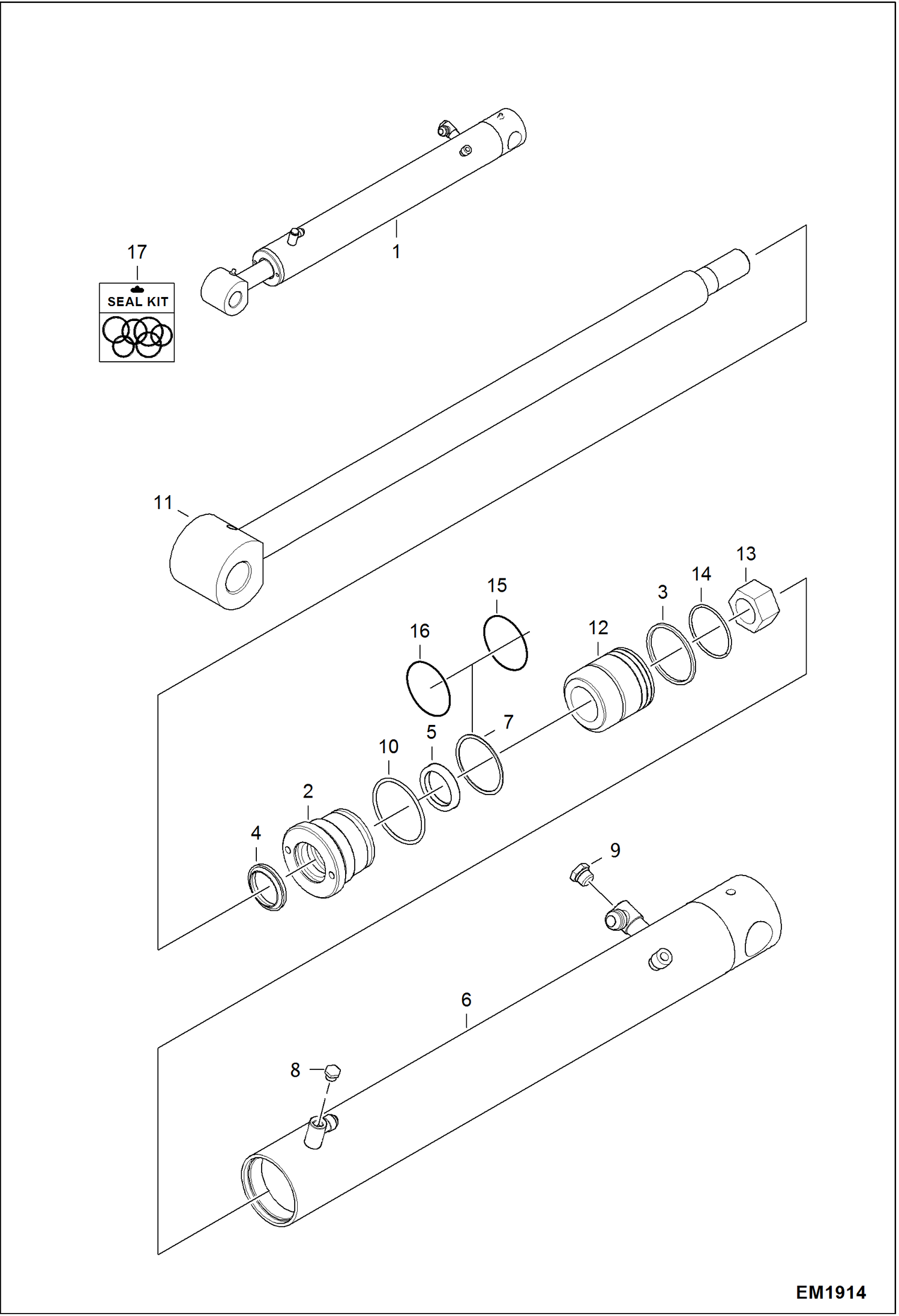

Запчасти Bobcat 321 BOOM CYLINDER HYDRAULIC SYSTEM

1

7114536

CYL ASSY 323K BOOM W/Ref. 2-18

2

6586721

HEAD

3

6536642

RING

4

6666543

WIPER, ROD CYL

5

6667325

SEAL

6

7114537

TUBE ASSY SERVICE W/Ref. 7-10, 17-18

7

TUBE NLA - Order Ref. 6

8

6812170

PLUG W/ O-ring - W/Ref. 17

9

6812171

PLUG W/Ref. 18

10

82K229

ORING

11

7114538

SHAFT W/A

12

7126687

PISTON

13

92D16

NUT

14

25K30130

O RING 10

15

54K40204

O'RING

16

73K227

RING

17

75K3

O-RING

18

75K6

O-RING

19

7138015

KIT, SEAL W/Ref. 3-5, 10, 13-16
