SWIVEL JOINT (S/N A9JZ11149 & Above)

Запчасти Bobcat 323 SWIVEL JOINT (S/N A9JZ11149 & Above) HYDRAULIC SYSTEM

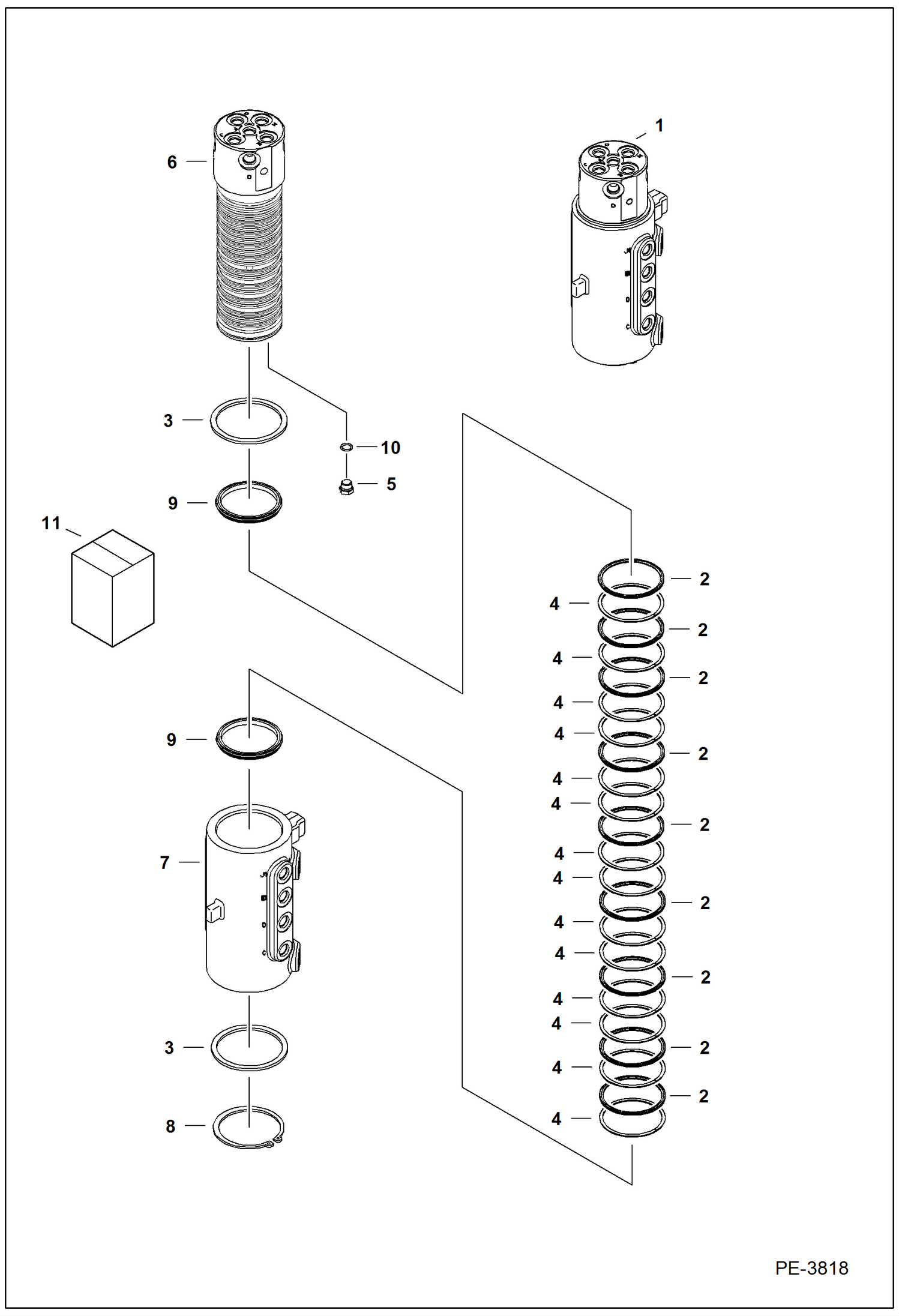

Схема запчастей Bobcat 323 - SWIVEL JOINT (S/N A9JZ11149 & Above) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7156120

SWIVEL, HYD ASSY Ref. 2-10

2

6686865

SEAL

3

6686867

WASHER

4

6686925

RING

5

6812171

PLUG

6

7156119

SPOOL, SWIVEL

7

7102239

CASE

8

21J44

RING, SNAP

9

7225616

SEAL Was 6686864 - A

10

75K6

O-RING
