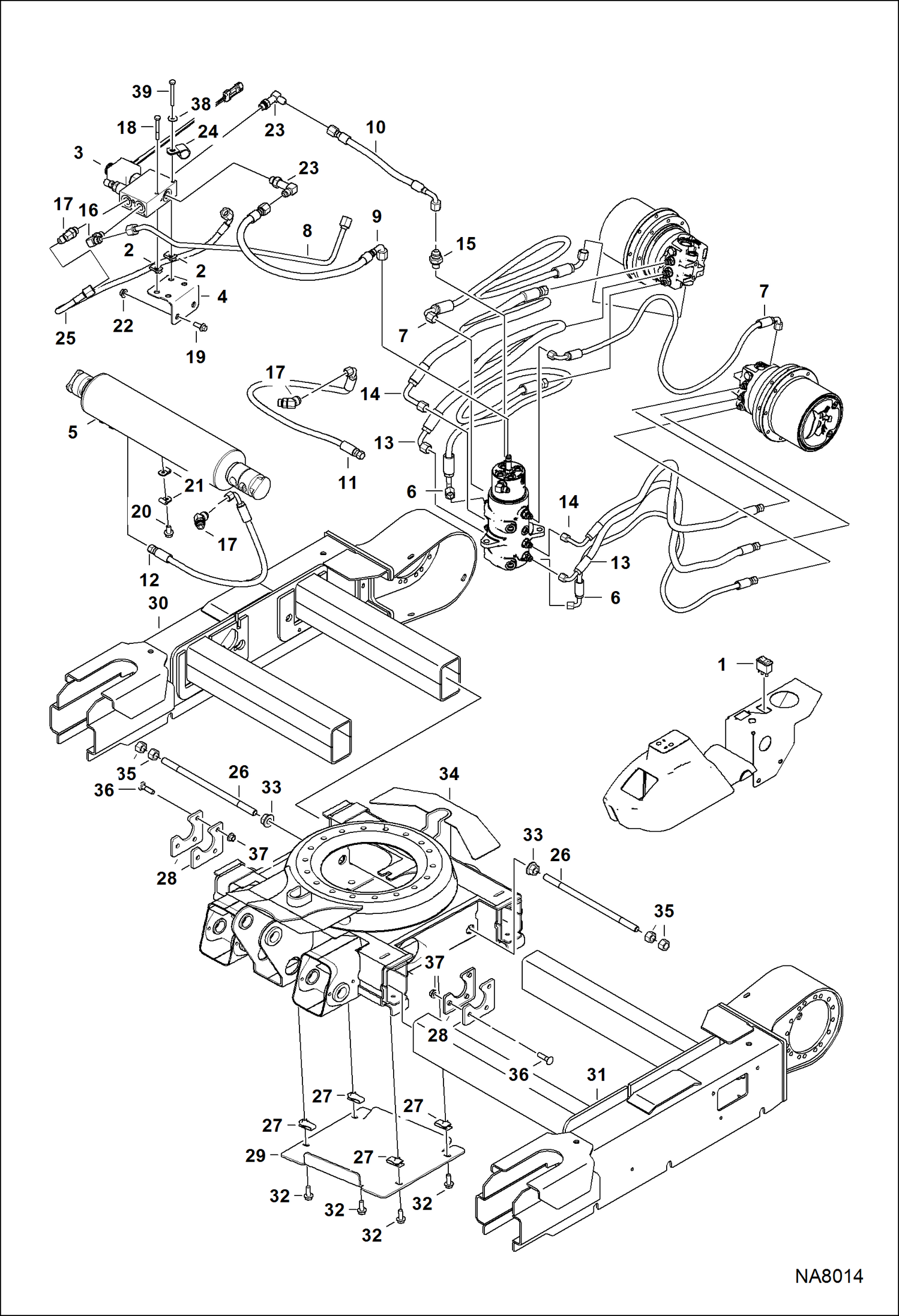

Запчасти Bobcat 324 UNDERCARRIAGE (Expandable) (AKY522001 & Above) ACCESSORIES & OPTIONS

1

6674025

SWITCH

2

6676026

NUT

3

7186806

VALVE SELECTOR

4

7188014

BRACKET

5

7114692

CYLINDERASSY 319K UC

6

7115651

hOSE ASSY

7

7197629

HOSE HYDRAULIC ASSY

8

7185723

TUBELINE

9

7198579

HOSE HYDRAULIC ASSY

10

7198580

HOSE HYDRAULIC ASSY

11

7179273

HOSE, HYD

12

7179274

HOSE, HYD

13

7179275

HOSE, HYD

14

7179276

HOSE, HYD

15

15KB0606

FITTING, HYD CONNECTOR

15

79K6

O RING 10

16

17KB0606

FITTING

16

79K6

O RING 10

17

18KB0606

FITTING, HYD ELBOW

17

79K6

O RING 10

18

1CM650

SCREW

19

29CM1025

BOLT

20

29CM816

SCREW

21

30H38

CLIP

22

51DM10

NUT

23

6812815

FITTING

23

79K6

O RING 10

24

30H65

CLIP

25

7198581

HOSE HYDRAULIC ASSY

26

7191522

ROD

27

6675722

NUT

28

6805378

MOUNT

29

7188552

COVER

30

7226007

FRAME TRACK W/A RH Was 7209906 - A

31

7226006

FRAME TRACK W/A LH Was 7188610 - A

32

29CM1025

BOLT

33

51DM16

NUT

34

7199284

UNDERCARRIAGE

35

1DM16

NUT

36

28CM1040

BOLT

37

51DM10

NUT

38

17EM60

WASHER

39

1CM655

SCREW
