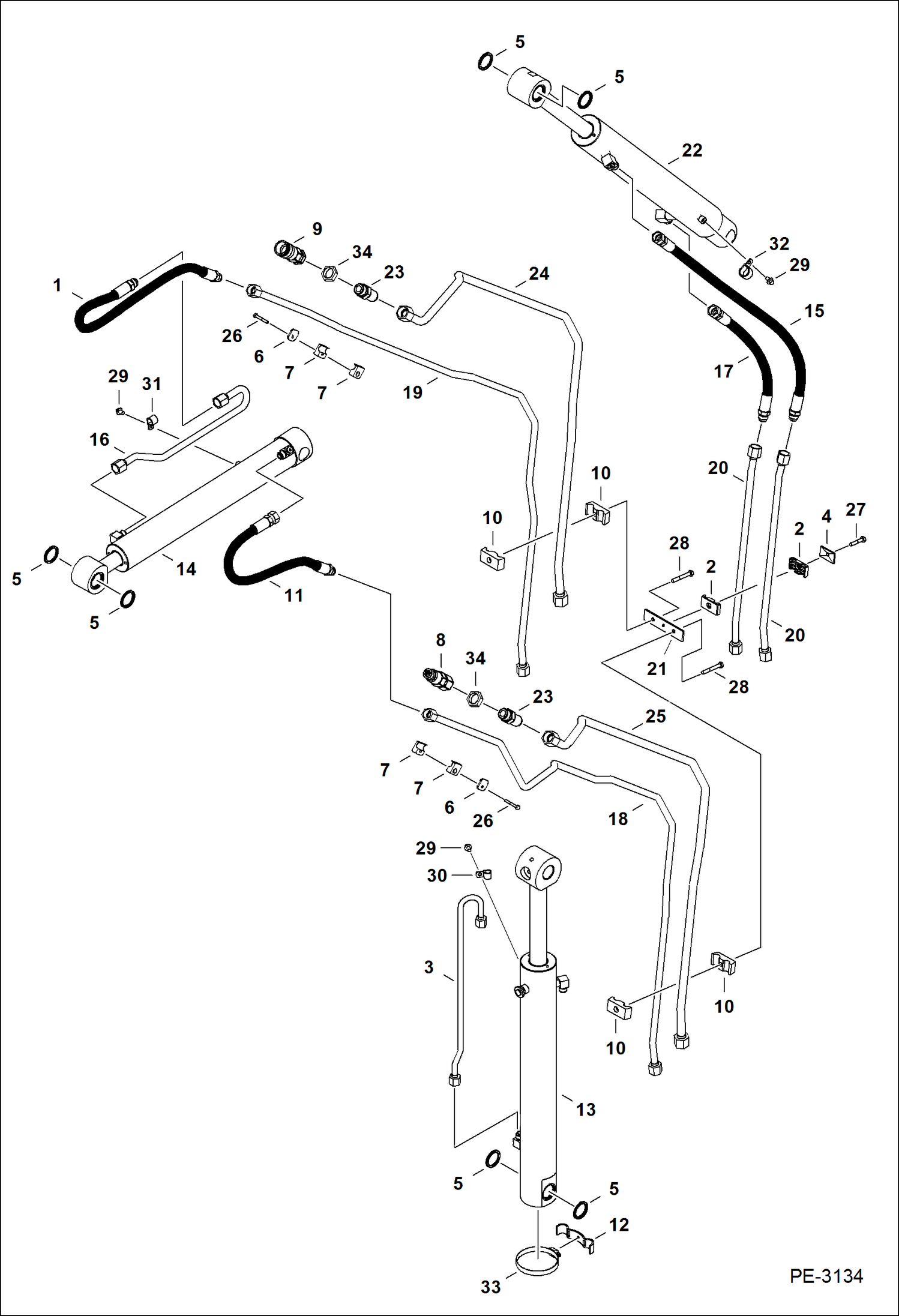

Запчасти Bobcat 325 HYDRAULIC CIRCUITRY (Work Tubelines & Cylinders) HYDRAULIC SYSTEM

1

6539418

HOSE std arm

1

6809573

HOSE long arm

2

6577697

CLAMP

3

6596710

TUBE

4

6652521

PLATE

5

6652915

SEAL, OIL

6

6665102

COVER

7

6666920

CLAMP, HALF

8

6674688

COUPLER, FF MALE straight

9

6672960

COUPLER, FF FEMALE straight

10

6677985

CLAMP

11

6816626

HOSE std arm

11

6803909

HOSE long arm

12

6806461

CLAMP

13

CYLINDER, BOOM See Illustration BOOM CYLINDER/ PE3417 boom - Also Order Ref. 5

14

CYLINDER, BUCKET See Illustration BUCKET CYLINDER/ PE3418 bucket - Also Order Ref. 5

15

6808703

HOSE

16

6808955

TUBE

17

6810228

HOSE

18

6810590

TUBE

19

6810591

TUBE

20

6810669

TUBE

21

6810670

COVER

22

CYLINDER See Illustration ARM CYLINDER/ PE3416 arm - Also Order Ref. 5

23

6812823

ADAPTER

23

79K12

O RING 10

24

7139953

TUBE

25

7139954

TUBE

26

1CM640

SCREW

27

1CM840

BOLT

28

1CM860

BOLT

29

29CM812

BOLT

30

30H30

CLAMP

31

30H37

CLAMP

32

30H49

CLAMP

33

42H56

CLAMP

34

86F8

NUT 5
