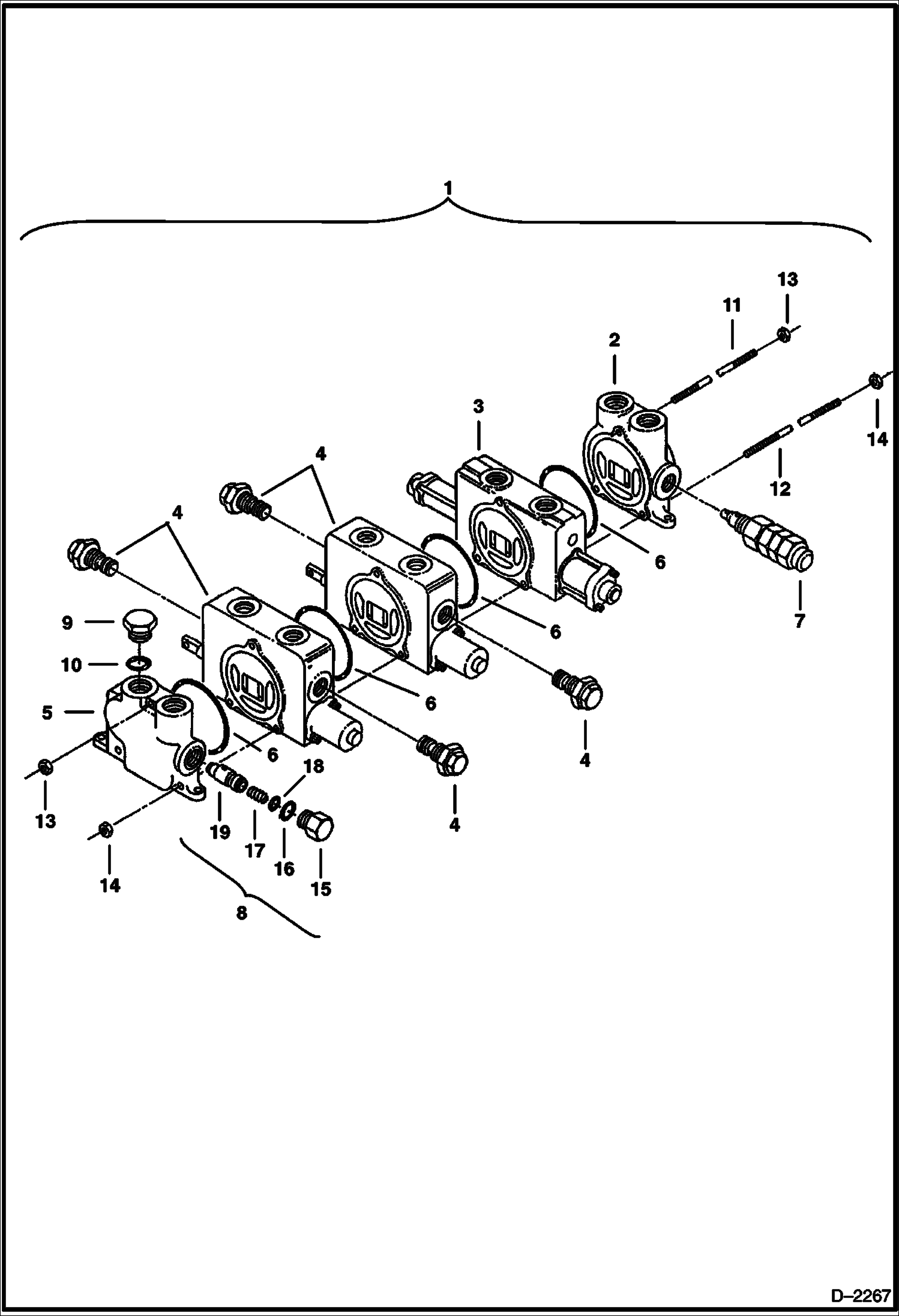

Запчасти Bobcat 325 CONTROL VALVE ASSY (3 Spool) (S/N 511820520 & Above) HYDRAULIC SYSTEM

1

6665002

VALVE 3 Spool - W/Ref. 2-19

1

6666878

VALVE Husco - 3 Spool - W/Ref. 2-19

2

6671683

INLET

3

VALVE See Illustration VALVE SECTION/ C3363 - section - swing motor

4

6665468

VALVE See Illustration VALVE SECTION/ C3362 - section - blade & boom swing

5

6665469

SECTION

6

58K228

O RING 10 Was 6646691 - A

7

6665438

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 - set at 2400 PSI (16552 KPA) @ 7GPM

8

6665466

VALVE Pressure - Set at 200 PSI (1379 kPa)

9

24K7

PLUG W/Ref. 10

10

79K8

O RING 10

11

948188

TIE ROD

12

948187

TIE ROD

13

62D6

NUT 5

14

61D5

NUT

15

HOUSING NSS - Order Ref. 8

16

961240

O-RING

17

6665476

SPRING

18

6665475

O-RING

19

POPPET NSS - Order Ref. 8
