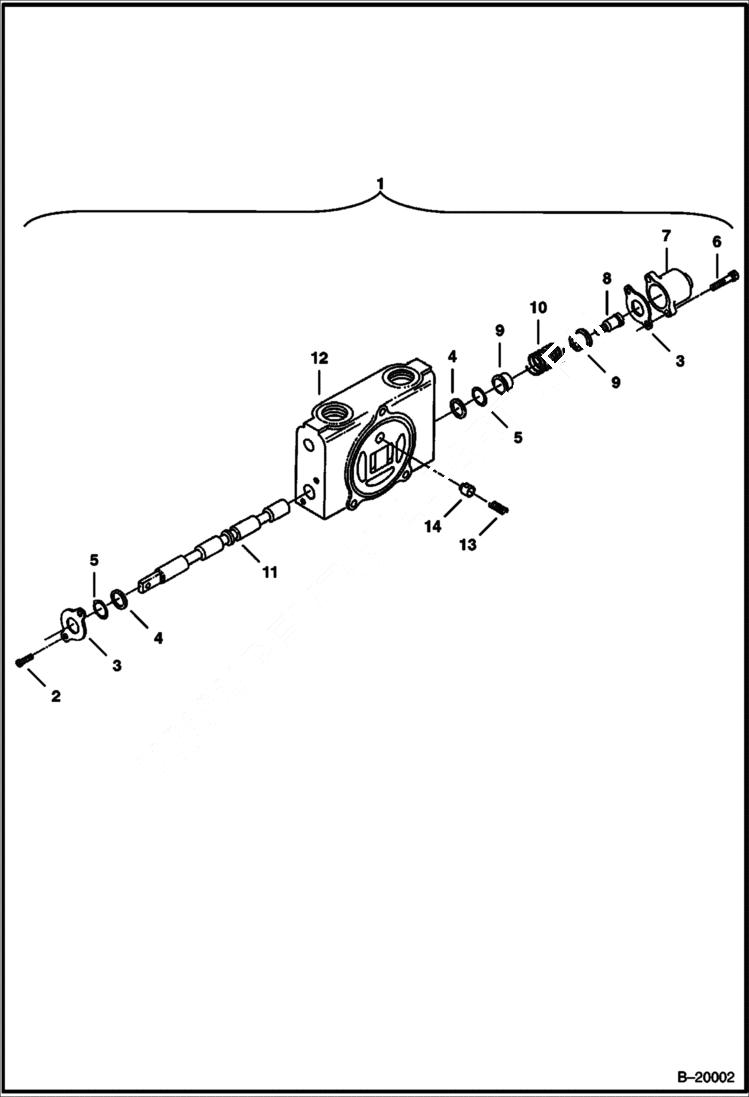

Запчасти Bobcat 325 VALVE SECTION (R.H. Travel & L.H. Travel) (S/N 511820520 & Above) HYDRAULIC SYSTEM

1

6665450

VALVE section - RH Travel - W/Refs. 2-14

1

6665455

VALVE section - LH Travel - W/Refs. 2-14

2

93G406

SCREW

3

948016

PLATE

4

25K30018

O RING 10

5

948021

SEAL wiper

6

73G412

SCREW

7

948192

CAP Was 948191B - D

8

6665434

BOLT

9

948017

SEAT Spring

10

6665433

SPRING

11

SPOOL NSS - Order Ref. 1

12

HOUSING NSS - Order Ref. 1

13

6674260

RELIEF VALVE See Illustration RELIEF VALVE/ C3361 - set at 3400 PSI (23449 KPA) - Was 6665437 - A

13

6630966

SPRING

14

6630965

POPPET
