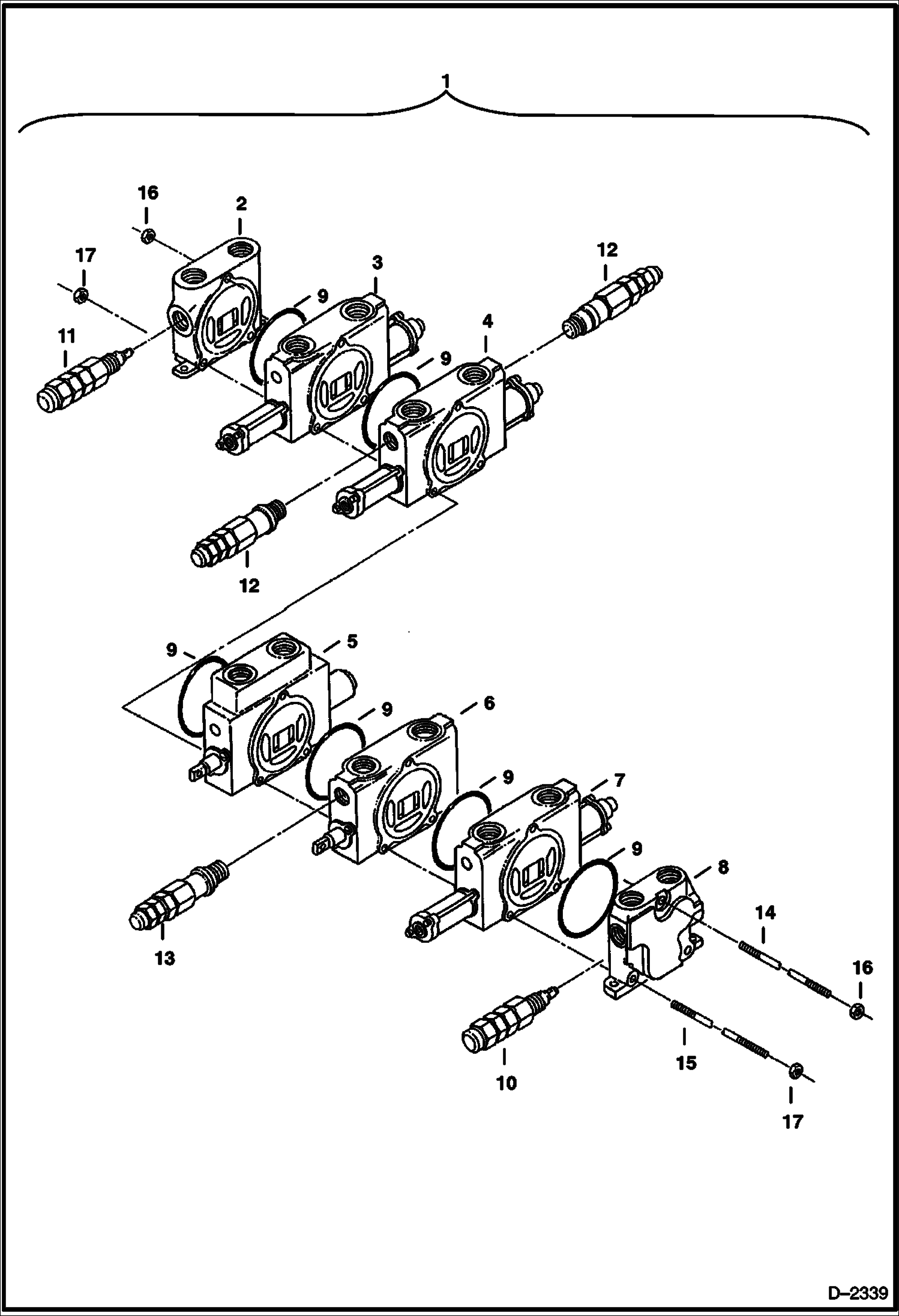

Запчасти Bobcat 328 CONTROL VALVE (5 Spool) HYDRAULIC SYSTEM

1

6669031

VALVE 5 Spool - W/Ref. 2-17

1

6670321

VALVE 5 Spool - W/Ref. 2-17

2

6668986

INLET

3

6668979

VALVE See Illustration VALVE SECTION/ C3414 - Section - Boost

4

6668980

VALVE See Illustration VALVE SECTION/ C3414 - Section - Arm

5

6668985

VALVE See Illustration VALVE SECTION/ C3417 - Section - Boom Swing

6

6668983

VALVE See Illustration VALVE SECTION/ C3411 - Section - Blade

7

6668976

VALVE See Illustration VALVE SECTION/ C3416 - Section - Swing

8

6671683

INLET Was 6665449 - A

9

58K228

O RING 10 Was 6646691 - A

10

6669021

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 - Set at 4000 PSI (27587KPA) @ 9GPM

11

6669693

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 - Set at 2300 PSI (15863 KPA) @ 9GPM

11

6671576

RELIEF VALVE See Illustration RELIEF VALVE/ C3463 See Illustration RELIEF VALVE/ C3364 - Set at 2300 PSI (15863 KPA) @ 9GMP

12

6674259

VALVE See Illustration RELIEF VALVE/ C3361 - Set at 2950 PSI (20345 KPA) @ 5GPM - Was 6665436 - A

13

6674260

RELIEF VALVE See Illustration RELIEF VALVE/ C3361 - Set at 3400 PSI (23449 KPA) @ 1GPM - Was 6669017 - A

14

6668960

TIE ROD

15

6668959

TIE ROD

16

62D6

NUT 5

17

61D5

NUT
