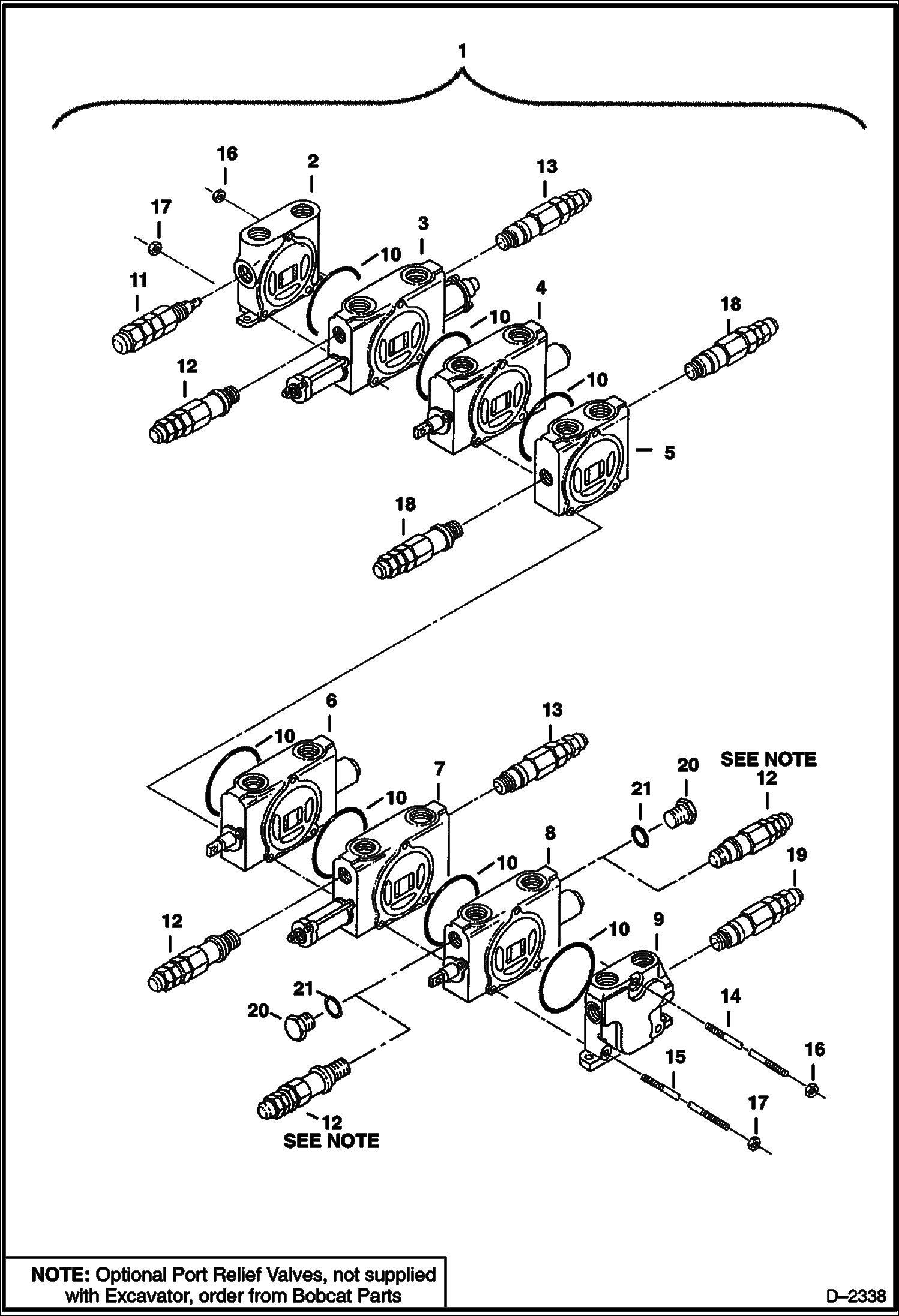

Запчасти Bobcat 328 CONTROL VALVE (6 Spool) HYDRAULIC SYSTEM

1

6668685

VALVE 6 Spool - W/Ref. 2-18

1

6670322

VALVE 6 Spool - W/Ref. 2-18

2

6668987

OUTLET

3

6668984

VALVE See Illustration VALVE SECTION/ C3414 SECTION - BOOM - WAS 6668982 - A

4

6668978

VALVE See Illustration VALVE SECTION/ C3413 SECTION - R.H. TRAVEL

5

6668974

VALVE Section - Inlet

5

6670567

VALVE Section - Inlet

6

6668977

VALVE See Illustration VALVE SECTION/ C3412 SECTION - L.H. TRAVEL

7

6668982

VALVE See Illustration VALVE SECTION/ C3415 SECTION - BUCKET

8

VALVE See Illustration VALVE SECTION/ C3410 NLA - SECTION - AUXILIARY - ORDER 6670568

8

6670568

VALVE See Illustration VALVE SECTION/ C3410 SECTION - AUXILIARY - W/REFS. 20 & 21

9

6668988

OUTLET

10

58K228

O RING 10 Was 6646691 - A

11

6669023

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 SET AT 2500 PSI (17242 KPA) @ 6.3GPM

11

6671580

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 SET AT 2500 PSI (17242 KPA) @ 6.3GPM

12

6674259

VALVE See Illustration RELIEF VALVE/ C3361 SET AT 2950 PSI (20345 KPA) @ 1GPM - WAS 6665436 - A

13

6674260

RELIEF VALVE See Illustration RELIEF VALVE/ C3361 SET AT 3400 PSI (23449 KPA) @ 1GPM - WAS 6669017 - A

14

6514392

TIE BOLT

15

6514391

BOLT

16

62D6

NUT 5

17

61D5

NUT

18

6669018

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 SET AT 3500 PSI (24138 KPA) @ 6.3GPM

18

6671581

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 SET AT 3500 PSI (24138 KPA) @ 6.3GPM

19

6671582

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 SET AT 2300 PSI (15862 KPA) @ 6.3GPM

19

6671579

RELIEF VALVE See Illustration RELIEF VALVE/ C3364 SET AT 2300 PSI (15862 KPA) @ 6.3GPM

20

6631050

PLUG

21

79K10

O RING 10
