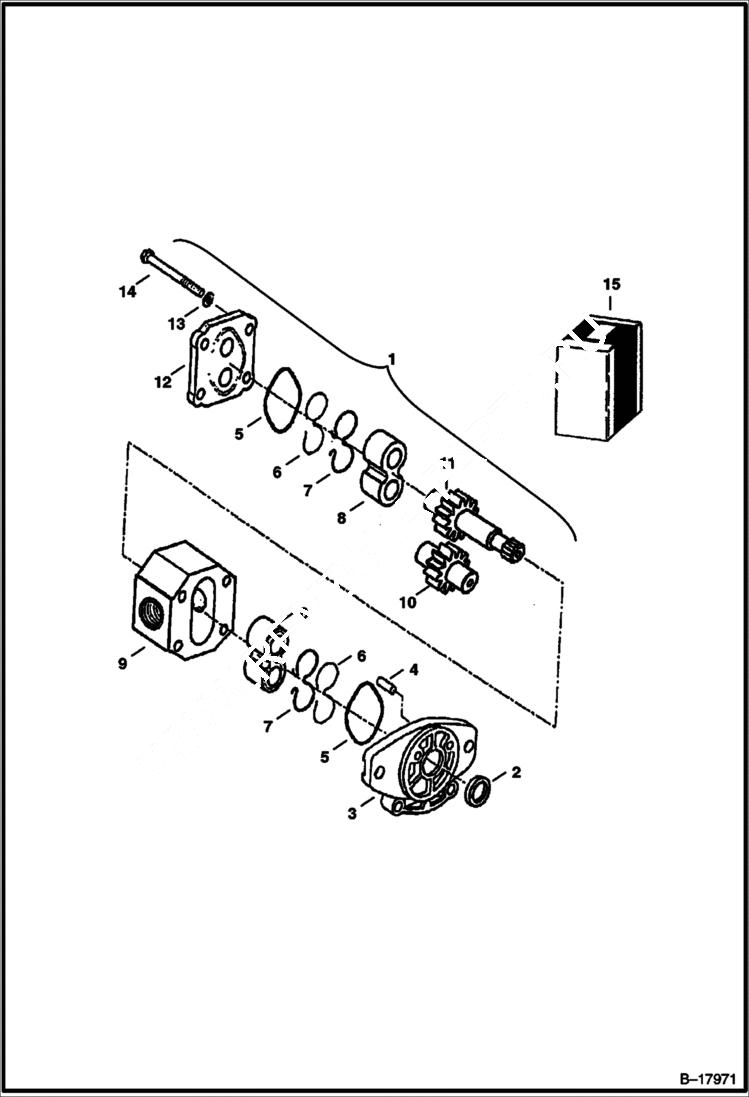

Запчасти Bobcat 337 GEAR PUMP (S/N 515412250 & Above and 230611068 & Above) HYDRAULIC SYSTEM

1

PUMP See Illustration GEAR PUMP/ MS2240 - NLA - Gear W/Ref. 2 -14 - Order 6683495 - Was 6675194 - A

2

6675206

SEAL

3

6675199

COVER

4

6675207

DOWEL

5

6675208

O-RING

6

6675205

SEAL

7

6675204

SEAL

8

6675203

BLOCK

9

BODY NLA - Order Ref. 1 - Was 6675198 - A

10

6675202

GEAR Driven

11

6675201

GEAR Driver

12

6675200

COVER

13

6675209

BOLT

14

6675210

BOLT

15

SEAL KIT NLA - Order Components - Was 6675216 - A
