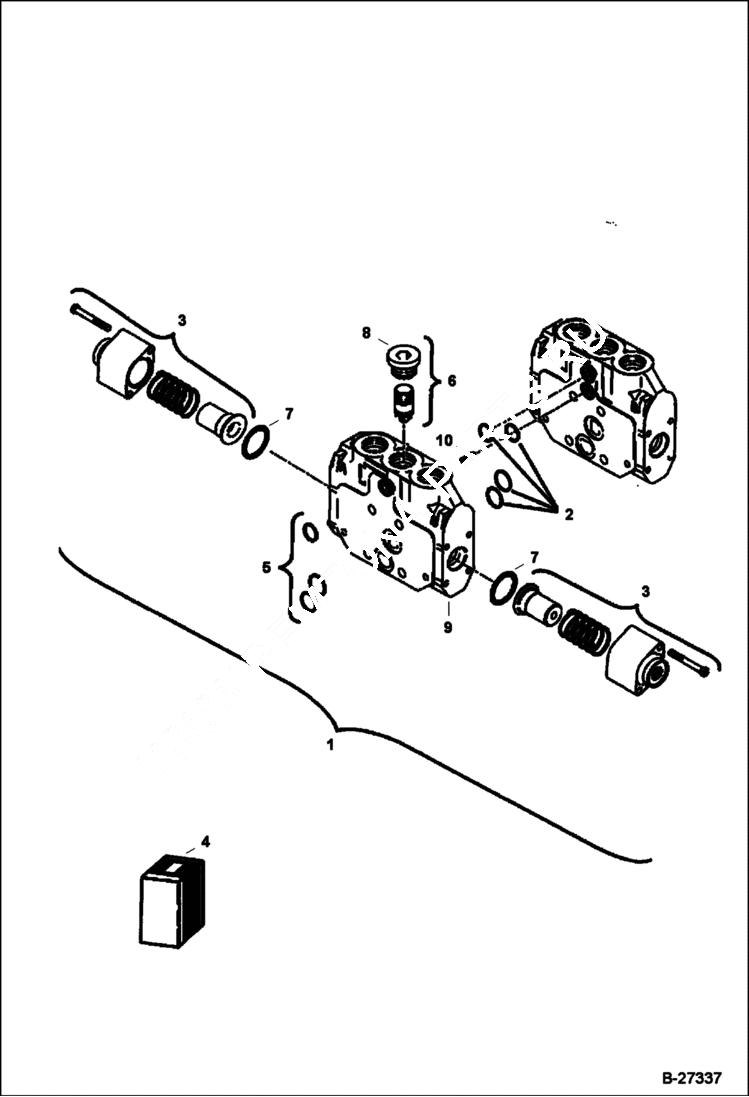

Запчасти Bobcat 341 CONTROL VALVE (Right Travel Section) HYDRAULIC SYSTEM

1

6679924

SECTION, VALVE right travel - W/ .750'' press. ports - W/(3) O-ring grooves - Was 6686582 - A

2

6677472

KIT,SEAL not included with Ref. 1

3

6677699

ACTUATOR assy

4

6677470

SEAL KIT assy

5

6677467

KIT, SEAL

6

6677690

KIT, COMPENSATOR pressure

7

O-RING NSS - Order Ref. 4

8

6685248

PLUG pressure

9

BLOCK NSS - Order Ref. 1

10

6677695

SCREW
