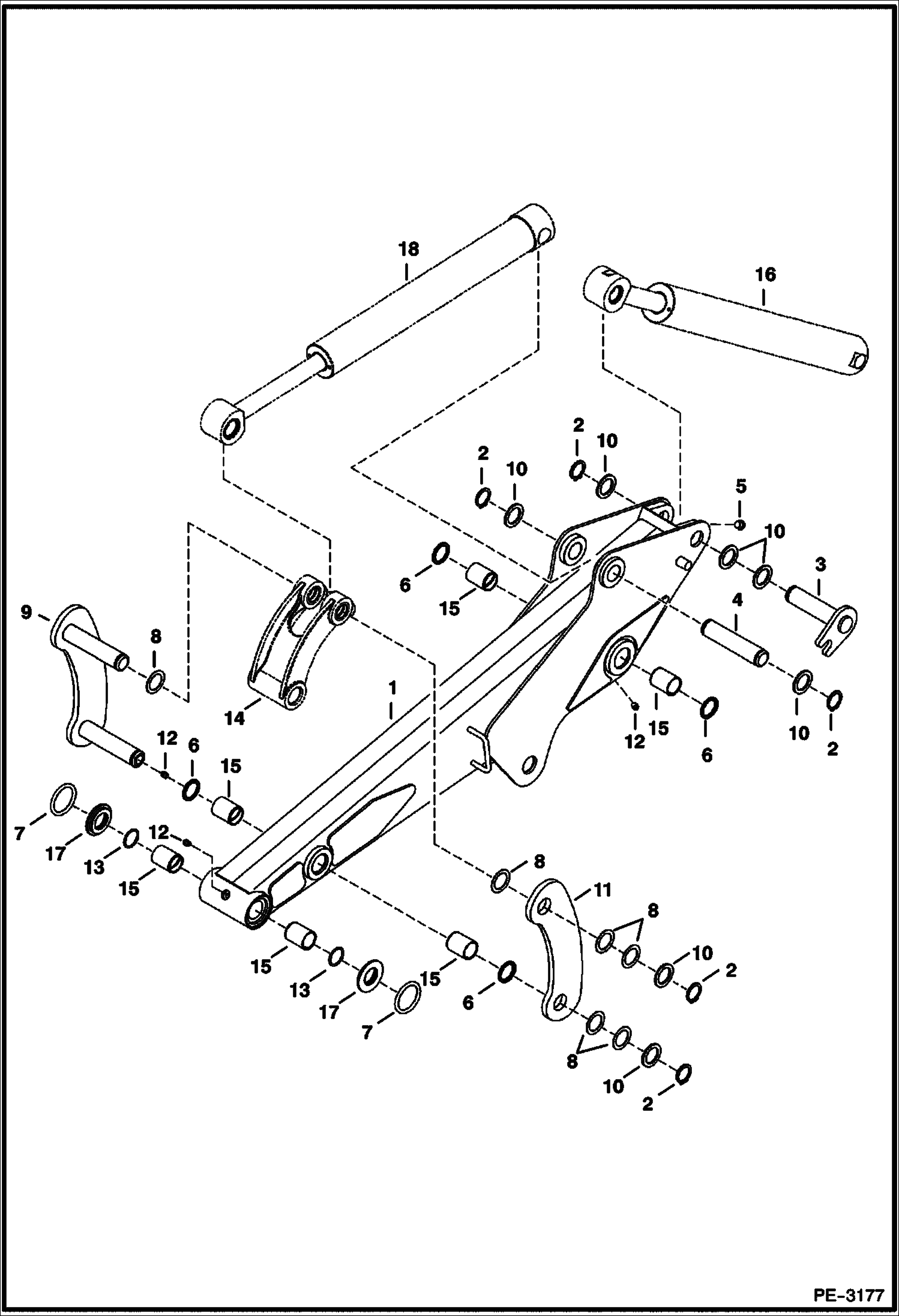

Запчасти Bobcat 428 ARM WORK EQUIPMENT

1

7127622

ARM Also Order bushings and seals - 54.25'' (1378 mm) long

1

7127628

ARM, LONG Also Order bushings and seals - 66'' (1676,5 mm) long

2

6534154

RING

3

6595222

PIN

4

6595660

PIN

5

6597572

BUMPER

6

6652915

SEAL, OIL

7

6811260

O-RING

8

6811636

SPACER

9

7173235

LINK, GUIDE W/A Was 7127600 - A

10

6534111

WASHER

11

7173234

LINK, GUIDE Was 7129624 - A

12

10H25

FITTING, GREASE 5

13

25K40112

O RING 10

14

6805374

LINK See Illustration BUCKET LINK & X-CHANGE/ PE3572

15

6803213

BUSHING, PRESS FIT

16

CYLINDER See Illustration ARM CYLINDER/ PE3416 arm

17

6810627

WASHER

18

CYLINDER See Illustration BUCKET CYLINDER/ PE3418 bucket
