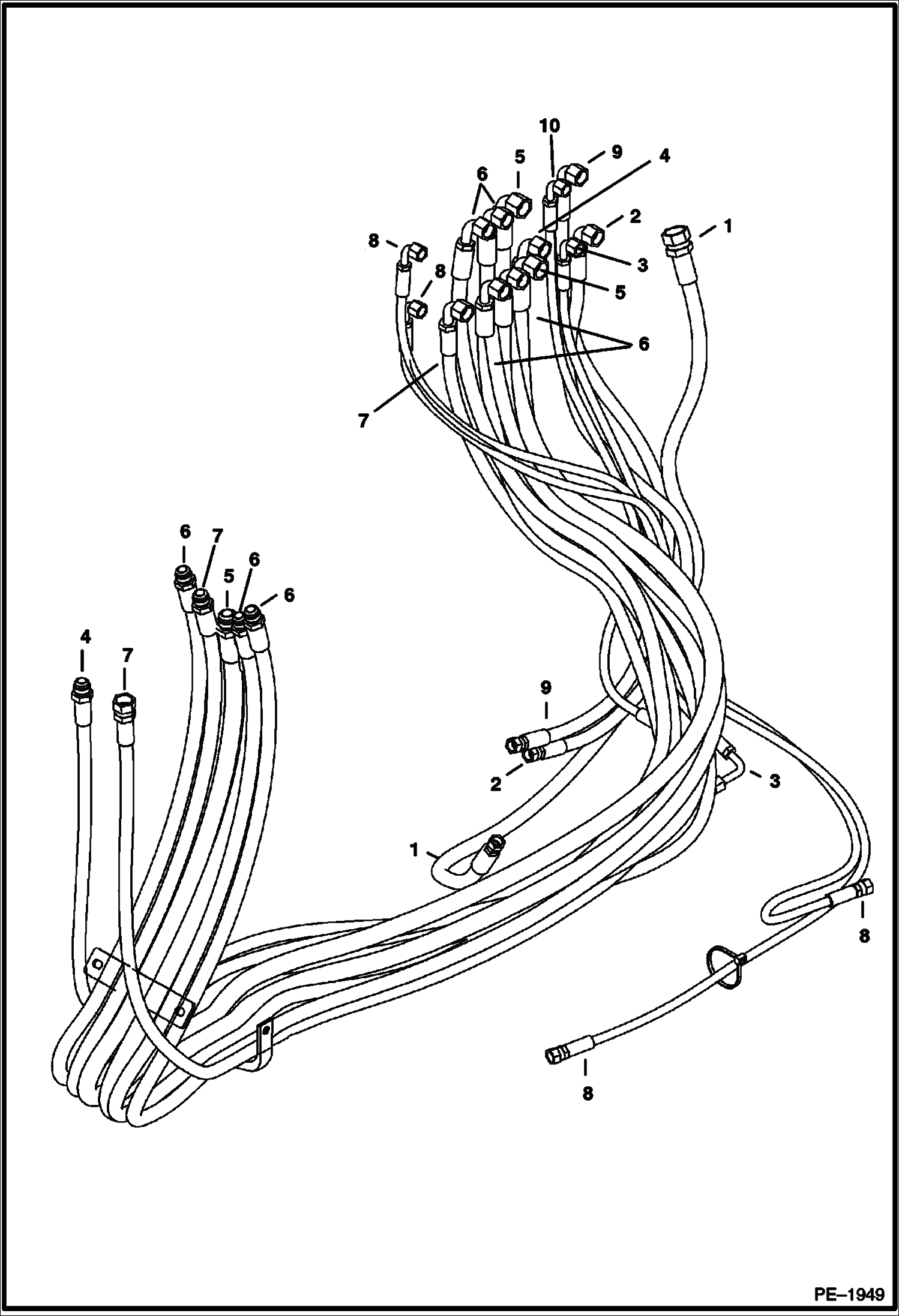

Запчасти Bobcat 430 HYDRAULIC CIRCUITRY (Function Hoses) HYDRAULIC/HYDROSTATIC SYSTEM

1

6815096

HOSE valve to slew mount, port 'T'

2

6815034

HOSE valve to slew mount, port 'B'

3

6815038

HOSE valve to swivel, port 'H'

4

6628581

HOSE valve to boom base

5

6807460

HOSE valve to aux return

6

6815874

HOSE valve to arm base, valve to bucket base, valve to arm rod, valve to bucket rod

7

6813914

HOSE valve to boom rod

8

6537283

HOSE valve to offset base, valve to offset rod

9

6815033

HOSE valve to slew mount, port A, valve to offset rod

10

6815575

HOSE valve to swivel , port 'J'
