SWING MOTOR (R921810125)(805119732) (S/N 562611001 & Above)

Запчасти Bobcat 435 SWING MOTOR (R921810125)(805119732) (S/N 562611001 & Above) HYDRAULIC/HYDROSTATIC SYSTEM

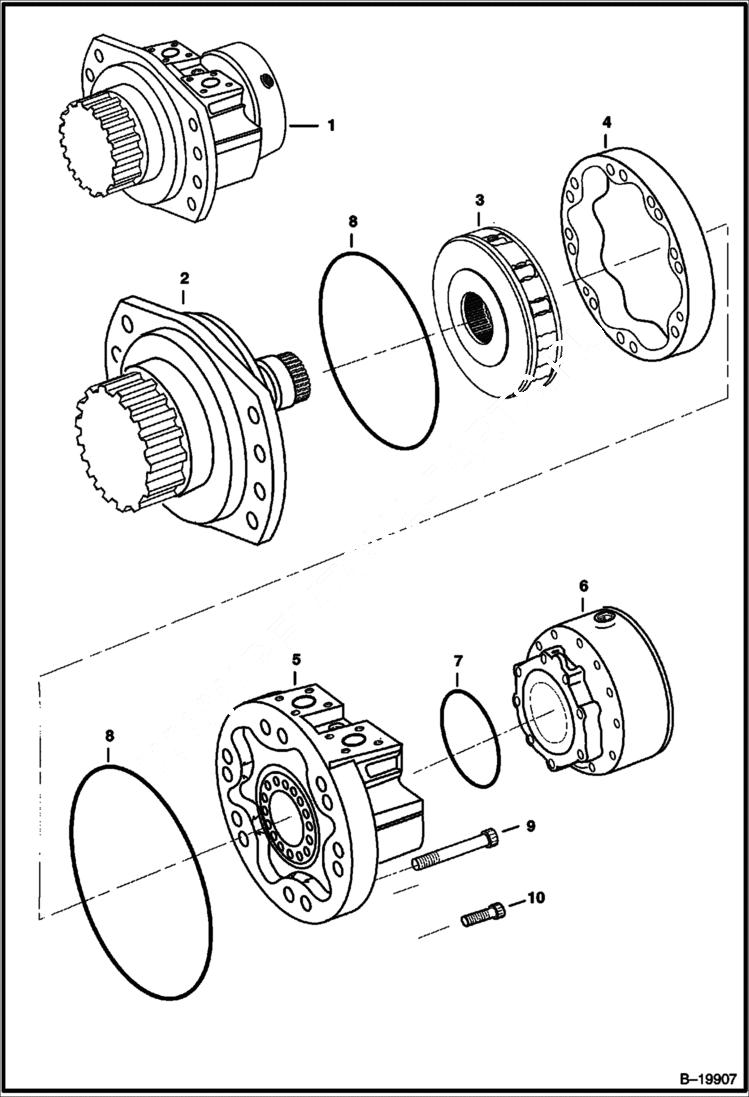

Схема запчастей Bobcat 435 - SWING MOTOR (R921810125)(805119732) (S/N 562611001 & Above) HYDRAULIC/HYDROSTATIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MOTOR See Illustration SWING MOTOR/ MS2588 NLA - R921810125 or 805119732 - Order 6689391 - assy - Was 6679747 - A

2

6684715

CASE

3

6690158

ROTOR GROUP Was 6675222 - D

4

6684716

CAM

5

6679775

CASE

6

BRAKE ASSY See Illustration SWING MOTOR/ MS2588 NLA - Order slew motor 6689391 - Was 6679776 - A

7

6675195

SEAL

8

6674029

SEAL

9

6687080

SCREW Was 6675020 - A

10

6687081

SCREW Was 6675021 - A
