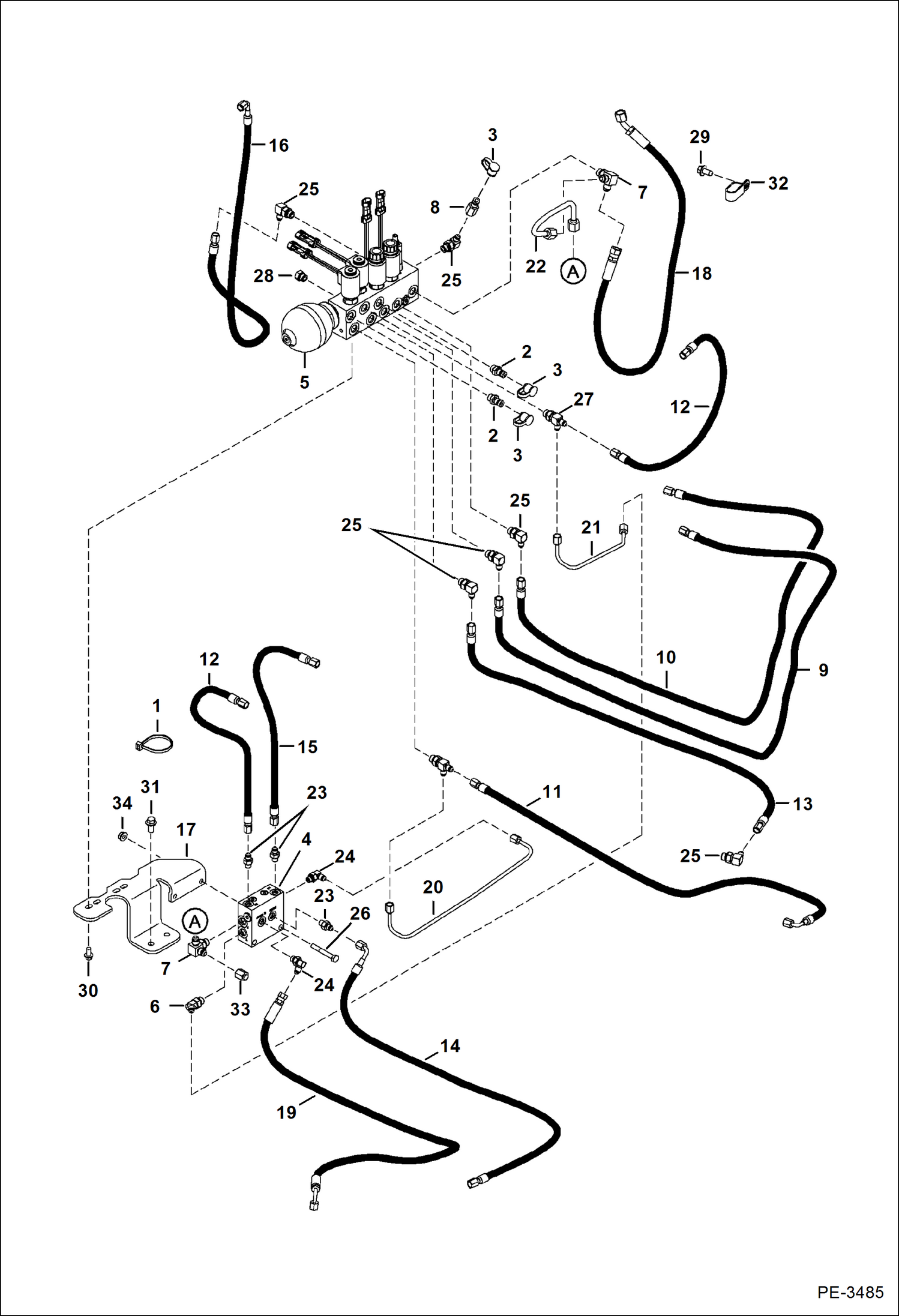

Запчасти Bobcat 435 HYDRAULIC CIRCUITRY (Manifold) (S/N 5631 14000-14006, 15000 & Above) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6630168

COUPLER

2

79K6

O RING 10

3

6630367

CAP

4

7010002

VALVE, SEQUENCE DUAL See Illustration SEQUENCE VALVE/ TS1901 Was 6673053 - A

5

6690054

MANIFOLD See Illustration MANIFOLD ASSY/ MS1465

6

6707895

ELBOW

6

79K6

O RING 10

7

6725182

TEE

7

79K6

O RING 10

8

7000009

PLUG

9

7106597

HOSE

10

7106598

HOSE

11

7106599

HOSE

12

7106615

HOSE

13

7107648

HOSE

14

7107649

HOSE

15

7107658

HOSE

16

7130707

HOSE

17

7141385

BRACKET, MANIFOLD

18

7141411

HOSE

19

7141648

HOSE

20

7144547

TUBELINE

21

7144548

TUBELINE

22

7144549

TUBELINE

23

15KB0404

FTG HYD S Connector

23

79K4

O RING 10

24

17KB0404

FTG HYD ELBOW 90

24

79K4

O RING 10

25

17KB0406

FITTING, HYD ELBOW

25

79K6

O RING 10

26

1CM860

BOLT

27

21KB0406

FTG HYD STRAIGHT TEE

27

79K6

O RING 10

28

24K5

PLUG

28

79K6

O RING 10

29

26GM10020

BOLT

30

29CM816

SCREW

31

29CM1020

BOLT

32

31H38

CLAMP

33

36K5

CAP

34

43DM8

NUT
