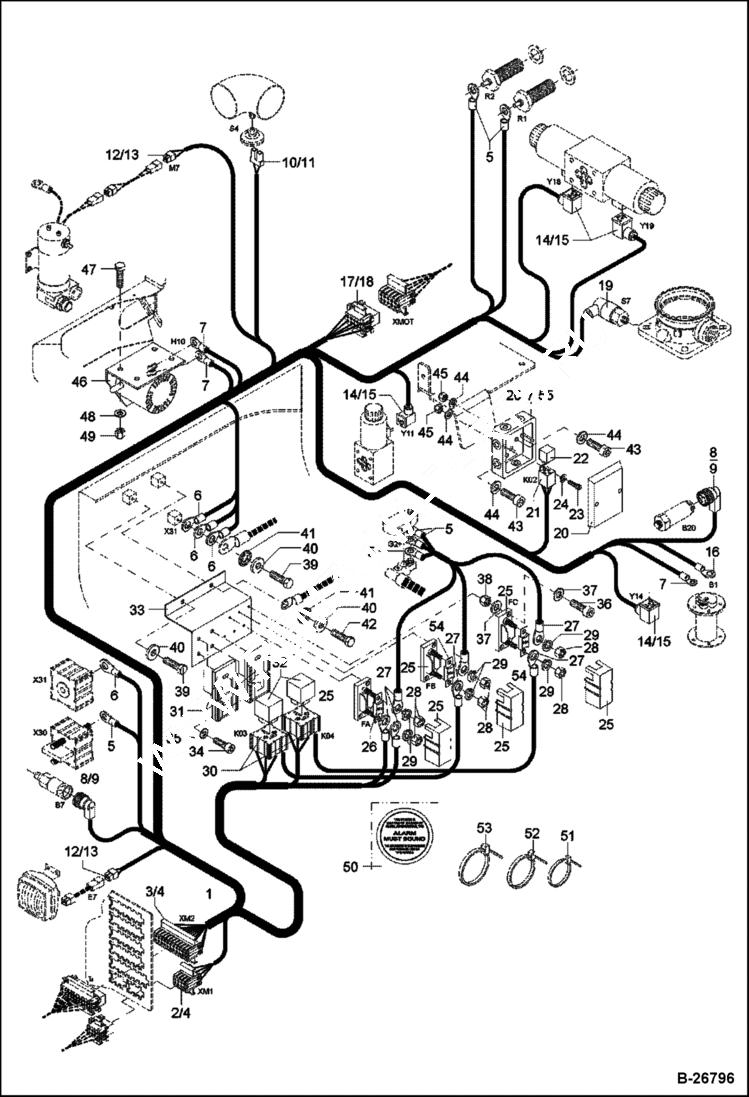

Запчасти Bobcat 442 ELECTRIC INSTALLATION 5289 11380 & Above ELECTRICAL SYSTEM

1

0234007160

WIRE HARNESS Inclues Ref. 2-32 - Was 0234007060 - D

2

5350249684

CONNECTOR

3

5350249687

CONNECTOR Female

4

5350249552

CONNECTOR Female

5

5350249600

CABLE CONNECTOR

6

5350249597

CABLE CONNECTOR

7

5350241104

CABLE CONNECTOR

8

5350249655

SOCKET HOUSING

9

5350249661

CAP 90GRAD

10

5350249576

HOUSING

11

5350249579

FEM TERMINAL

12

5350249513

PLUG Female Housing

13

5350246805

TERMINAL FEMALE

14

5552659550

BOX

15

5552659513

SEAL

16

5350246820

CABLE CONNECTOR

17

5350249691

CONNECTOR MALE

18

5350249695

MAL TERMINAL

19

5380660826

PLUG CONNECTION

20

5208640227

STARTERBOX HOUSING

20

5208640228

BOX

21

5050247815

BRACKET RELAY

22

5050247810

RELAY

23

1041707506

BOLT

24

1290707010

WASHER

25

5050650450

HOLDER W/Ref. 28 & 29

26

5050650480

40A FUSE

27

5350249590

CABLE CONNECTOR

28

1210707007

NUT

29

1321707012

WASHER

30

5050650464

POWER RELAY LINE

31

5050650491

BRACKET

32

5050247810

RELAY

33

6190007010

BRACKET

34

1045707909

BOLT

35

1290707012

WASHER

36

1045707906

SCREW

37

1290707010

WASHER

38

1212251006

NUT

39

1008707517

BOLT

40

1343707057

WASHER

41

1327707018

TOOTHED LOCK WASHER

42

1008707018

BOLT

43

1045707213

BOLT

44

1290707014

WASHER

45

1212251009

NUT

46

5755627342

BACK UP BUZZER

47

1008707018

BOLT

48

1290707018

WASHER

49

1212251011

NUT

50

5358609506

DECAL, BACKUP ALARM

51

5350650294

BINDER

52

5653093560

BINDER

53

5350650280

BINDER

54

5050650452

FUSE
