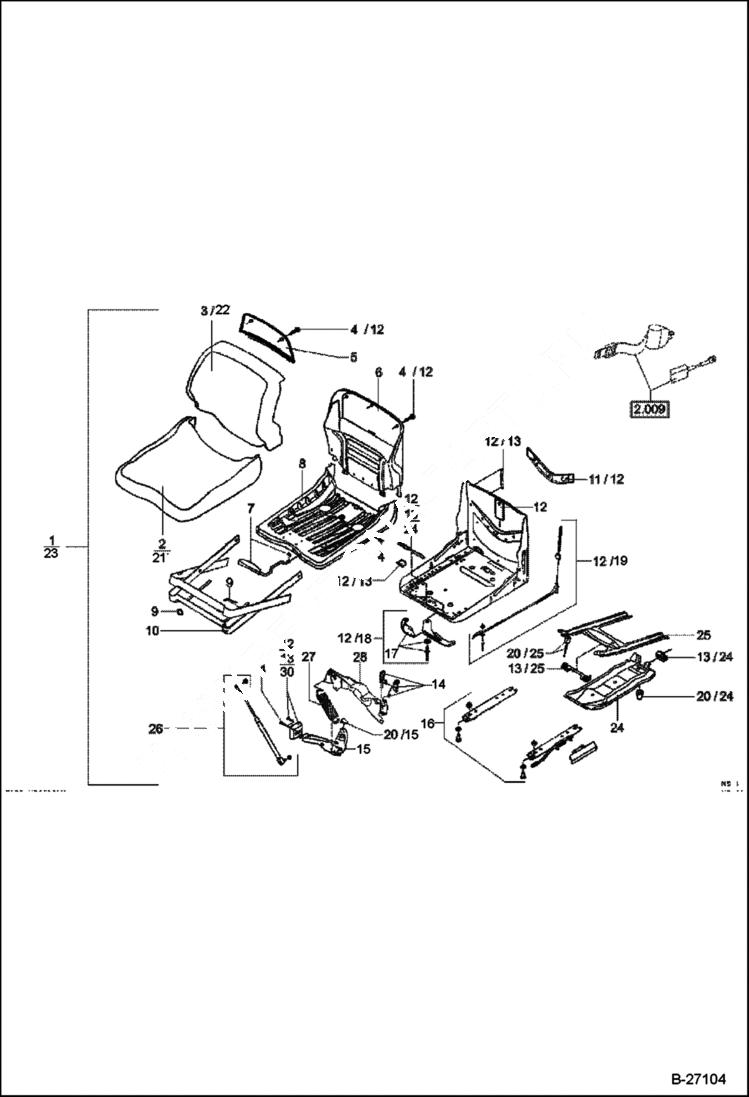

Запчасти Bobcat 442 OPERATORS SEAT MSG 20 MAIN FRAME

1

5305661700

OPERATORS SEAT Includes Ref. 2-28

2

5305670022

PAD Includes Ref. 4

3

5305670023

PAD Includes Ref. 5

4

5305661608

SET, MOUNTING PART

5

5305661618

COVER Includes Ref. 4

6

5305661611

PLATE Includes Ref. 4

7

5305039166

CONTROL LEVER

8

5305661612

SEAT BRACKET Includes Ref. 4, 7, & 10

9

5305039168

REPAIR KIT

10

5305039169

COVER Includes Ref. 9

11

5305661613

COVER

12

5305661614

SEAT CONSOLE Includes Ref. 4, 11, 16-19, 33 & 34

13

5305661594

SEAL KIT

14

5305661615

PART

15

5305039180

LEVER

16

5305661691

SLIDING RAIL SET

17

5305661616

CONTROL LEVER

18

5305661617

CABLE PULL Includes Ref. 17

19

5305661619

WEIGHT INDICATOR

20

5305039173

PLUG KIT

21

5305670020

CUSHION SEAT Includes Ref. 4

22

5305670021

CUSHION BACK Includes Ref. 5

23

5305661690

DRIVERS SEAT CPL Includes Ref. 2-28

24

5305039174

SPRING SUSPENTION

25

5305039175

SPRING SUSPENTION

26

5305661595

GAS FILLED DAMPER

27

5305039176

TENSION SPRING

28

5305039177

LEVER
