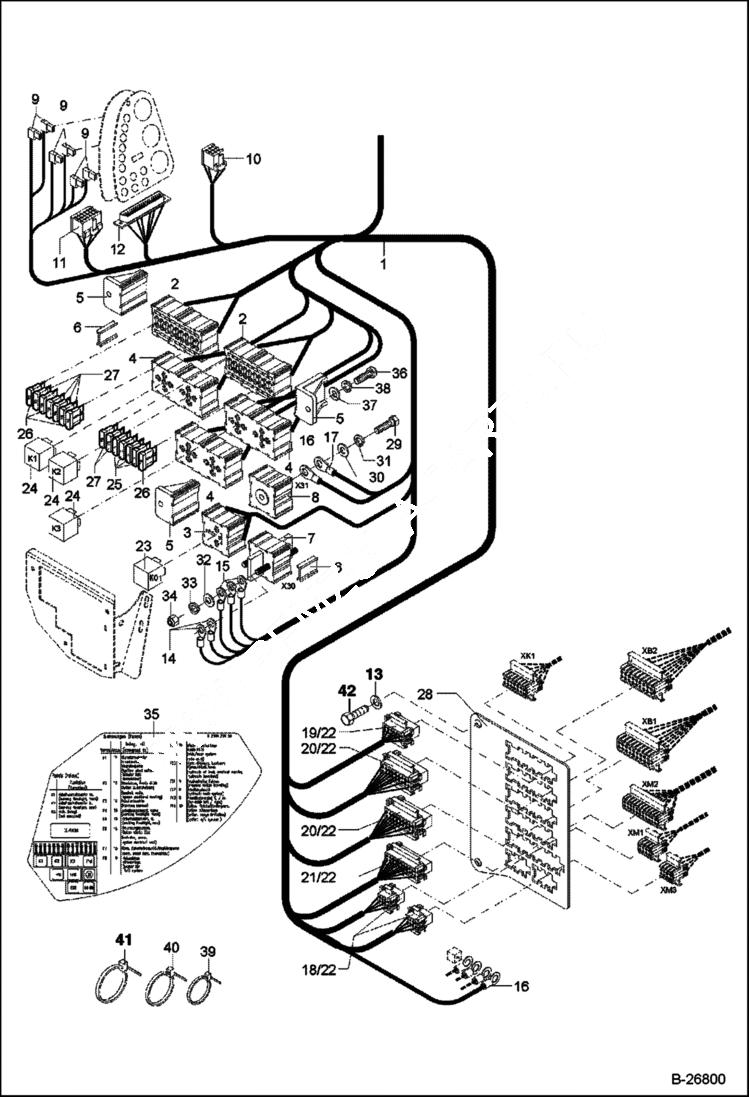

Запчасти Bobcat 442 ELECTRIC INSTALLATION Fuse & Relay Panel ELECTRICAL SYSTEM

1

5821661133

HARNESS CONSOLE Includes Ref. 2 - 31

2

5050650473

FUSE MODULE

3

5050650464

POWER RELAY LINE

4

5050650472

RELAY MODULE

5

5050650468

MOUNT

6

5050650470

CONNECTOR

7

5050650466

MODULE

8

5050650475

DISTRIBUTOR

9

CONNECTOR (FEM) NLA - Was 5350249776 - A

10

5350249757

CONNECTOR

11

5350249753

CONNECTOR

12

5350249780

CONNECTOR

13

1307707014

WASHER

14

5350246700

RING

15

5350249600

CABLE CONNECTOR

16

5350249597

CABLE CONNECTOR

17

5350246610

CABLE CONNECTOR

18

5350249690

CONNECTOR

19

5350249692

CONNECTOR

20

5350249693

CONNECTOR Housing (male)

21

5350249694

CONNECTOR Housing (male)

22

5350249695

MAL TERMINAL

23

5050247810

RELAY

24

5050247335

RELAY

25

5050650301

5A FUSE

26

5050650264

10A FUSE

27

5050650271

15A FUSE

28

6234027020

BRACKET

29

1008707817

BOLT

30

1290707018

WASHER

31

1321707018

SPRING WASHER

32

1290707014

WASHER

33

1321707013

WASHER

34

1212251009

NUT

35

0238027030

LEGEND

36

5821662125

SCREW

37

5821662126

WASHER

38

1327707012

WASHER

39

5350650294

BINDER

40

5653093560

BINDER

41

5350650280

BINDER

42

1008707213

BOLT
