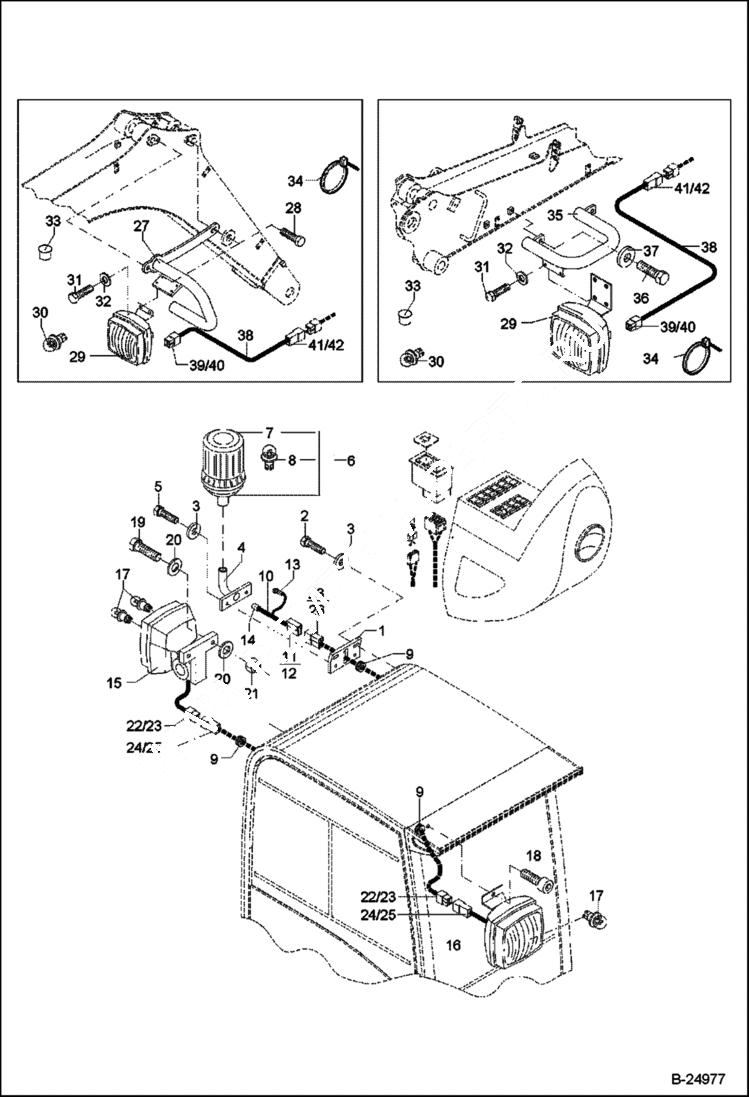

Запчасти Bobcat 442 ELECTRIC INSTALLATION Working Light ELECTRICAL SYSTEM

1

0190265005

BRACKET

2

1008707018

BOLT

3

1343707057

WASHER

4

5350637545

PIPE W/Ref. 3 & 5

5

1008707817

BOLT

6

5050022294

LIGHT, BEACON W/Ref. 7 & 8

7

5050661865

COVER

8

5350642339

BULB

9

5653095530

RUBBER GROMMET

10

0190265010

WIRE HARNESS W/Ref. 11-14

11

5350249539

PLUG

12

5350247311

TERMINAL MALE

13

5350246610

CABLE CONNECTOR

14

5350246817

SLEEVE

15

5350658675

WORKING LIGHT

16

5350661223

WORKING LIGHT Was 5350661215 - A

17

1813000035

BULB

18

1045707623

BOLT

19

1008707623

BOLT

20

1290707020

WASHER

21

1212251013

NUT

22

5350249513

PLUG

23

5350246805

TERMINAL FEMALE

24

5350249534

FLAT PLUG

25

5350247311

TERMINAL MALE

26

5050651211

FEMALE

27

6190311002

BRACKET

28

1008707230

BOLT

29

5350661223

WORKING LIGHT Was 5350661215 - A

30

1813000035

BULB

31

1008707512

BOLT

32

1290707014

WASHER

33

5558248123

PLUG

34

5350650294

BINDER

35

6190312002

SOCKET

36

1008707124

BOLT

37

1343707059

WASHER

38

0190311010

WIRE HARNESS W/Ref. 39-42

39

5350249513

PLUG

40

5350246805

TERMINAL FEMALE

41

5350249534

FLAT PLUG

42

5350247311

TERMINAL MALE
