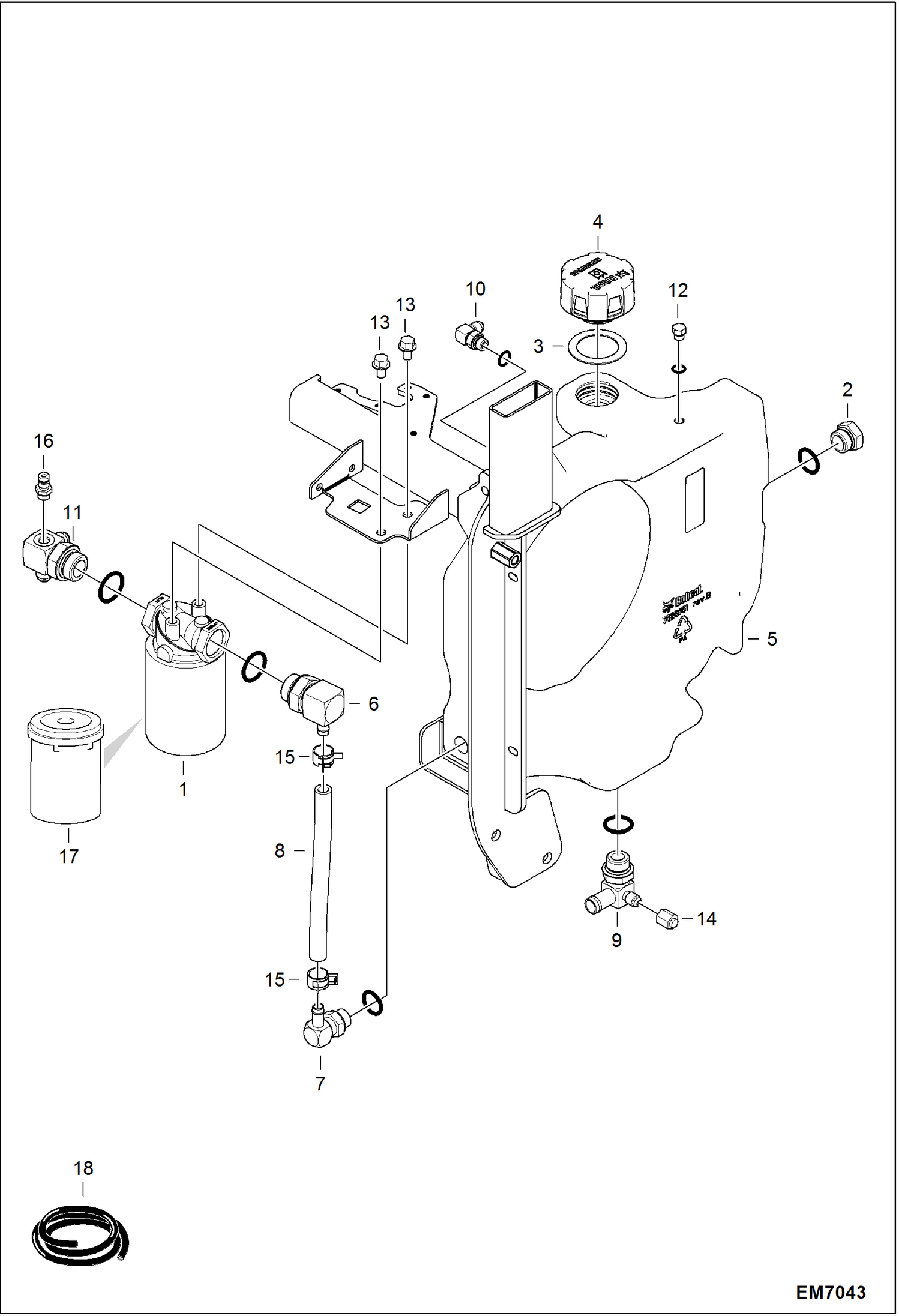

Запчасти Bobcat E08 HYDRAULIC TANK CIRCUITRY HYDRAULIC SYSTEM

1

6654897

FILTER ASSY W/Ref. 17

2

6665915

GAUGE

2

79K12

O RING 10

3

6700631

GASKET

4

6727475

CAP, OIL HYD

5

7128151

TANK HYDRAULIC

6

7149317

FTG ELBOW BEADED

6

79K16

O RING 10

7

7149318

FTG ELBOW BEADED

7

79K10

O RING 10

8

HOSE NLA - 230 mm (9.06'') long - Order Ref. 18

9

7161478

FITTING

9

79K12

O RING 10

10

17KB0606

FITTING Was 17KB606 - D

10

79K6

O RING 10

11

7203162

FITTING, HYD ELBOW Was 17KB0816 - A

11

79K16

O RING 10

12

24K3

PLUG

12

79K4

O RING 10

13

35C610

BOLT 5

14

36K5

CAP

15

5HM20

CLAMP

16

6630168

COUPLER

17

6653336

ELEMENT

18

7153602

HOSE BULK bulk - sold per foot
