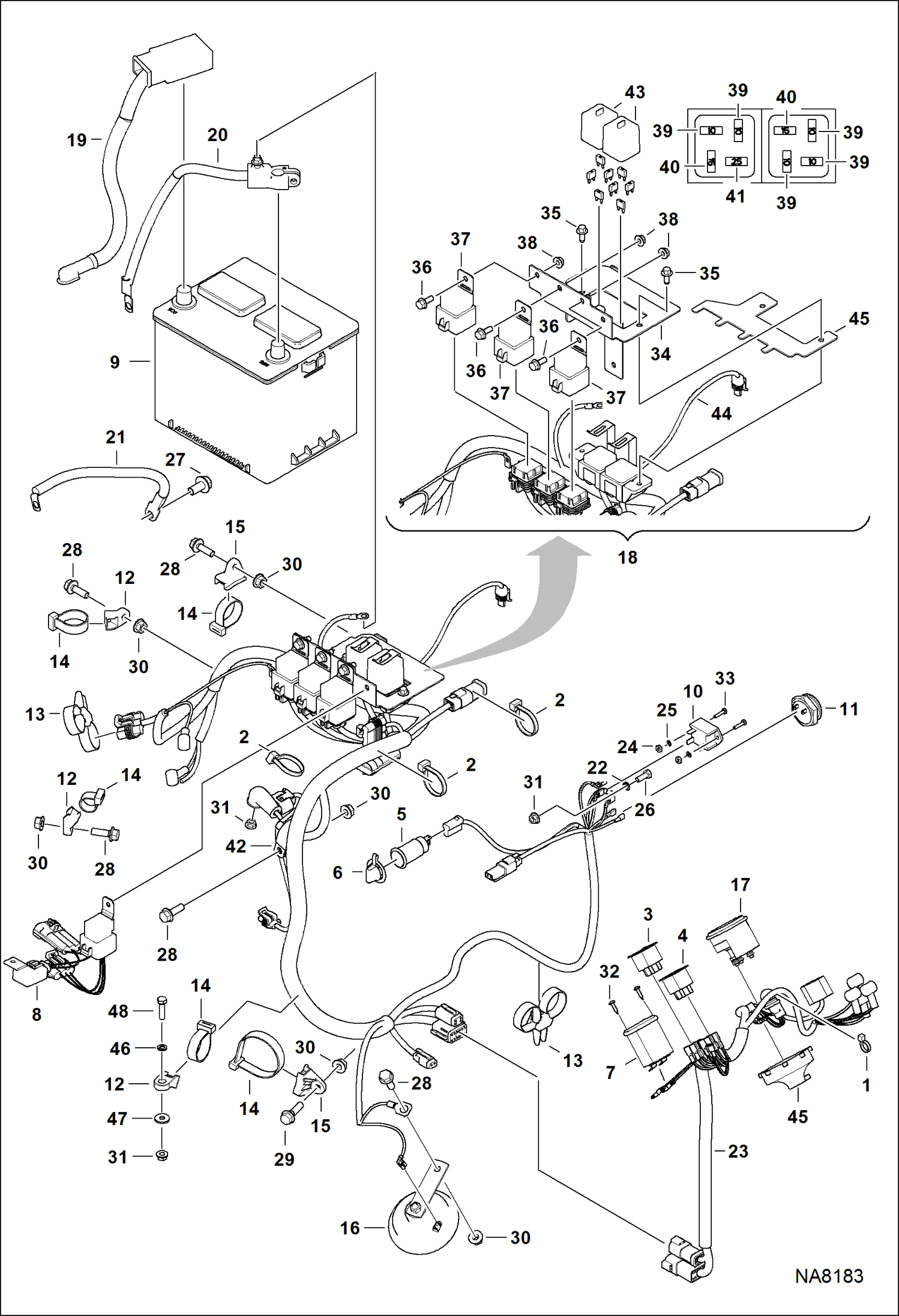

Запчасти Bobcat E08 ELECTRICAL ELECTRICAL SYSTEM

1

6610510

TIE

2

6624289

STRAP, TIE

3

6661598

LAMP

4

6661599

LAMP

5

6664223

OUTLET

6

6664224

CAP

7

6664886

HOURMETER

8

6669415

TIMER, SOLENOID

9

6670251

BATTERY, DRY 530 AMP 530A - Was 6669600 - D

10

6673122

TIMER

11

6675705

ALARM

12

6678667

MOUNT

13

6678668

STRAP, DUAL TIE

14

6678669

STRAP

15

6678818

MOUNT

16

6691276

ALARM, HORN

17

6634273

GAUGE, FUEL - A

17

7017075

GAUGE, FUEL - A

18

7141452

HARNESS,FRAME W/Ref. 35-45

19

7141457

BATTERY,CABLE POSITIVE

20

7141458

BATTERY,CABLE NEGATIVE

21

7141459

BATTERY CABLE FRAME

22

7156777

WASHER

23

7193279

HARNESS PANEL - Was 7181244 - A

24

12D6

NUT 10

25

12E6

WASHER

26

1CM616

SCREW

27

59CM1020

SCREW HX FLNG W/T8.8 - Was 29CM1020 - A

28

29CM825

BOLT

29

29CM830

CAPSCREW

30

43DM8

NUT

31

51DM6

NUT

32

58G610

SCREW PNH CRSEC TAP

33

87G610

SCREW

34

7134673

PLATE

35

6810157

BOLT

36

29CM616

BOLT

37

6670312

SWITCH, MAGNETIC

38

43DM6

NUT

39

6707620

FUSE, 10A MINI 5 10A

40

6707621

FUSE, 15A MINI 5 15A

41

6707623

FUSE, 25A MINI 5 25A

42

30H69

CLAMP, INSULATED

43

COVER, FUSE BOX NLA - Order Ref. 19

44

HARNESS, FRAME NLA - Order Ref. 19

45

6679027

CLAMP

46

15EM60

WASHER

47

17EM60

WASHER

48

1CM625

BOLT
