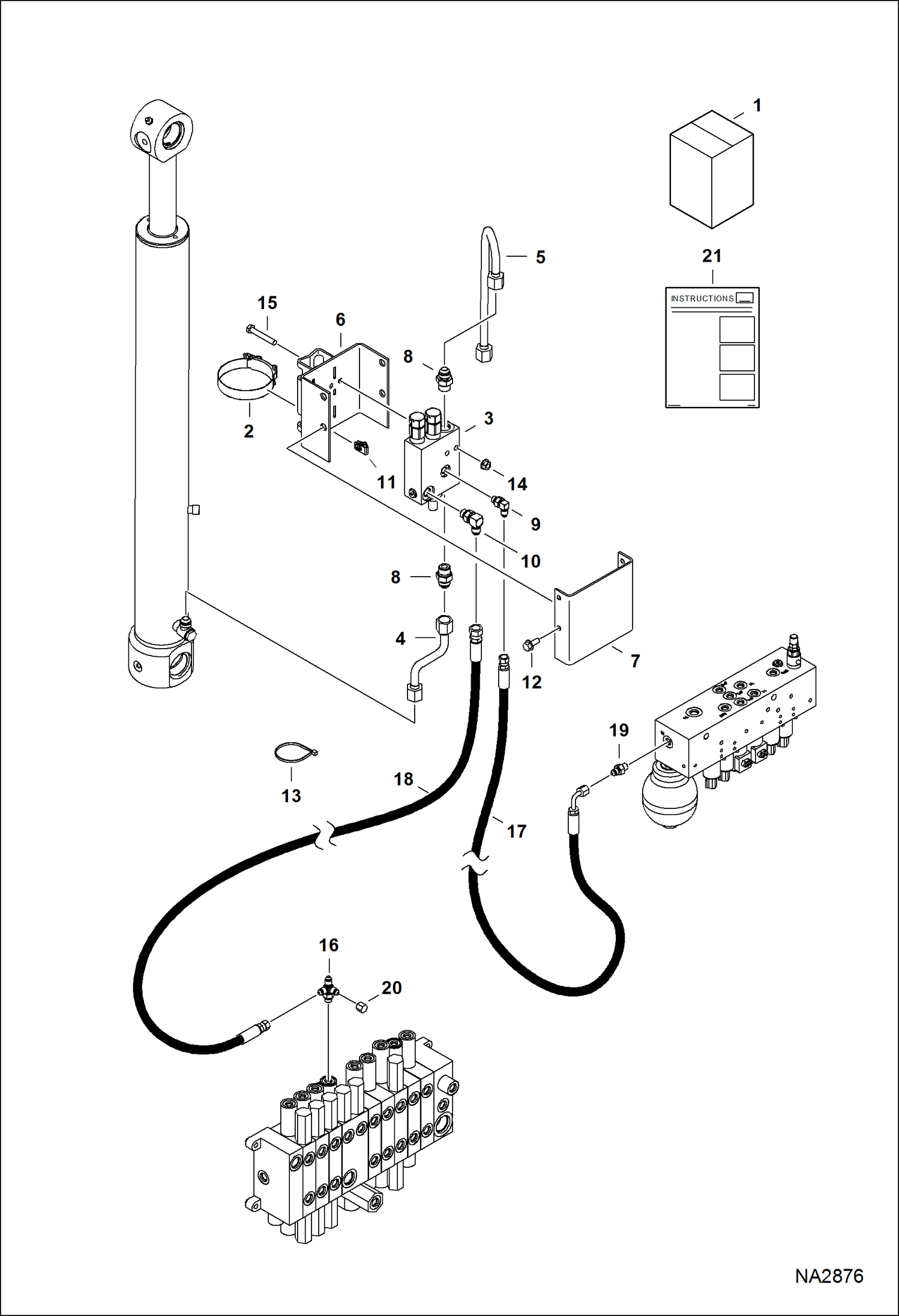

Запчасти Bobcat E32 LOAD HOLD KIT (Boom) ACCESSORIES & OPTIONS

1

7199746

KIT, LOAD HOLD BOOM Ref. 2-21

2

7009353

CLAMP, T-BOLT

3

7189078

VALVE, LOCK LOAD See Illustration LOAD HOLD OPTION/ NA2293

4

7186682

TUBELINE, HYD

5

7187293

TUBELINE, HYD

6

7186699

BRACKET, VALVE

7

7186785

COVER, VALVE

8

15KB0808

FITTING, HYD CONNECTOR

8

79K8

O RING 10

9

17KB0404

FTG HYD ELBOW 90

9

79K4

O RING 10

10

17KB0606

FITTING

10

79K6

O RING 10

11

6676169

NUT

12

29CM820

SCREW

13

6610510

TIE

14

51DM8

NUT

15

53CM855

SCREW

16

7229540

FITTING, CROSS Was 7166606 - B

16

79K4

O RING 10

17

7189161

HOSE, HYD

18

7189162

HOSE, HYD

19

15KB0404

FTG HYD S Connector

19

79K4

O RING 10

20

36K3

CAP

21

6990075

INSTRUCTIONS
