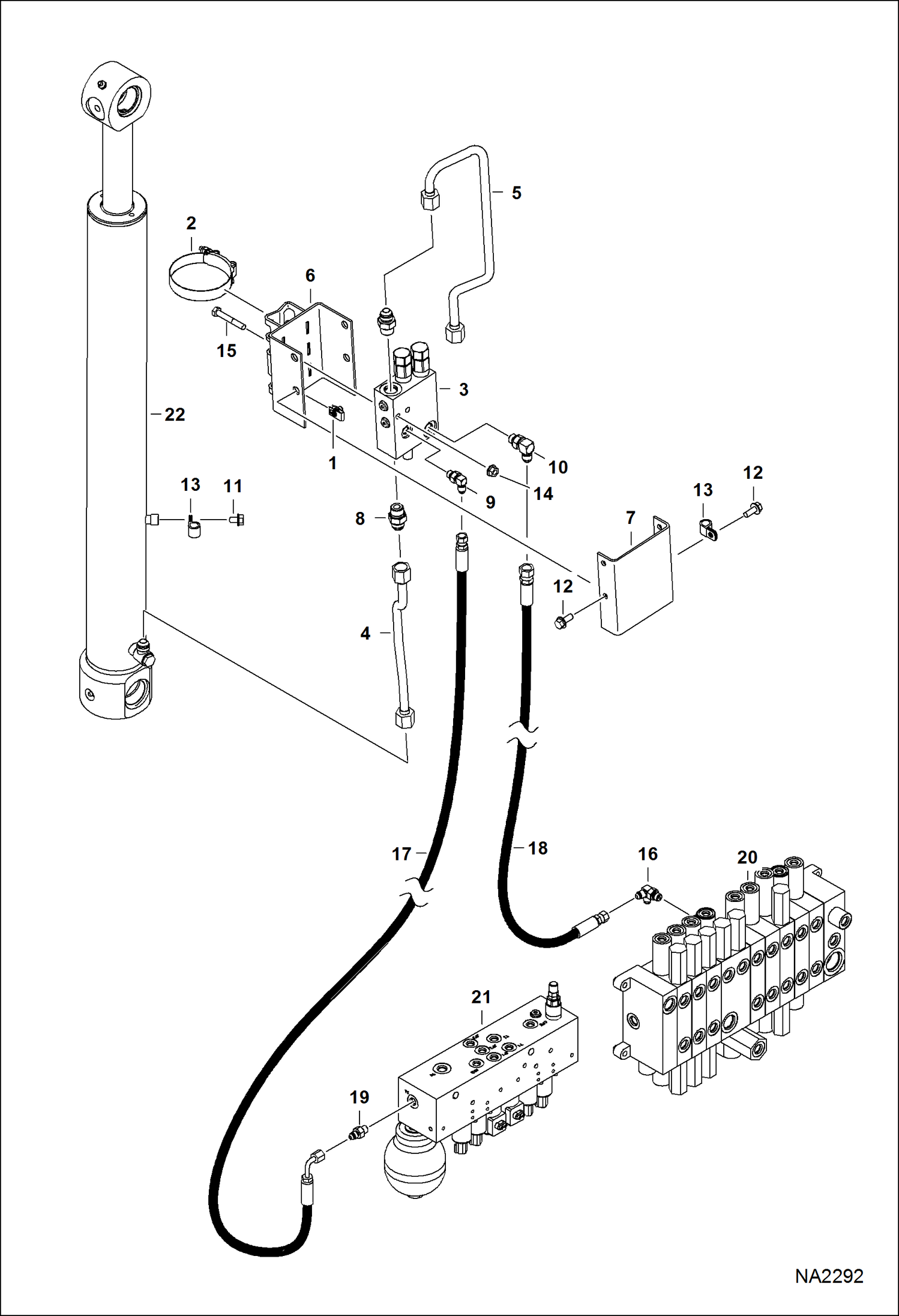

Запчасти Bobcat E32 LOAD HOLD OPTION (Boom) (S/N AC2N11001 - 13083) ACCESSORIES & OPTIONS

1

6676169

NUT

2

7009353

CLAMP, T-BOLT

3

7189078

VALVE, LOCK LOAD See Illustration LOAD HOLD OPTION/ NA2293 Was 7010060 - A

4

7162799

TUBELINE, HYD

5

7162800

TUBELINE, HYD

6

7174253

BRACKET, VALVE

7

7174256

BRACKET, VALVE

8

15KB0808

FITTING, HYD CONNECTOR

8

79K8

O RING 10

9

17KB0404

FTG HYD ELBOW 90

9

79K4

O RING 10

10

17KB0606

FITTING

10

79K6

O RING 10

11

29CM816

SCREW Was 29CM812 - B

12

29CM820

SCREW

13

30H30

CLAMP

14

51DM8

NUT

15

53CM855

SCREW

16

7166606

TEE

16

79K4

O RING 10

17

7173202

HOSE, HYD ASSY

18

7178156

HOSE, HYD ASSY

19

15KB0404

FTG HYD S Connector

19

79K4

O RING 10

20

CONTROL VALVE See Illustration HYDRAULIC CONTROL VALVE/ NA2295

21

MANIFOLD See Illustration MANIFOLD ASSY/ NA2294

22

CYLINDER, BOOM See Illustration BOOM CYLINDER/ NA2235
