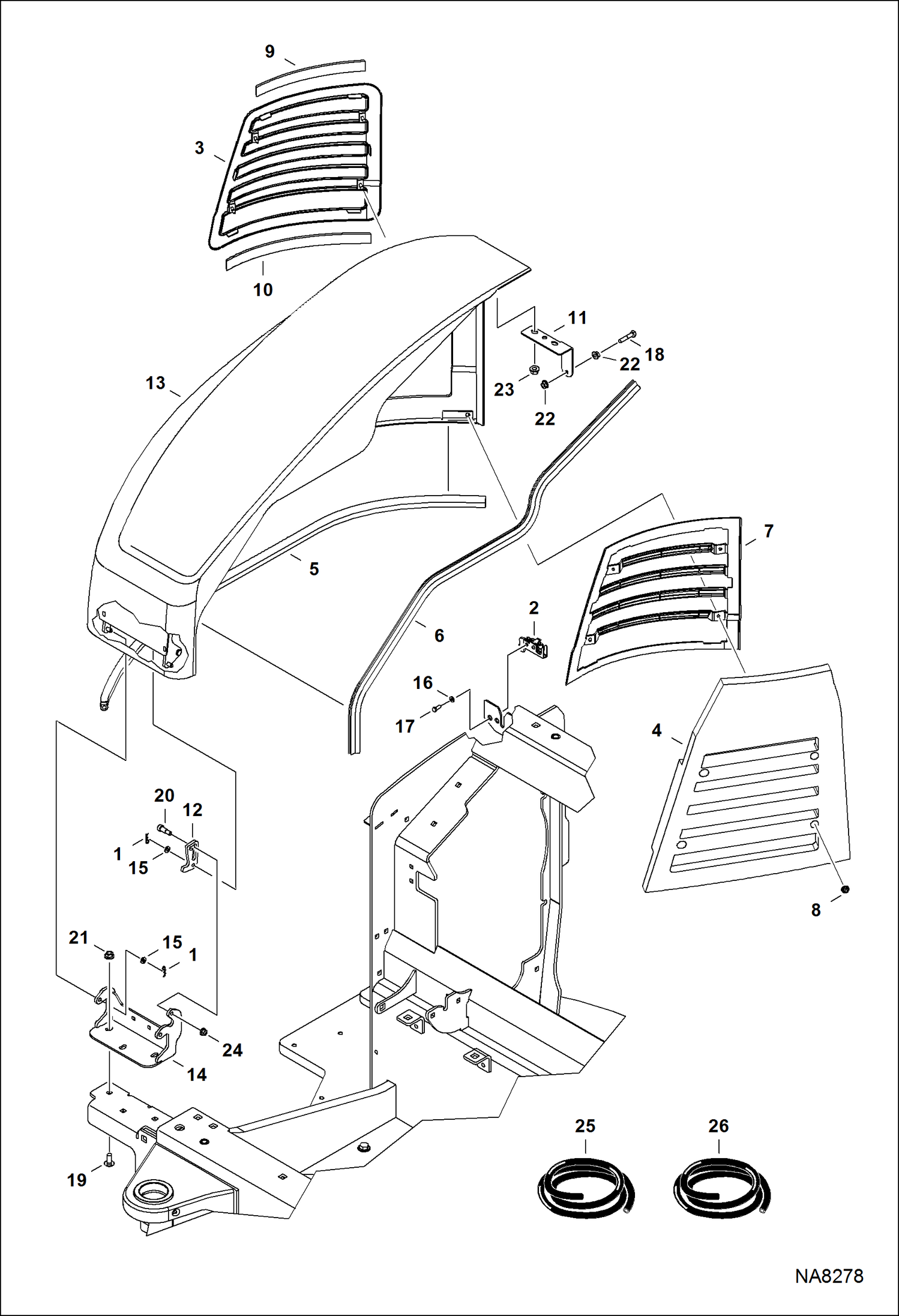

Запчасти Bobcat E32 RH COVER (W/ Bracket Hold Open) MAIN FRAME

1

6513495

COTTER PIN

2

7017782

LATCH, COVER

3

7148282

SCREEN, OUTER

4

7168805

INSULATION, GRILL EMEA only

5

SEAL, BULB NLA - EMEA only - 1294 mm (50.94'') long - Order Ref. 25

6

SEAL, BULB NLA - 1213 mm (47.75'') long - Order Ref. 26

7

7171223

SCREEN, INNER

8

7173153

NUT

9

7184201

TAPE

10

7184202

TAPE

11

7215932

MOUNT, STRIKER

12

7225801

BRACKET, HOLDING

13

7226790

COVER, RH

14

7226791

HINGE, COVER

15

15EM80

WASHER

16

18EM613

WASHER

17

1CM616

SCREW

18

1CM840

BOLT

19

28CM1025

BOLT

20

38C610

BOLT

21

43DM10

NUT

22

43DM8

NUT

23

51DM10

NUT

24

97D5

NUT

25

7170493

SEAL, BULK, BULB BULK/FT bulk - sold per foot

26

7160901

SEAL, BULB bulk - sold per foot
