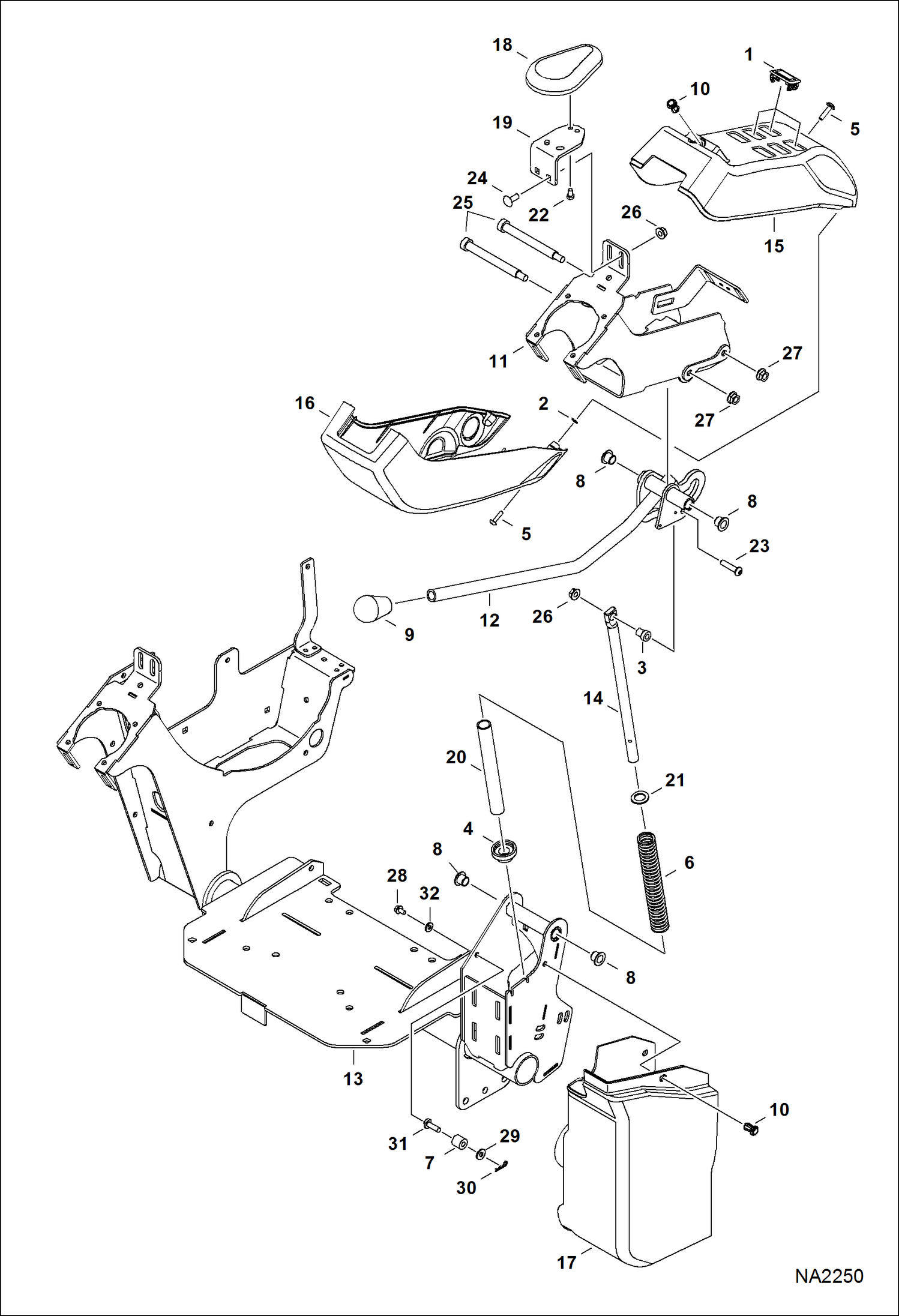

Запчасти Bobcat E32 CONTROL CONSOLE (LH) (S/N A94H11001 - 16999, AC2N11001 - 14999) CONTROLS

1

6665314

PLUG

2

6675212

RETAINER

3

6808749

BUSHING

4

6810456

BUSHING

5

6816193

SCREW

6

7003497

SPRING, COMPRESSION

7

7003498

BEARING, ROLLER

8

7003499

BUSHING

9

7154041

KNOB

10

7160383

RIVET, BIRD CAGE

11

7164042

CONSOLE, JOYSTICK

12

7164046

HANDLE, OPERATING

12

7199664

HANDLE, OPERATING

13

CONTROLLER, JOYSTICK ASSY NLA - Order 7199668 controller assy and Ref. 12 (7199664 handle) - Was 7164872 - A

13

7199668

CONTROLLER, JOYSTICK ASSY

14

7165097

SHAFT

15

7165562

COVER, LH

16

7165563

COVER, LH

17

7165564

COVER, LH

18

7169719

SUPPORT

19

7169720

MOUNT, ARMREST

20

7171264

SPACER, TUBE

21

15EM160

WASHERS

22

1CM612

BOLT Was 1CM610 - B

23

27CM835

SCREW

24

28CM820

BOLT

25

38C868

SCREW

26

51DM8

NUT

27

53D6

NUT

28

59CM812

SCREW HX FLNG W/T8.8
