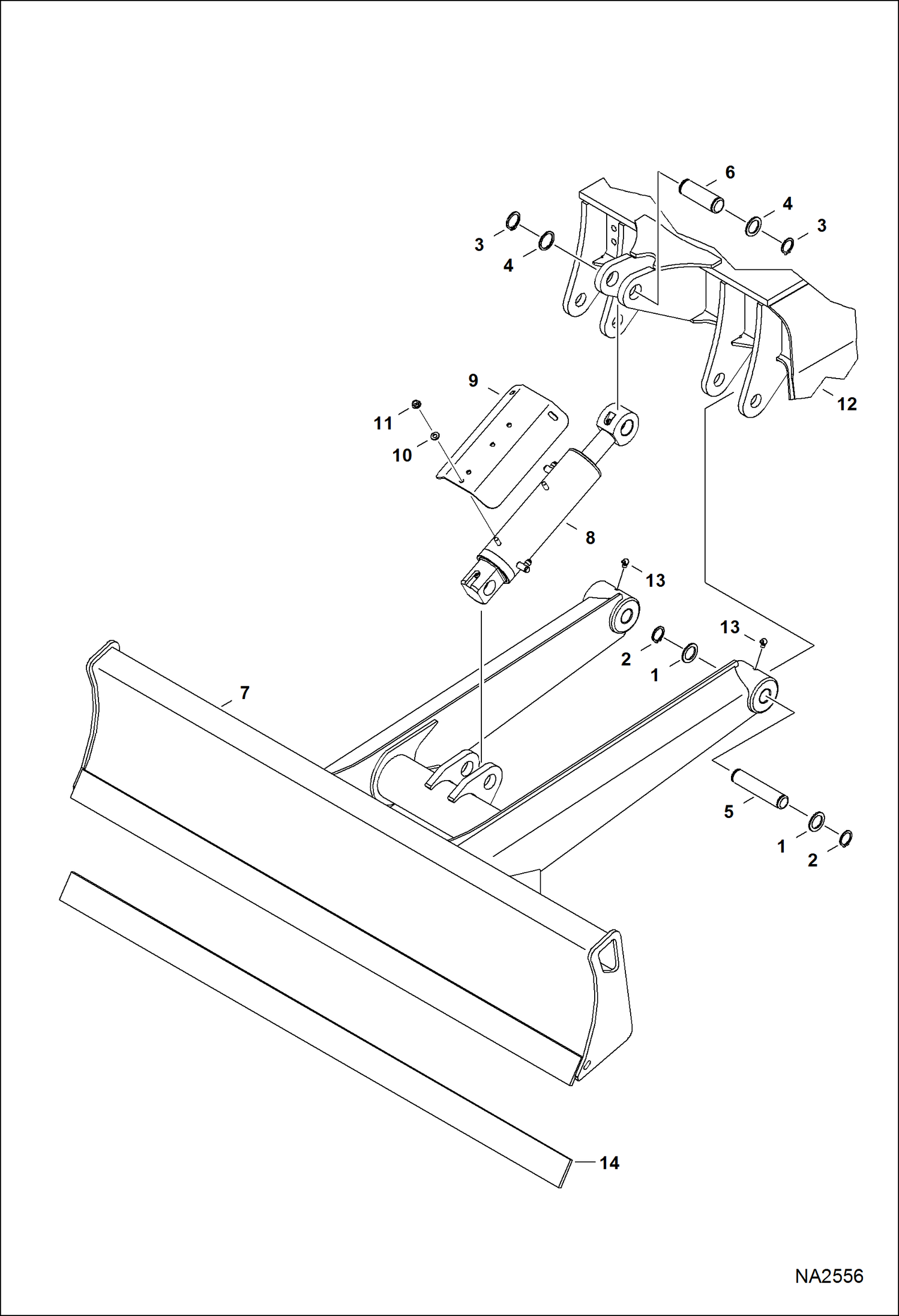

Запчасти Bobcat E42 BLADE WORK EQUIPMENT

1

6534111

WASHER

2

6534154

RING

3

6665618

RING

4

6666549

WASHER

5

7142311

PIN, PIVOT

6

7142313

PIN, PIVOT

7

7142550

BLADE, EXCAVATOR W/A W/Ref. 14

8

CYLINDER, BLADE See Illustration BLADE CYLINDER/ PE3923

9

7188746

SHIELD, CYL

10

25E17

WASHER 5

11

43DM10

NUT

12

UNDERCARRIAGE See Illustration UNDERCARRIAGE/ NA2537

13

12H15

FITTING, GREASE 5

14

EDGE, CUTTING WELD ON 68.15'' See BTI417

14

7230283

EDGE, CUTTING BOLT-ON 68'' Was 7142263 - A
