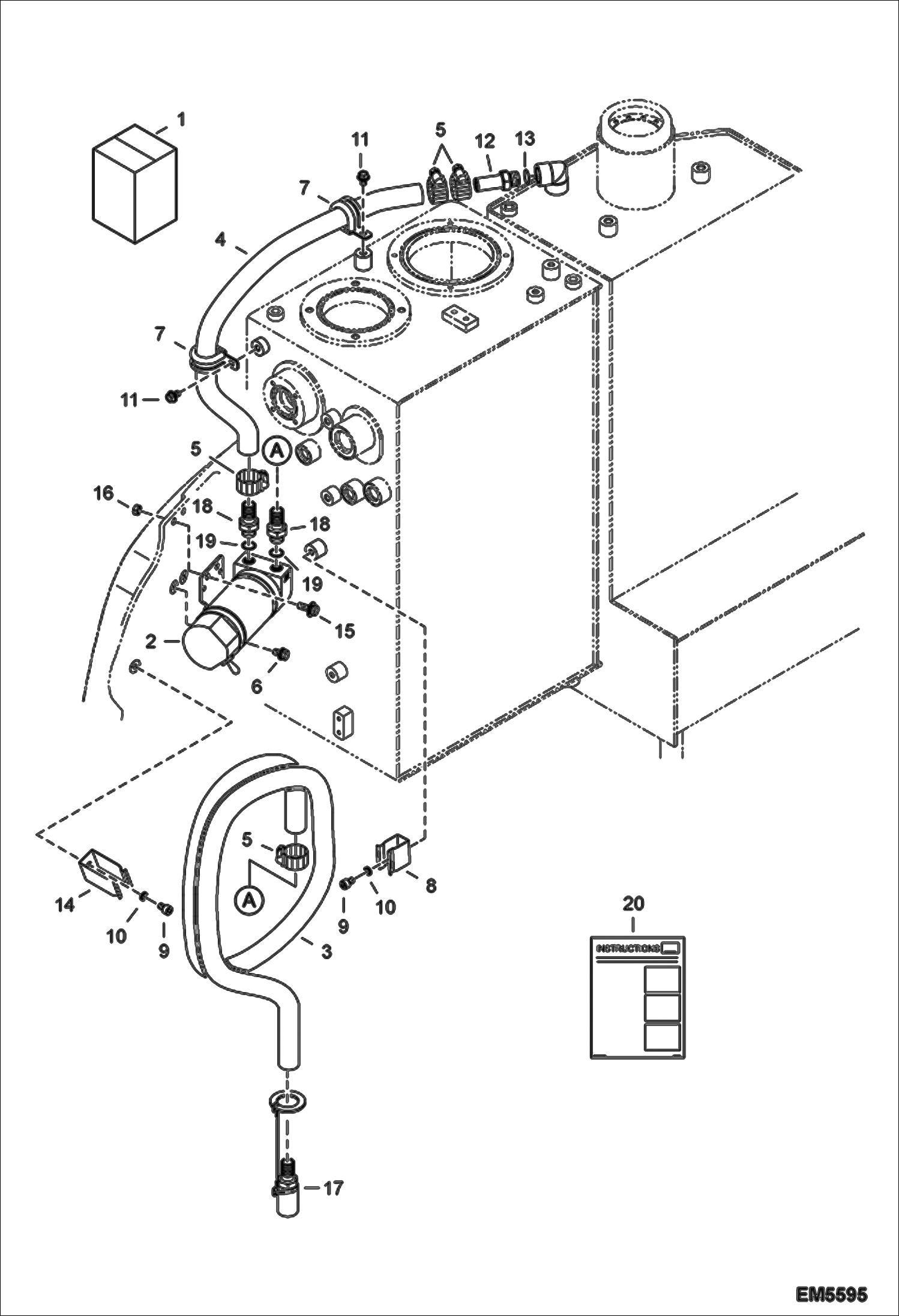

Запчасти Bobcat E60 FUEL TRANSFER PUMP KIT (US) ACCESSORIES & OPTIONS

1

7178233

KIT, PUMP TRANSFER W/Ref. 2-29

2

7006285

PUMP FUEL FILLER See Illustration FUEL TRANSFER PUMP & CHECK VALVE/ EM5596 W/Ref. 18-19

3

7008266

HOSE, FUEL

4

7006761

HOSE FUEL

5

7008303

CLAMP, HOSE

6

7005135

BOLT

7

7003897

CLIP

8

7006747

CLAMP

9

7007732

BOLT SOCKET

10

7007842

WASHER SPRING

11

7005629

BOLT

12

7004748

ADAPTER

13

7007911

O-RING

14

7006766

CLAMP

15

7005137

BOLT M8X1.25X25

16

7007796

NUT

17

7008276

VALVE, CHECK See Illustration FUEL TRANSFER PUMP & CHECK VALVE/ EM5596

18

7004763

ADAPTER

19

7007971

SEAL RING

20

6987456

INSTRUCTIONS
