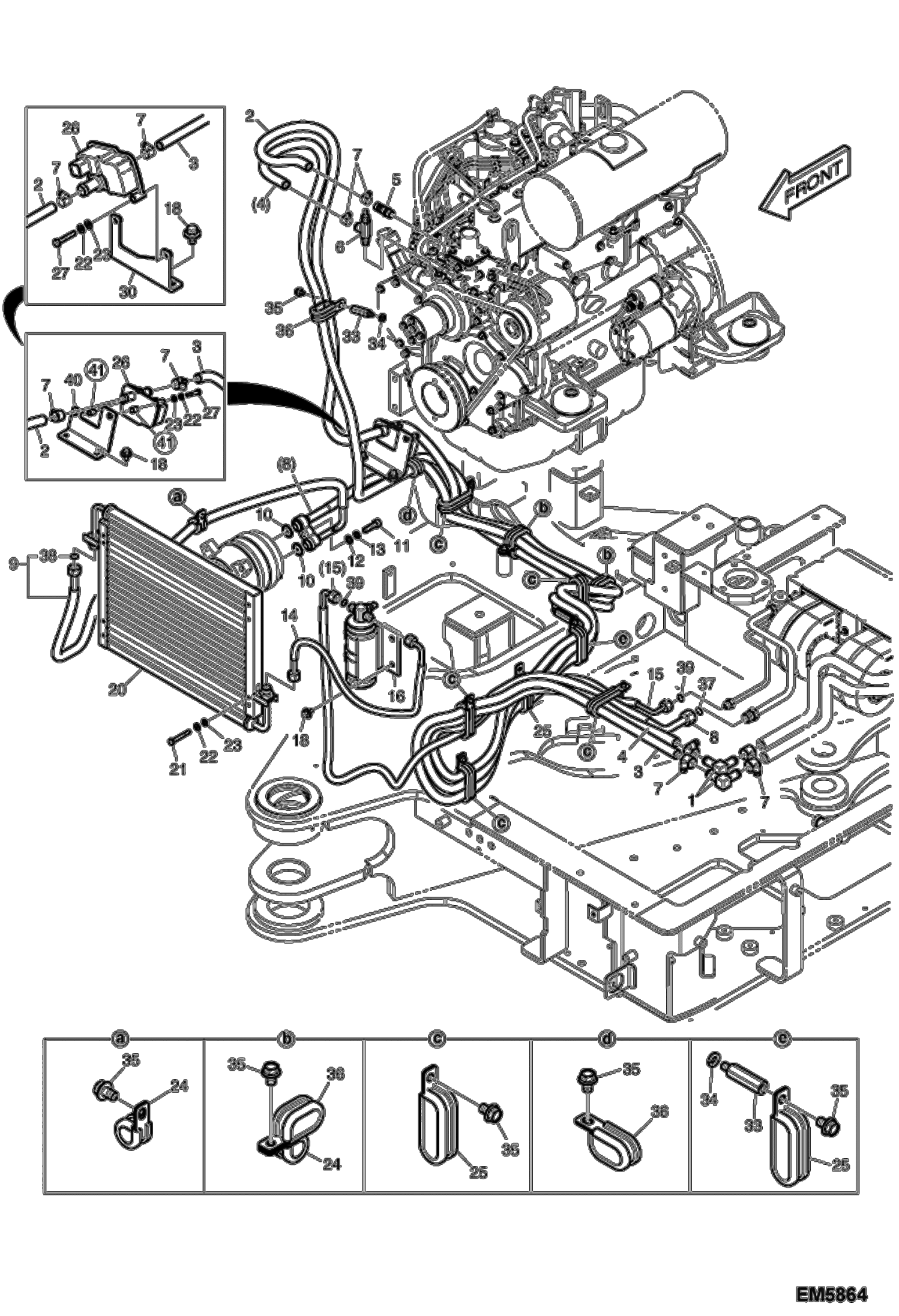

Запчасти Bobcat E60 AIR CONDITIONING (Frame) MAIN FRAME

1

7006600

COUPLER, JOINT HOSE

2

7004791

HOSE

3

7004790

HOSE

4

7004792

HOSE, RUBBER

5

7005556

ADAPTER

6

7005808

VALVE

7

7007975

CLAMP

8

7006467

HOSE SUCTION W/Ref. 37

9

7006468

HOSE DISCHARGE W/Ref. 38

10

7004664

WASHER, SEAL

11

7007750

BOLT, SOCKET M10X1.5X35

12

7013265

WASHER, PLAIN Was 7007825 - A

13

7007843

WASHER, SPRING

14

7004797

HOSE LIQUID 1

15

7006651

HOSE LIQUID 2 W/Ref. 39

16

7004841

RECEIVER, DRIER

18

7005129

BOLT, SET

20

7004891

CONDENSER, ASSY

21

7007652

BOLT

22

7007833

WASHER, SPRING

23

7007814

WASHER

24

7003895

CLIP

25

7003907

CLIP

26

7012255

VALVE, WATER HEATER Was 7006247 - A

27

7007611

BOLT

30

7006466

BRACKET

30

7012271

BRACKET;WATER VALVE

33

7004554

BOLT STUD

33

7004554

BOLT STUD

34

7007834

WASHER SPRING

34

7007834

WASHER SPRING

35

7005629

BOLT

35

7005629

BOLT

36

7003905

CLIP

37

7006239

O-RING

38

7005656

O-RING

39

7006238

O-RING

40

7012545

BRACKET;WATER VALVE

41

7021822

SPACER, TUBE
