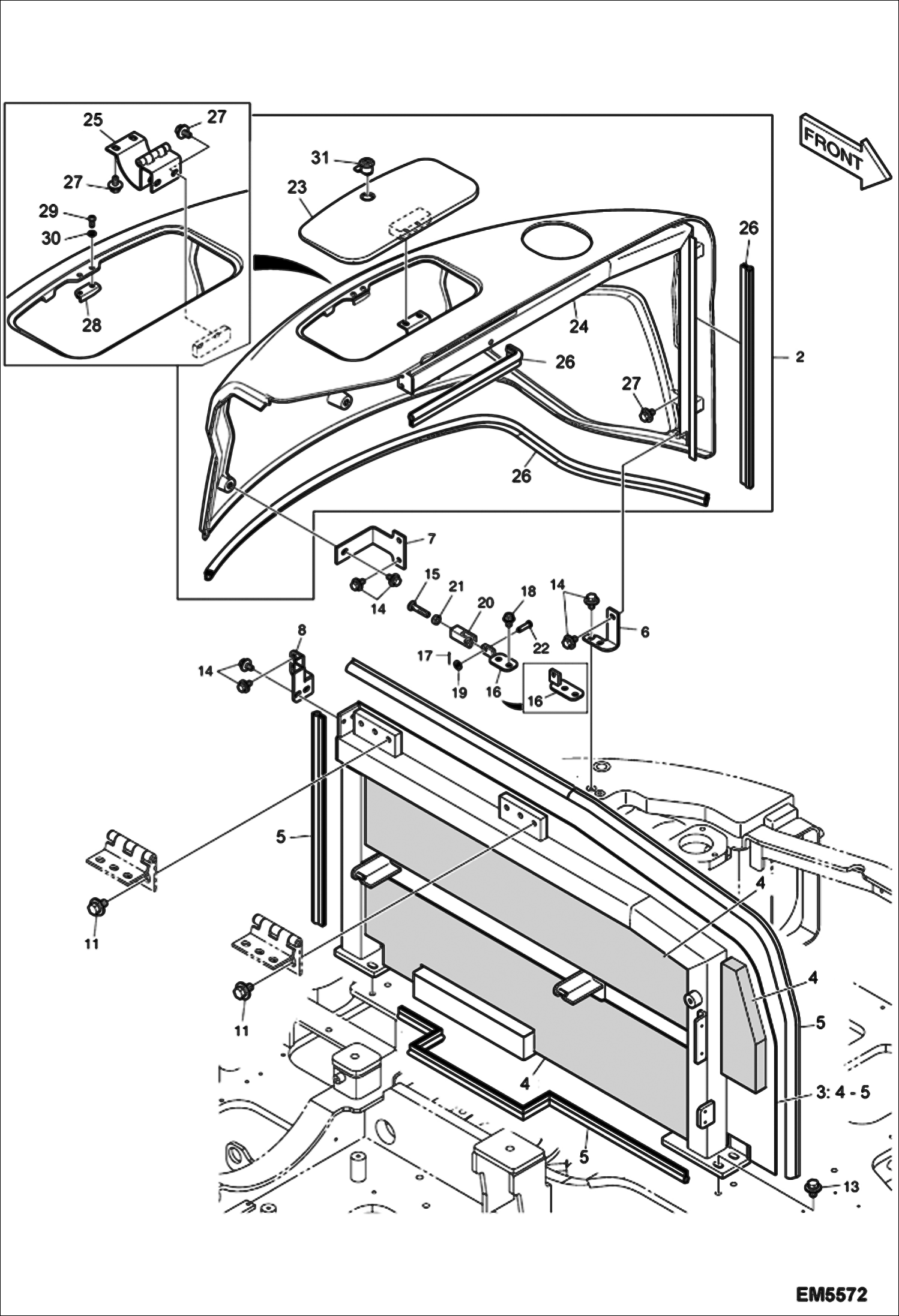

Запчасти Bobcat E60 TAILGATE MAIN FRAME

2

7008235

BONNET W/Ref. 23-31

3

7012230

SEAL W/Ref. 4-5 Was 7006619 - A

3

7012751

SUPPORT ASSY W/Ref. 4-5

4

7006659

FOAM

5

7013253

PAD Was 7006660 - C

6

7013254

BRACKET Was 7008226 - C

7

7013255

BRACKET;CONNECTOR Was 7008237 - C

8

7013256

BRACKET, CONNECTOR Was 7008238 - C

11

7005123

BOLT SET

13

7005122

BOLT SET

14

7005129

BOLT, SET

15

7006692

STRAP

16

7013243

BRACKET Was 7006693 - B

17

7007852

PIN SPLIT

18

7005629

BOLT

19

7007811

WASHER PLAIN

20

7004599

YOKE

21

7007796

NUT

22

7004576

PIN

23

7006618

COVER ROOF

24

7006617

SUPPORT

25

7006624

HINGE

26

7006625

PAD

27

7005129

BOLT, SET

28

7006689

PLATE

29

7007786

BOLT

30

7007833

WASHER, SPRING

31

7006690

KEY, LOCK
