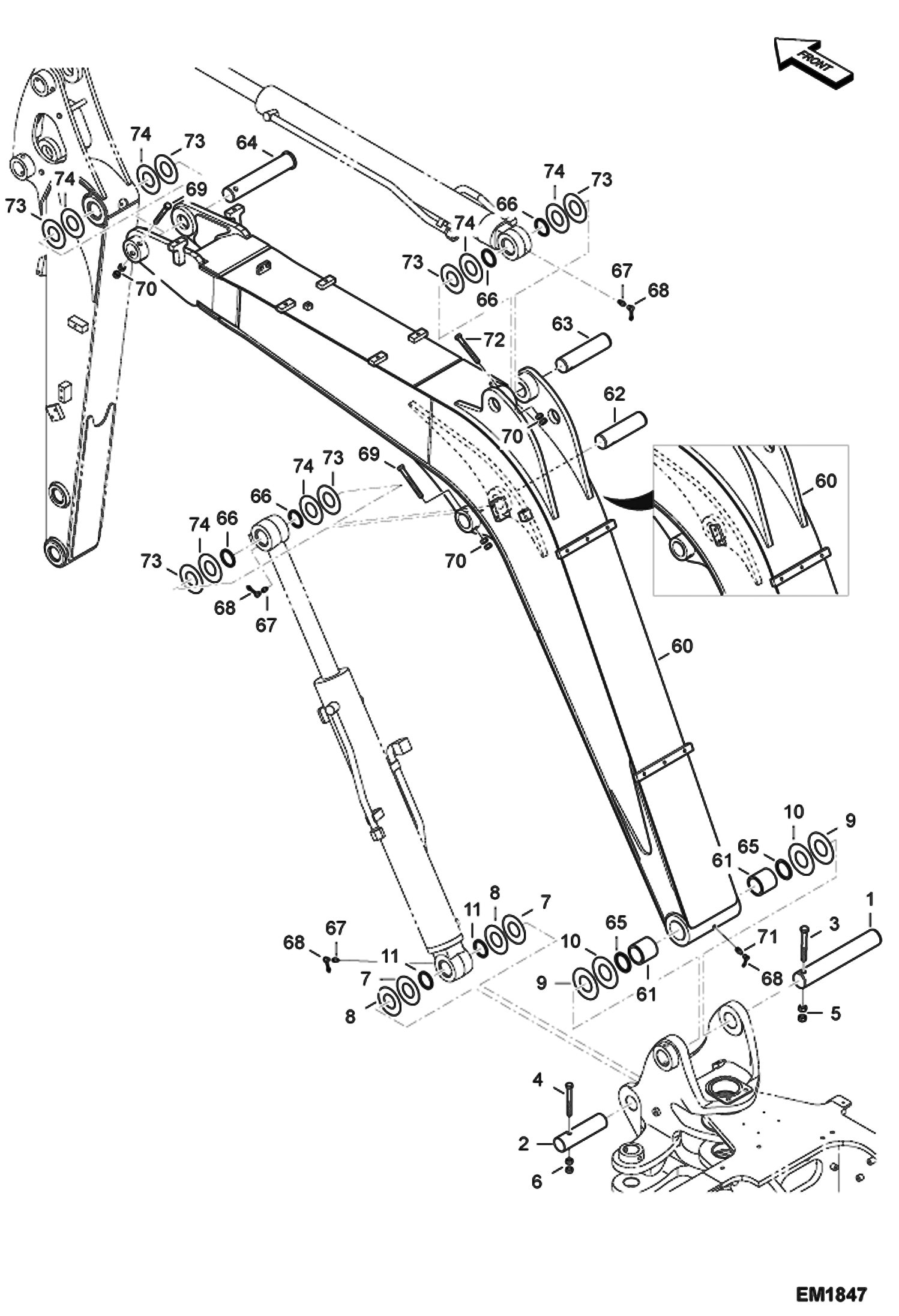

Запчасти Bobcat E60 BOOM WORK EQUIPMENT

1

PIN Was 7006707 - A

1

7022884

PIN

2

PIN, BOOM CYL HEAD Was 7006573 - A

2

7022913

PIN

3

7007700

BOLT

4

7007693

BOLT

5

7007800

NUT M14

6

7007799

NUT

7

7005610

SHIM 1.0T 1,0 mm

8

7005611

SHIM 1.6T 1,6 mm

9

7005608

SHIM

10

7005609

SHIM

11

7004638

SEAL DUST

60

7005720

BOOM MACH 2.9M machined - W/Ref. 61

60

7022914

BOOM machined

61

7005746

BUSHING

62

PIN Was 7004573 - A

62

7022885

PIN

63

PIN Was 7006171 - A

63

7022915

PIN

64

PIN Was 7004574 - A

64

7022916

PIN

65

7004639

SEAL DUST Was 7004642 - B

66

7004638

SEAL DUST

67

6694227

FITTING, GREASE Was 7010247 - C

68

7003923

CAP GREASE NIPPLE

69

7007692

BOLT

70

7007799

NUT

71

7002206

FITTING, GREASE Was 7007897 - C

72

7007693

BOLT

73

7005606

SHIM 1.0T 1,0 mm

74

7005607

SHIM 1.6T 1,6 mm
