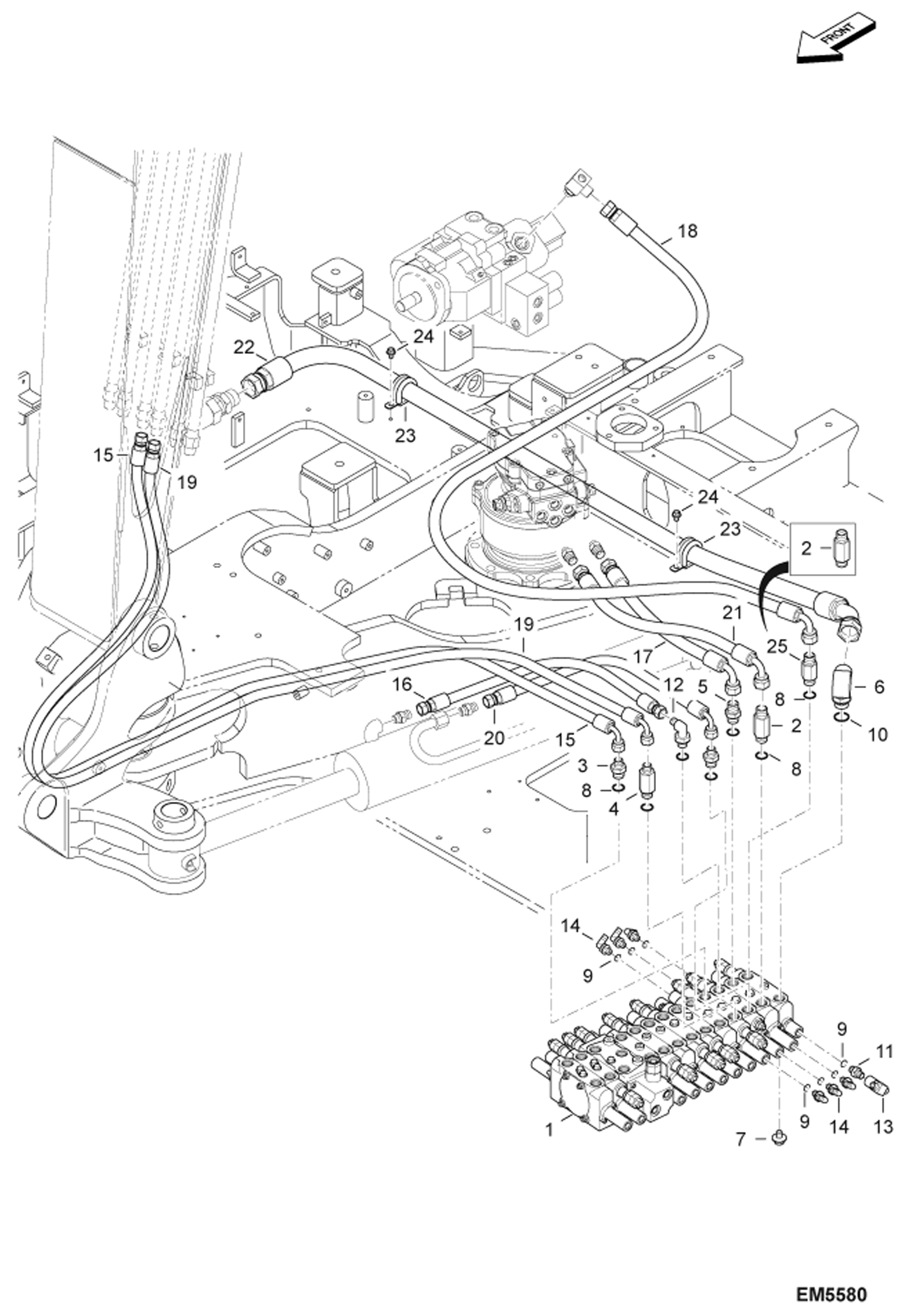

Запчасти Bobcat E60 HYDRAULIC CIRCUITRY (Upper/Slew) (W/2nd Auxiliary/Rotation) HYDRAULIC SYSTEM

1

7008219

VALVE, CONTROL ROTATING See Illustration CONTROL VALVE/ EM1846

2

7004703

ADAPTER

2

7004703

ADAPTER

3

7004685

ADAPTER

4

7004701

ADAPTER

5

7004699

ADAPTER

6

7004724

ELBOW

7

7005119

BOLT SET

8

7007911

O-RING

9

7007906

O-RING

10

7007916

O-RING

11

7004683

ADAPTER

12

7004726

ELBOW

13

7004768

TEE

14

7004713

ELBOW

15

HOSE, HYD NLA Was 7005461 - A

15

7010280

HOSE

15

7019196

HOSE HYDRAULIC ASSY

16

7005158

HOSE

17

7005389

HOSE

18

HOSE, HYD NLA Was 7005196 - A

18

7019192

HOSE HYDRAULIC ASSY

19

HOSE, HYD NLA Was 7005440 - A

19

7010281

HOSE

19

7019197

HOSE HYDRAULIC ASSY

20

7008174

HOSE

21

HOSE, HYD NLA Was 7005415 - A

21

7012240

HOSE

22

7005169

HOSE

23

7003898

CLIP

24

7005629

BOLT

25

7005545

ADAPTER
